This time-sensitive document was prepared for the client listed on the Cover Page of this report. Any reproduction, use, or resale of this document by individuals other than those listed on the report cover page, or their assigns, is not supported by the inspector and company.
Comment Key or Definitions
The following definitions of comment descriptions represent this inspection report. All comments by the inspector should be considered before purchasing this RV coach. Any recommendations by the inspector to service or replace suggest a second opinion or further inspection by a qualified RV technician. All costs associated with further inspection fees and service or replacement of item, component, or unit should be considered before you purchase.
Acceptable (A) = A visually observed item, component, or unit, and if no other comments were made, it appeared to be functioning as intended, allowing for normal wear and tear.
Fair (F)= The item or its components do not need immediate service, but wear and tear exist, and the item is not in optimum condition. Some may elect to service or replace this item now, while others may wait.
Poor (P) = The item, component, or unit is not functioning as intended, service or replacement is recommended, or needs further inspection by a qualified RV technician.
Not Inspected (NI)= The item, unit, or component was not inspected, and no representations were made as to whether or not it was functioning as intended. A statement of reason for not inspecting may be made.
Not Present (NP) = This item, component, or unit is not in this RV.
NRVIA Standards of Practice
Purpose, Scope, and General Statements
1 – The purpose of the Standards of Practice is to establish a uniform standard for the company's RV Inspector to inspect and report objectively the conditions of a Recreational Vehicle and its components.
2 – The Standards describe the components, and systems included in an RV Inspection.
3 – The Standards apply to motorized and towable types of RVs as defined by the RV Industry.
4 – The Standards apply to a visual inspection of those areas, components, and systems that are readily accessible to determine at the time of inspection that they are performing their intended function without regard to life expectancy.
5 – The RV inspection aims to identify visible and operational defects as permitted by the current conditions that, in the judgment of the RV Inspector, will adversely affect the function or integrity of the Recreational Vehicle's items, components, and systems.
6 – RV Inspections performed under the Standards of Practice are visual and rely upon the RV inspector's opinion, judgment, education, and experience. They are not intended to be technically exhaustive.
7 – RV Inspections shall be performed in a time period sufficient to allow compliance with the provisions of the NRVIA Standards of Practice.
8 – RV Inspections performed under the Standards shall not be construed as being a compliance inspection of any code, governmental regulation, or manufacturer’s installation instructions or procedures. If a law, statute, or ordinance prohibits a procedure recommended in the Standards, the RV Inspector is relieved of the obligation to adhere to the prohibited part of the Standards.
9 – RV Inspections performed under the Standards are not an expressed, implied warranty or guarantee of adequacy, performance, or useful life of any RV, any of its components or systems.
10 – Only those items specifically listed on the RV Inspection Report will be included in the RV Inspectors evaluation.
11 – The RV Inspector shall report any system or component included in the Standards of Practice that were present during the RV Inspection but were NOT inspected and provide the reason they were not inspected.
General Limitations and Exclusions
1 – RV Inspections performed under the company's Standards of Practice exclude any items concealed or not readily accessible to the RV Inspector. The RV Inspector is not required to move furniture or personal or stored items. Lifting floor covering, and accessing interior walls and ceilings which could damage or destroy the components or systems being evaluated is not part of the RV Inspection.
2 – The determination of the presence of damage caused by insects or water is only to be evaluated by observation with an opinion being rendered by the RV Inspector that is to make the client aware of the issue.
3 – Excluded from the Standards of Practice is the determination of indoor air quality of the RV and its consequence of physical damage, toxicity, odors, waste products, and noxiousness.
4 – The RV Inspection and report are opinions only that are based upon the visual observation of the existing conditions of the RV at the time of the RV Inspection. The report is not intended to be construed as a guarantee, warranty, or any form of insurance. The RV Inspector will not be responsible for any service, repairs, or replacement concerning the RV or its contents.
5 – The RV Inspector is not required to enter any premises that visibly show a threat to the safety of the RV Inspector or others nor inspect any area or component that poses a danger to the RV Inspector or others.
6 – The NRVIA Certified RV Inspector will inspect and report on the RV items listed in this report and their condition during the RV Inspection. Any additional items of inspection will be dependent upon any agreements that are made between the client and the RV Inspector.
How to Read This Report
Getting the Information to You
This report is designed to deliver important and technical information in a way that is easy for anyone to access and understand. If you are in a hurry, you can take a quick look at our "Summary Page” and quickly get critical information for important decision-making. However, we strongly recommend that you take the time to read the full Report, which includes digital photographs, captions, diagrams, descriptions, videos, and hot links to additional information.
The best way to get the layers of information that are presented in this report is to read your report online, which will allow you to expand your learning about your RV. You will notice some words or series of words highlighted in blue and underlined – clicking on these will provide you with a link to additional information.
This report can also be printed on paper or as a PDF document.
Chapters and Sections
This report is divided into chapters that parcel the RV coach into logical inspection components. Each chapter is broken into sections that relate to a specific system or component of the RV coach. You can navigate between chapters with the click of a button on the left-side margin.
Most sections will contain some descriptive information in black font. Observation narrative, done in colored boxes, will be included if a system or component is found to be significantly deficient in some way or if we wish to provide helpful additional information about the system or the scope of our inspection. If a system or component of the RV was deemed to be in satisfactory or serviceable condition, there may be no narrative observation comments in that section and it may simply say “tested,” or “inspected.”
Observation Labels
All narrative observations are colored, numbered, and labeled to help you find, refer to, and understand the severity of the observation. Observation colors and labels used in this report are:
- Major Issue:The following items indicate that the condition is a MAJOR ISSUE. It impacts longevity of the vehicle, can be a possible costly repair and/or warrants immediate repair. It is recommended that a qualified RV technician or appropriate service person investigate further and correct as needed.
- Minor Issue:The following items indicate that the condition is a MINOR ISSUE. It does not impact the operation or use of the vehicle and can possibly be repaired later. It is recommended that a qualified RV technician or appropriate service person investigate further and correct as needed.
- Notice / Comment:Refers to aside information and /or any comments elaborating on descriptions of systems in the RV or limitations to the RV inspection.
- Description:Detailed description of various aspects of the coach noted during the inspection.
Summary Page
The Summary Page is designed as a bulleted overview of all the observations noted during the inspection. This helpful overview is not a substitute for reading the entire inspection report. The entire report must be read to get a complete understanding of this inspection report as the Summary Page does not include photographs or photo captions.
Summary
Major Issues
- RE-1 Roof Exterior - Roof:
The inspector observed gaps in the roof sealant at the identified locations. It is recommended that a qualified RV technician service this to prevent future water intrusion.
- Solar Junction Box Sealant Gap
- Curbside Front Side Drain

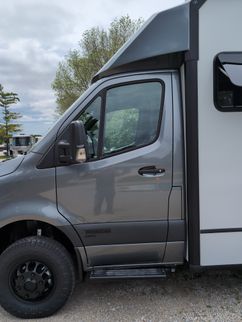

- MWCA-1 MH-Front Windshield and Cab Area - Windshield and Cab Area:

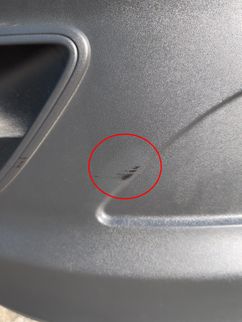

The inspector observed an abrasion on the streetside of the driver's seat.

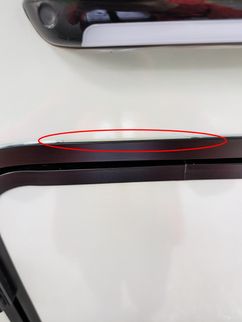

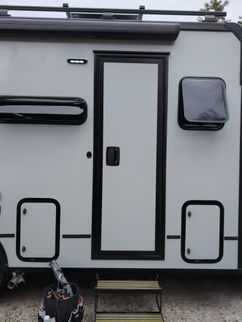

- ES-2 Exterior Sidewalls - Curbside - Sidewall:

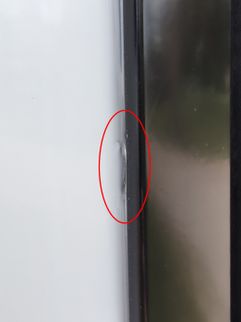

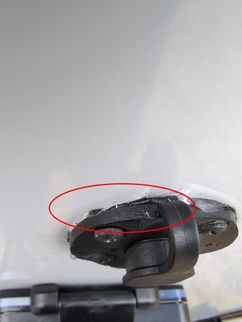

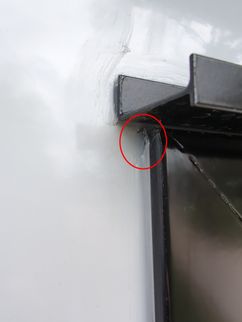

The inspector observed gaps in the sealant. It is recommended that a qualified RV technician repair the sealant in the following areas to prevent future water intrusion.
- Rear of Curbside Entrance Door Near Porch Light
- Top Rear of Entrance Door Under Drip Edge
- ES-4 Exterior Sidewalls - Streetside Sidewall:

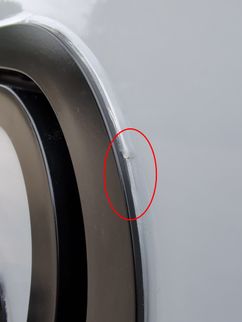

The inspector observed gaps in the sealant. It is recommended that a qualified RV technician repair the sealant in the following areas to prevent future water intrusion.
- Streetside Rear Upper Rear Corner Sealant
- Streeside Top of Solar Connector
- Streetside Top of Furnace Exhaust
- Streetside Front of Gulper Bay Door
- Streetside Above Water Bay Door

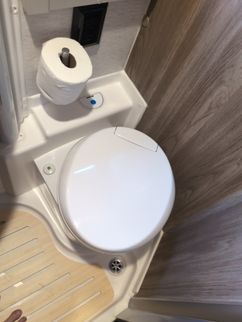

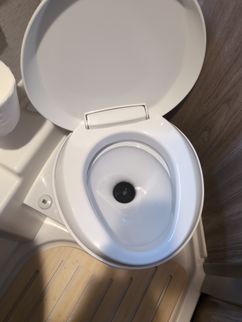

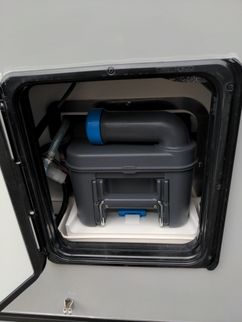

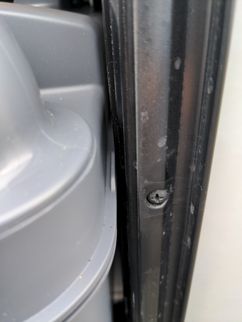

- WS-1 Water Systems - Black Water Tank:
The inspector observed that the toilet cartridge removal interferes with the rear of the door frame and installation membrane is hanging from the top.
Minor Issues

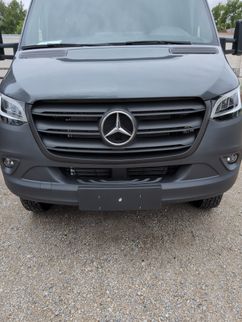

- VI-1 Vehicle Information - State License Plate:

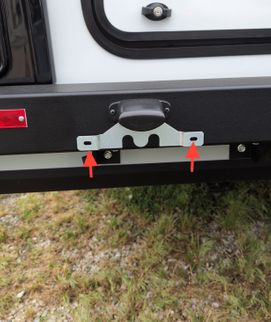

No license plate hardware was present to mount either the front or rear license plate.
- VI-2 Vehicle Information - Build Sheet:

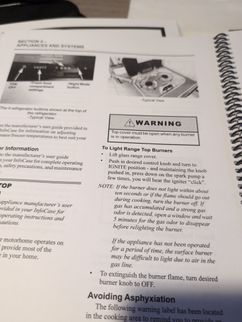

The Operator's manual appears to be for the Transit-based Ekko, not the Mercedes Ekko, as the Mercedes Ekko has an induction cooktop instead of an LP cooktop.
- ES-1 Exterior Sidewalls - Front Cap / Wall:
The inspector observed a blemish on the coach's front bumper.

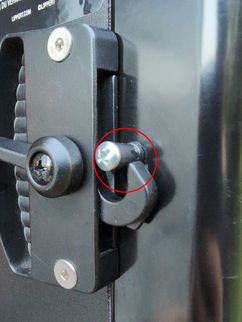

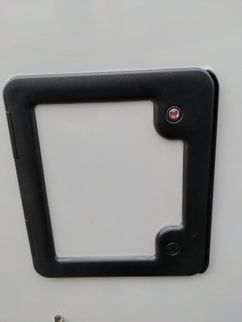

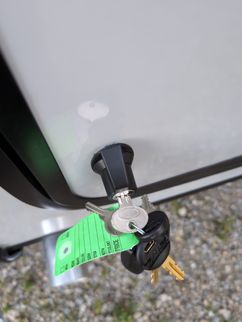

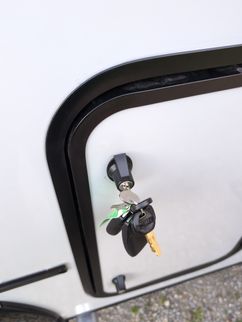

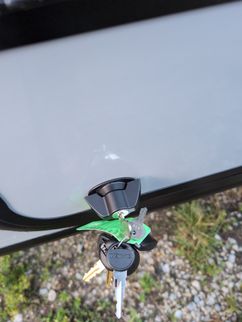

- ES-3 Exterior Sidewalls - Curbside - Sidewall:

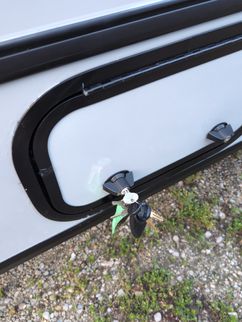

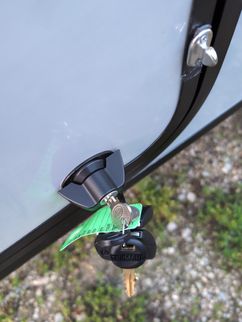

The inspector observed that many of the curbside cargo bay door locks are difficult to lock, with concern that the key is going to fatigue and break.
- Curbside Front Upper Lock
- Curbside Front Lower Lock

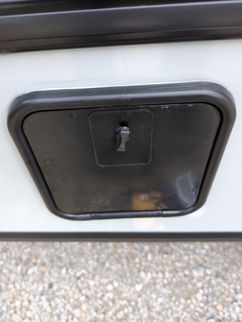

- ES-5 Exterior Sidewalls - Streetside Sidewall:

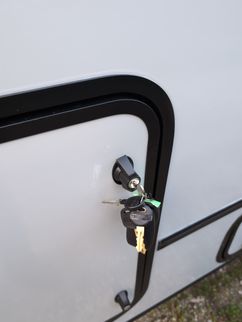

The inspector observed that many streetside cargo bay doors are challenging to lock, with concern that the key will fatigue and break.
- Upper battery door
- Front Gulper
- Rear Gulper Lock
- Streetside Rear Bay, Front Lock

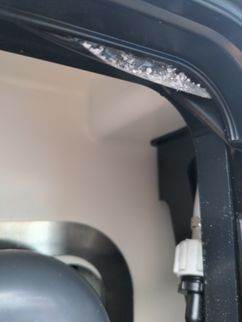

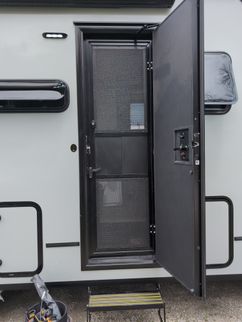

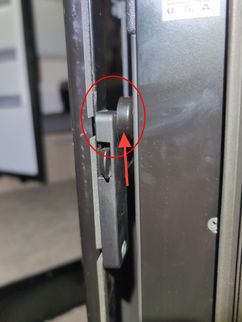

- ED-1 Entrance Doors - Door - Coach:
The inspector observed that the screen door slide panel latch is not operational.
- ED-2 Entrance Doors - Door - Coach:
The inspector observed damage to the entrance door strike plate. A photo not available as this issue was identified and repaired in the shop (no photo policy).
- ED-3 Entrance Doors - Door - Coach:
The inspector observed that the magnetic latch is loose and does not hold to the screen door frame.

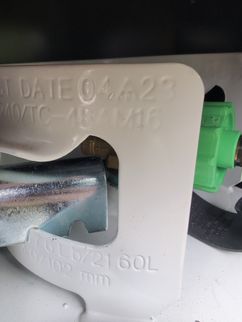

- LSDE-1 LP System, Detector(s), Extinguisher(s) - DOT Tanks:

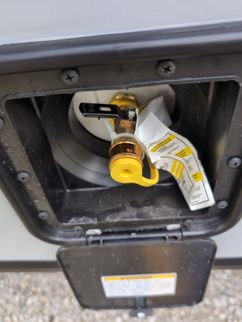

The inspector observed that the tanks had a wrap which states caution remove the sleeve before placing any propane in this cylinder.

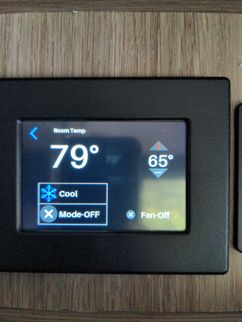

- AC-1 Air Conditioners - Air Conditioners - Center:

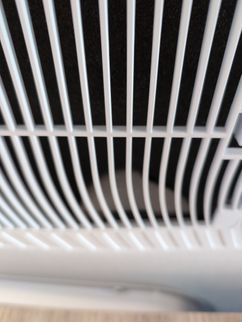

The inspector observed that the filter does not stay in the holder.

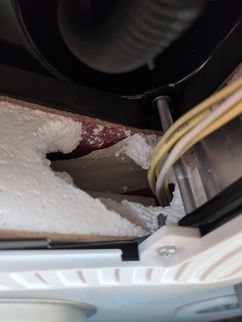

- AC-2 Air Conditioners - Air Conditioners - Center:
The inspector observed that where the wires come into the AC unit allows air to bypass which will reduce efficiency.

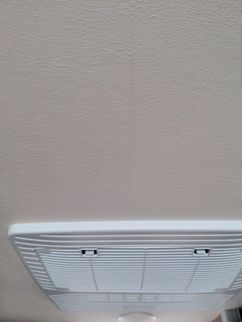

- I-2 Interior - Ceiling:
The inspector observed line of discoloration between the AC vent and the smoke detector.

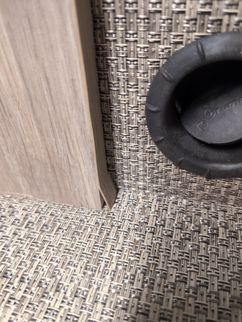

- I-3 Interior - Walls:

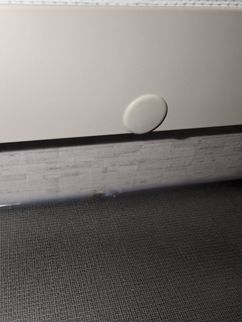

The inspector observed unfinished wall trim on the curbside going to the bedroom.
- I-4 Interior - Windows, Blinds and Shades:
The inspector observed adhesive where the options sheet was mounted.

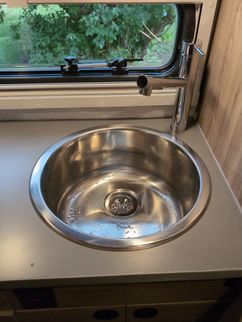

- I-5 Interior - Kitchen Sink:
The inspector observed a gap in the counter-to-wall sealant behind the kitchen sink mid-window.
Notice / Comment
- ES-6 Exterior Sidewalls - Streetside Sidewall:
The inspector observed that no limiting cable is installed on the streetside rearmost compartment pass-through door; however, there is one on the curbside door. This is per Winnebago's design: the curbside cable is so the garage door blocks the water heater exhaust. It is recommended that a limiting cable (PN 076767-05-000) be installed on the streetside of the rearmost compartment pass-through door to prevent it from opening and hitting the water bay door.

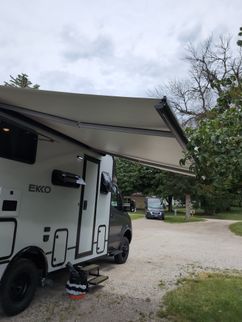

- A-1 Awnings - Main Awning:
To extend the awning, the parking brake needs to be engaged. The inspector suggests setting the parking brake while the engine is running.

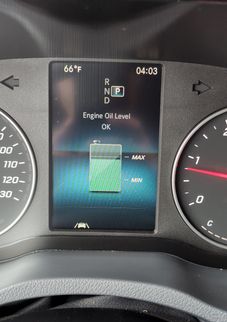

- MRT-1 MH-Engine, Radiator and Transmission - Engine Oil:
No engine oil sample was taken during the inspection. The inspector recommends reviewing the manufacturer's service intervals to identify when engine oil and filter changes are required.
- MRT-2 MH-Engine, Radiator and Transmission - Coolant:
No coolant sample was taken at the time of the inspection. The inspector recommends reviewing the manufacturer's coolant service intervals to determine when a coolant changes are required.
- MRT-3 MH-Engine, Radiator and Transmission - Transmission:
No transmission sample was taken during the inspection. The inspector recommends reviewing the manufacturer's service intervals to determine when a transmission fluid change is required.

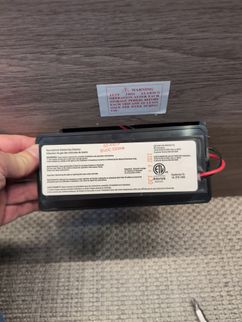

- 1VA1VDES-1 120 Volt AC and 12 Volt DC Electrical System - Surge Protector:
A 30 AMP surge protector was not present in the coach. Unknown AC power connections can cause significant damage to an RV electrical system. It is recommended that a 30 AMP surge protector be purchased before using the coach.
Progressive Industries RV Surge Protector 30 Amp, Portable with Cover, SSP-30XL
- 1VA1VDES-2 120 Volt AC and 12 Volt DC Electrical System - 12 Volt DC Chassis Battery:

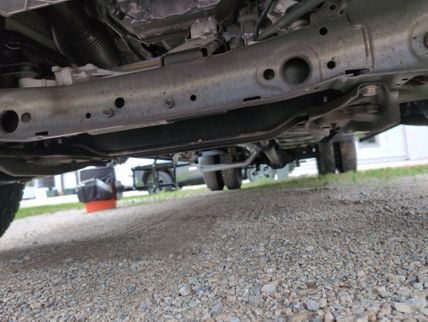

The chassis battery was not accessible, as disassembling the floor of the driver's footwell is required.
- LSDE-2 LP System, Detector(s), Extinguisher(s) - DOT Tanks:
The LP tanks' metal bases sit on a painted metal pan. The pan's paint will chip and eventually rust, so we recommend tank protection.

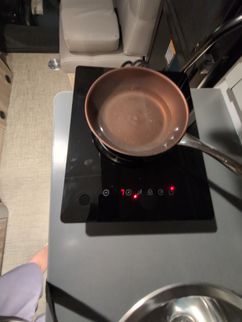

- KA-1 Kitchen Appliances - Cooktop / Oven:
Induction cooktops requires pots and pans that are made of ferrous (meaning magnetic) materials. Check your cookware's retail box for the induction symbol. To tell if your current cookware is compatible with the induction technology, grab a magnet and see if it holds.
- OA-1 Other Appliances - Water Heater:
The Truma AquaGo installed in this coach owner's manual states, "Winterizing the RV with a winterizing fluid is only possible with an installed bypass kit..." The Truma requires that this device be bypassed when winterizing or sanitizing the system.
- I-1 Interior - Interior Photos:
The inspector observed significant new construction outgassing. Spent the night with the windows open.
The Full Report
Vehicle Information
VIN Information
RVIA / Canadian Seal
Manufacture Information
Chassis Information
State License Plate
Build Sheet

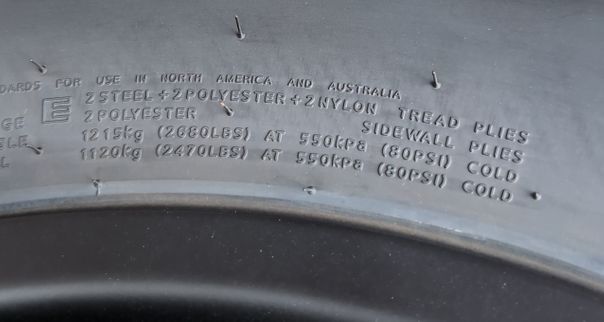

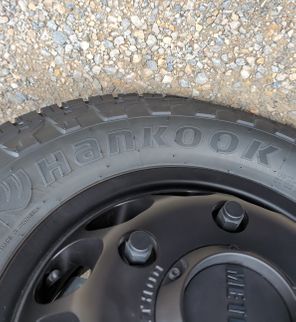

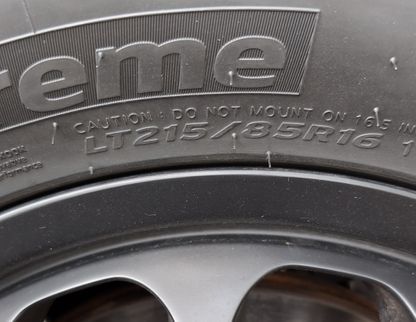

Tires and Wheels
NOTE
Curbside Front-Tire/Wheel
Curbside Inside-Drive Tire/Wheel
Curbside Outside-Drive Tire/Wheel
Streetside Outside-Drive Tire/Wheel
Streetside Inside-Drive Tire/Wheel
Streetside Front-Tire/Wheel

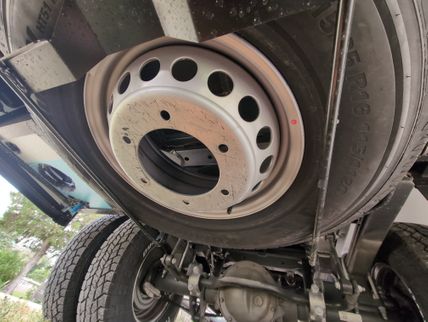

Spare-Tire/Wheel
120 Volt AC and 12 Volt DC Electrical System
Hot Skin Tests

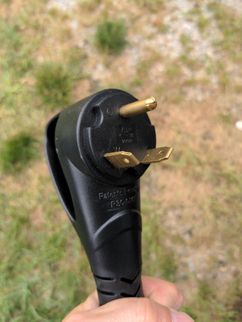

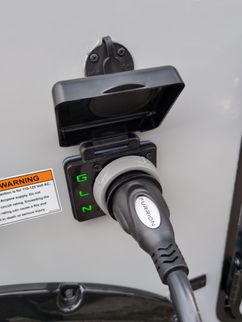

Power Cord

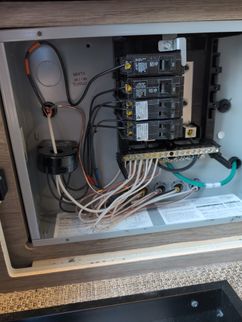

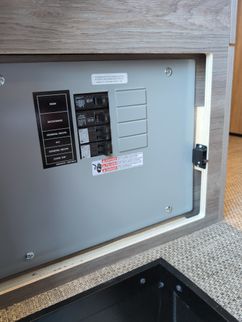

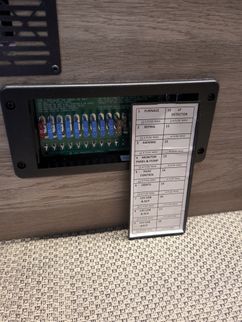

Electrical Panel & Fuses
AC Outlets & GCFI
Generator
Inverter
Surge Protector

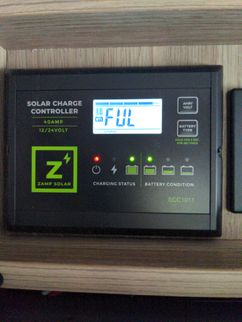

Solar Charge Control

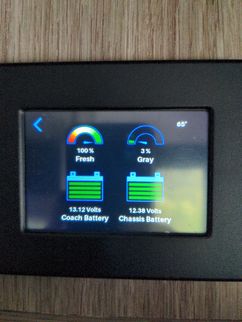

12 Volt DC Chassis Battery

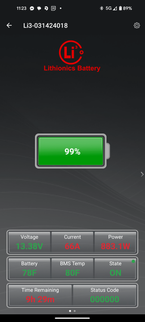

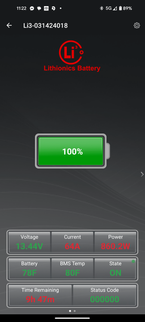

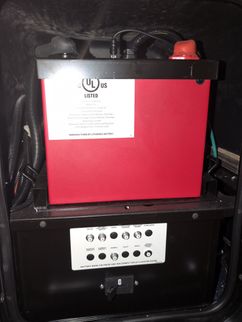

12 Volt DC House Battery
LP System, Detector(s), Extinguisher(s)
NOTES

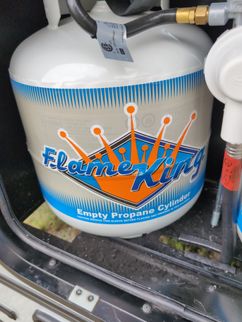

DOT Tanks

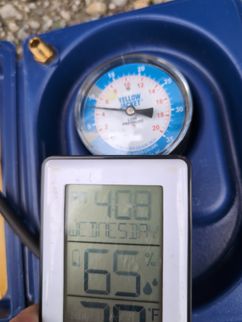

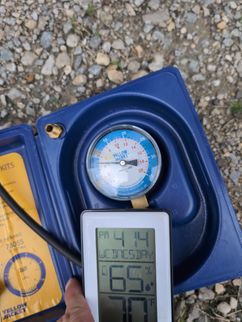

LP Leak / Drop Test

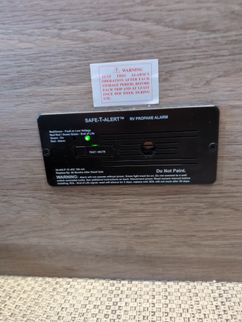

LP Detector
CO Detector

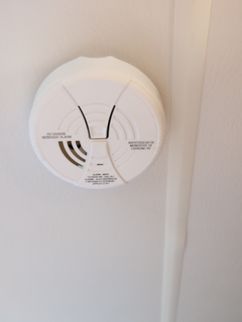

Smoke Detector

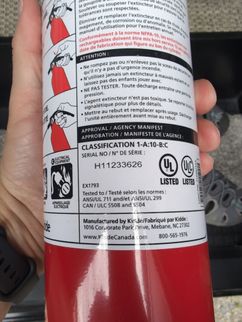

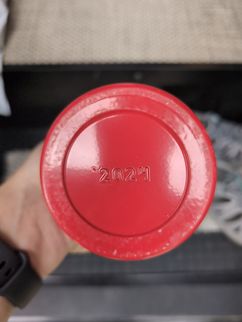

Fire Extinguisher
Other Appliances

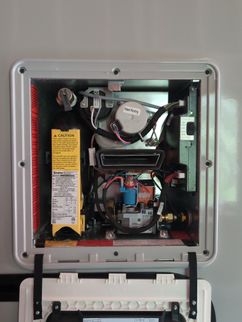

Water Heater
Furnace
Washer / Dryer
In-House Vacuum System
Electric Fireplace
Ceiling Fan
General Info

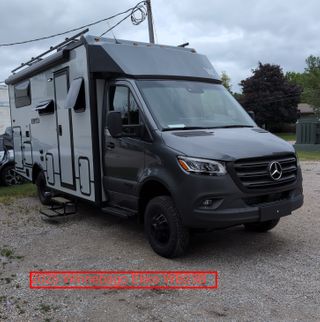

Type of Inspection: Buyer: Pre-Purchase RV Inspection
Inspection Category: Premier
Style of RV: Class C - Diesel Chassis
RV Status: Vacant: RV Dealership
Client Present: Yes
Start Temp: 65
Vehicle Information
VIN Information
VIN Number: Photo Included, W1X8N36Y2PN26xxxx
VIN Number / VIN Data Plate Photo:
VIN Location: Driver's Seat Area

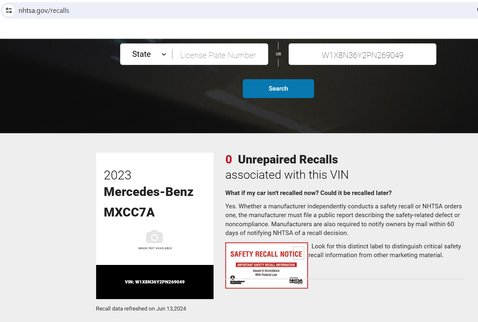

Recalls Checked via NHTSA.GOV: Yes
RVIA / Canadian Seal

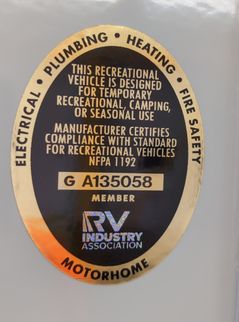

RVIA / Canadian Seal Number: Located by Entrance Door, G A135058
RVIA / Canadian Seal Photo:
Manufacture Information
Brand of RV: Manufacturer's Brand Name, Ekko
Model: RV Designation, WM23B
Manufacturer Name / Location: Winnebago / Forest City, IA
Date of Manufacturer: May, 2024
Gross Vehicle Weight Rating (GVWR in lbs): From Data Plate, 11,030
Chassis Information
Chassis Manufacturer Name: Mercedes
Chassis Manufacturer Date: June, 2023

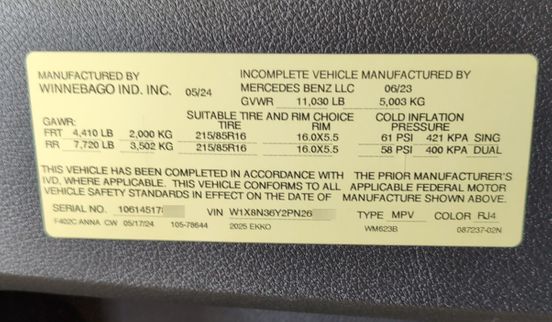

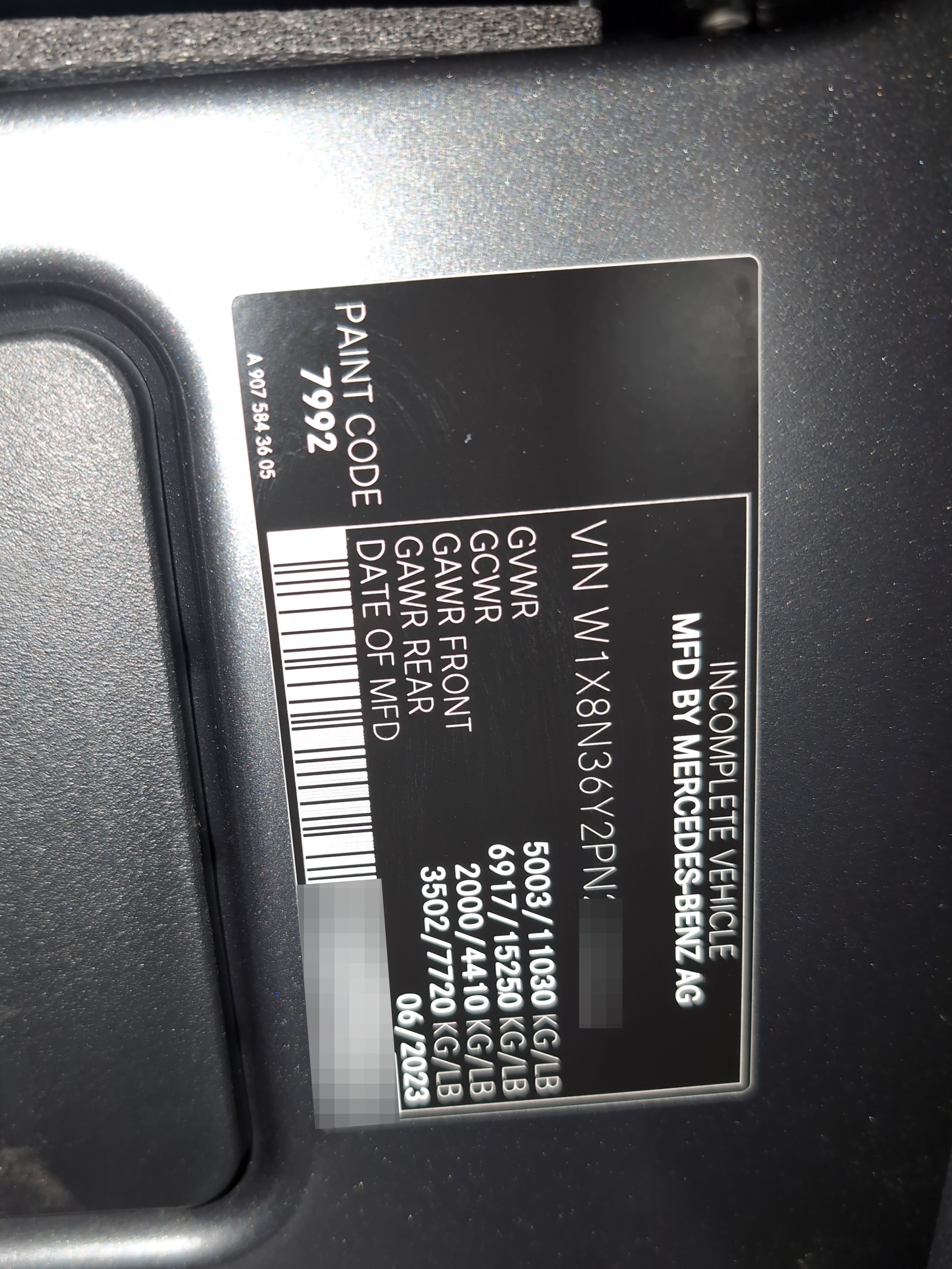

Incomplete Chassis VIN Data Plate Photo:
State License Plate
State Inspection Sticker Current: Not Required
State License Plate Current: Not Present
State License Plate Photo:

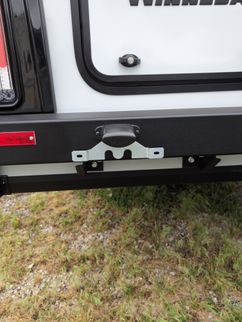

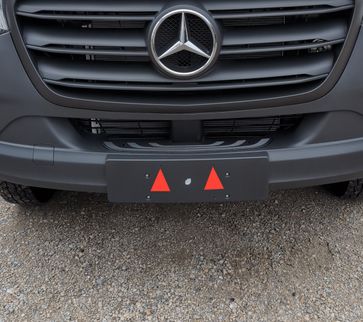

No license plate hardware was present to mount either the front or rear license plate.

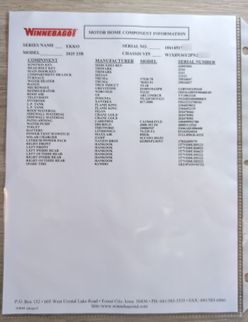

Build Sheet
Build Sheet Location: RV Manual Folder
Build Sheet Photo:
RV Manuals Present:
Yes
The Operator's manual appears to be for the Transit-based Ekko, not the Mercedes Ekko, as the Mercedes Ekko has an induction cooktop instead of an LP cooktop.
 |  |
Roof Exterior
Roof
Roof Type: Fiberglass
Areas of Possible Water Intrusion: Yes, Solar Junction Box is Not Fully sealed
Roof Condition:Acceptable
Front Cap, Joints and Seals:Acceptable
Awning Rail Trim (Curbside):Acceptable
Rear Cap, Joints and Seals:Acceptable
Trim Rail (Streetside):Acceptable
Roof Ladder Type: Mounted
Ladder - Roof Access:Acceptable

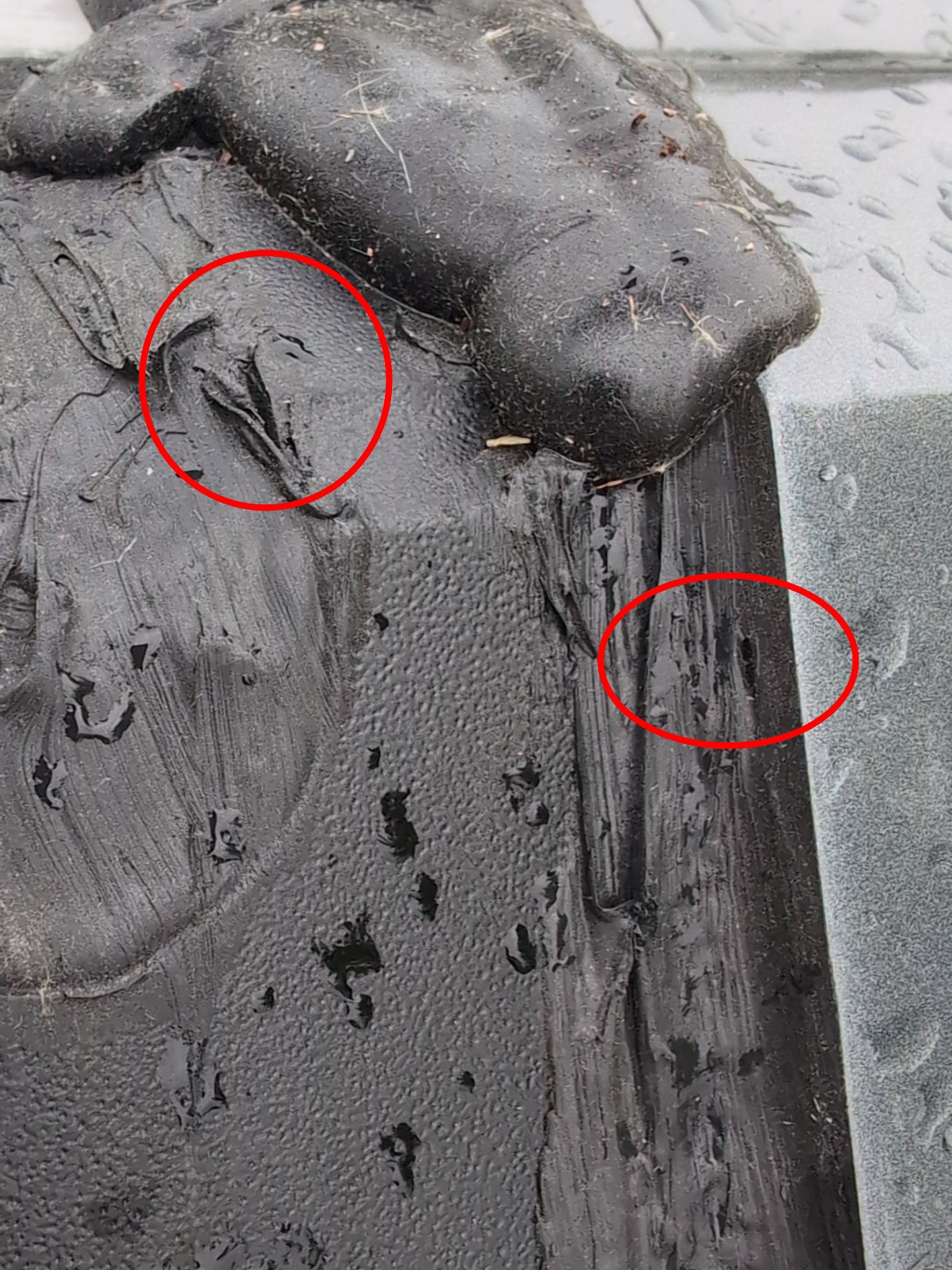

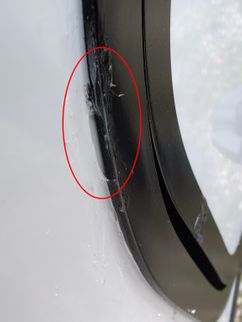

The inspector observed gaps in the roof sealant at the identified locations. It is recommended that a qualified RV technician service this to prevent future water intrusion.
- Solar Junction Box Sealant Gap
- Curbside Front Side Drain
Vents
Vents - Manual Crank (14 x 14):Not Present
Vents Powered (14x14):Acceptable
Exterior Vent Covers:Acceptable
Plumbing Vent Covers:Not Present
Refrigerator Roof Vent:Not Present
Skylights:Not Present
Air Conditioner Center
AC Shroud:Acceptable
AC Exterior Coils:Acceptable
Antennas
TV Antenna - Moves Up and Down: Fixed
TV Antenna - Cleaned and Maintained: Yes
Antenna Power Booster Operates: Yes
TV Antenna Exterior Roof Unit:Acceptable
TV Antenna Interior Handle and Crank:Not Present
Satellite Antenna:Not Present
Radio Antenna:Acceptable

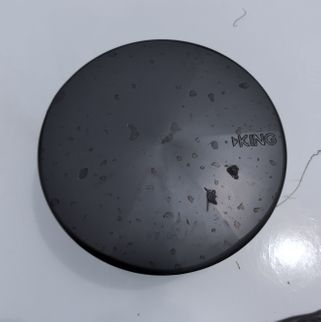

TV Antenna:
Other Roof Equipment

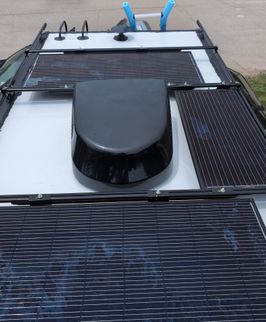

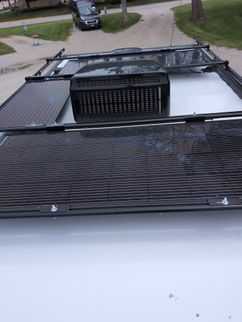

Number of Solar Panels: Three
Solar Panels:Acceptable
Equipment Removed: No
Air Horns:Not Present

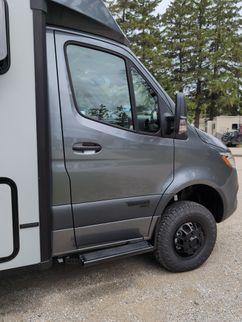

MH-Front Windshield and Cab Area
Windshield and Cab Area
Windshield Type: Glass with No Frame
Windshield Condition:Acceptable
Wiper and Washers: Operate as intended
Wiper and Washer Condition:Acceptable
Rearview Outside Mirrors:Acceptable
Sun Shades: Manual
Sun Shades Operational:Acceptable
12 Volt Fans: Not Present
12 Volt Fans Operational:Not Present
12 Volt Power Ports - Condition / Operation:AcceptableNot Inspected
USB Power Ports - Condition / Operation:USB Type A Port
Dash Air Conditioner Temperature Reading: F, 44.4
Dash Heater Temperature Reading: F, 100
Dash AC / Heater / Defroster - Operation:Acceptable
Dashboard - Condition:Acceptable
Dash Controls and Gauges:Acceptable
Horn - Operation:Acceptable

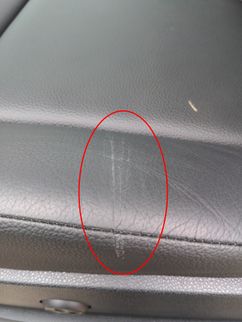

Cab Driver Seat - Condition:Fair
Cab Passenger Seat - Condition:Acceptable
Seatbelts - Condition / Operation:Acceptable
The inspector observed an abrasion on the streetside of the driver's seat.
Dash Radio and Rear View Camera
Unit Brand: Mercedes
Unit - Model # / Serial #: MBUX
Remote Operational: Not Present
Dash Radio Works Properly: Yes
Dash Radio Clean and Maintained: Yes
Dash Radio Properly Mounted and Secured: Yes
Dash Radio Operational:Acceptable
Rear View Camera Operational:Acceptable
Side View Cameras - Operational:Not Present
Radio:
Exterior Sidewalls
Front Cap / Wall
Exterior Wall Surface Type: Fiberglass with Decals, Metal
Any Damage or Discoloration or Delamination: No
Sidewall Condition:Acceptable
Paint and Decals:Acceptable
Wall Sealant:Acceptable
Windows: None
Windows:Not Present
Cargo Door: None
Cargo/Access Doors:Not Present
The inspector observed a blemish on the coach's front bumper.
Front Wall Photo:
Curbside - Sidewall
Exterior Wall Surface Type: Fiberglass with Decals
Any Damage or Discoloration or Delamination: No
Sidewall Condition:Acceptable
Paint and Decals:Acceptable
Wall Sealant:Fair
Windows: Glass with Frame
Windows:Acceptable
Cargo Door: Doors with Keyed Twist Latch
Cargo/Access Doors:Poor
Cargo Interior Condition:Acceptable
Compartment Lights:Acceptable
The inspector observed gaps in the sealant. It is recommended that a qualified RV technician repair the sealant in the following areas to prevent future water intrusion.
- Rear of Curbside Entrance Door Near Porch Light
- Top Rear of Entrance Door Under Drip Edge
The inspector observed that many of the curbside cargo bay door locks are difficult to lock, with concern that the key is going to fatigue and break.
- Curbside Front Upper Lock
- Curbside Front Lower Lock
Rear Cap / Wall
Exterior Wall Surface Type: Fiberglass with Decals
Any Damage or Discoloration or Delamination: No
Back Up Camera: Present
Sidewall Condition:Acceptable
Paint and Decals:Acceptable
Wall Sealant:Acceptable
Windows: None
Windows:Not Present
Cargo Door: Doors with Keyed Twist Latch
Cargo/Access Doors:Acceptable
Cargo Interior Condition:Acceptable
Compartment Lights:Acceptable
Rear Cap Wall Photo:
Streetside Sidewall
Exterior Wall Surface Type: Fiberglass with Decals
Any Damage or Discoloration or Delamination: No
Sidewall Condition:Acceptable
Paint and Decals:Acceptable
Wall Sealant:Fair
Windows: Glass with Frame
Windows:Acceptable
Cargo Door: Doors with Keyed Twist Latch
Cargo/Access Doors:Poor
Cargo Interior Condition:Acceptable
Compartment Lights:Acceptable
The inspector observed gaps in the sealant. It is recommended that a qualified RV technician repair the sealant in the following areas to prevent future water intrusion.
- Streetside Rear Upper Rear Corner Sealant
- Streeside Top of Solar Connector
- Streetside Top of Furnace Exhaust
- Streetside Front of Gulper Bay Door
- Streetside Above Water Bay Door
The inspector observed that many streetside cargo bay doors are challenging to lock, with concern that the key will fatigue and break.
- Upper battery door
- Front Gulper
- Rear Gulper Lock
- Streetside Rear Bay, Front Lock
The inspector observed that no limiting cable is installed on the streetside rearmost compartment pass-through door; however, there is one on the curbside door. This is per Winnebago's design: the curbside cable is so the garage door blocks the water heater exhaust. It is recommended that a limiting cable (PN 076767-05-000) be installed on the streetside of the rearmost compartment pass-through door to prevent it from opening and hitting the water bay door.
Entrance Doors
Door - Coach
Type of Entrance Door: Fiberglass
Keyless Entry Door Lock System: Yes
Keyless Entry Door Lock Functional: Yes
Keyed Door Lock / Deadbolt: Yes
Keyed Door Lock / Deadbolt Functional: Yes
Type of Step System: Electric
Number of Steps: Two
Step - Condition:Acceptable
Grab Bar Type: Grab Handle
Door Condition:Acceptable
Paint and Decals:Acceptable
Screen Door Condition:Acceptable
The inspector observed that the screen door slide panel latch is not operational.
The inspector observed damage to the entrance door strike plate. A photo not available as this issue was identified and repaired in the shop (no photo policy).
The inspector observed that the magnetic latch is loose and does not hold to the screen door frame.
Entrance Door:
Door - Passenger
Type of Door: Metal Sheet
Keyless Entry Door Lock System: Yes
Keyless Entry Door Lock Functional: Yes
Keyed Door Lock / Deadbolt: No
Keyed Door Lock / Deadbolt Functional: Not Present
Type of Step System: Manual
Number of Steps: One
Step - Condition:Acceptable
Grab Bar Type: Grab Handle
Door Condition:Acceptable
Paint and Decals:Acceptable
Screen Door Condition:Not Present
Passenger Door:
Door - Driver
Type of Door: Metal Sheet
Keyless Entry Door Lock System: Yes
Keyless Entry Door Lock Functional: Yes
Keyed Door Lock / Deadbolt: Yes
Keyed Door Lock / Deadbolt Functional: Yes
Type of Step System: Manual
Number of Steps: One
Step - Condition:Acceptable
Grab Bar Type: Grab Handle
Door Condition:Acceptable
Paint and Decals:Acceptable
Screen Door Condition:Not Present
Driver's Door:
Awnings
Main Awning
Awning Material: Vinyl
Operational Type: Electric
Awning Length: 14 feet
Awning Light: Light At Awning Rail
Frame and Latching Mechanism:Acceptable
Fabric Condition:Acceptable
Awning Operation:Acceptable
To extend the awning, the parking brake needs to be engaged. The inspector suggests setting the parking brake while the engine is running.
Main Awning:
Tires and Wheels
NOTE
-The National Transportation Safety Board (NTSB) and some tire manufacturers are recommending that all tires older than six years should be replaced, regardless of their condition.
Curbside Front-Tire/Wheel
Tread Depth: 15/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified, 5123
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Single Tire Rating, 2,680 lbs
Load Range: G
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 61
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 59.3
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Wheel Type: Alloy
Wheel Condition:Acceptable
Curbside Inside-Drive Tire/Wheel
Tread Depth: 15/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified, 5122
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Dual Tire Rating, 2,470 lbs
Load Range: G
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 58
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 59.9
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Steel
Wheel Condition:Acceptable
Curbside Outside-Drive Tire/Wheel
Tread Depth: 15/32 inch
DOT Date: Visually Verified, 5222
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Dual Tire Rating, 2,470 lbs
Load Range: G
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 58
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 65.2
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Alloy
Wheel Condition:Acceptable
Streetside Outside-Drive Tire/Wheel
Tread Depth: 15/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified, 5222
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Dual Tire Rating, 2,470 lbs
Load Range: G
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 58
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 59.3
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Alloy
Wheel Condition:Acceptable
Streetside Inside-Drive Tire/Wheel
Tread Depth: 15/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified, 4623
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Dual Tire Rating, 2,470 lbs
Load Range: G
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 58
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 60.0
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Steel
Wheel Condition:Acceptable
Streetside Front-Tire/Wheel
Tread Depth: 15/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified
Tire Brand: Hankook
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Single Tire Rating, 2,680 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 61
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 61.9
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Alloy
Wheel Condition:Acceptable
Spare-Tire/Wheel
Tread Depth: 14/32 inch
Tire Tread Condition:Acceptable
DOT Date: Visually Verified, 2822
Tire Brand: Kumho
Tire Size: Light Truck (LT) (LT215/85R16)
Load Capacity: Single Tire Rating
Load Range: E
Maximum Air Pressure (PSI): 80
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 55.3
Spare Tire Rack Type: Drop Down Rack
Spare Tire Jack and Tools: Yes
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:Acceptable
Wheel Type: Steel
Wheel Condition:Acceptable
Spare Tire Assembly:
MH-Chassis and Undercarriage
Note
-Due to insurance restrictions, the motor home can NOT be driven by the inspector. Also, due to the lack of clearance under the motor home and safety concerns, the inspector will conduct the following visual inspections from the outer perimeter of the motor home.
Chassis and Frame - Did Inspector Check for Visible Signs of Rust?: Yes, Was any present?: No
Chassis and Frame - Did Inspector Check for Visible Signs of Bent or Damaged Components?: Yes, Was any present?: No
Chassis and Frame - Did Inspector Check for Visible Signs of Excessive Wear?: Yes, Was any present?: No
Chassis and Frame - Did Inspector Check for any Visible Signs of Excess Oil Present?: Yes, Was any present?: No
Running Gear - Did Inspector Check for Visible Signs of Scraping or Drag Damage?: Yes, Was any present?: No
Running Gear - Did Inspector Check for Visible Signs of Damage from Tire Failure?: Yes, Was any present?: No
Running Gear - Did Inspector Check for Hydraulic Hose Leaks?: Yes, Was any present?: No
Number of Axles: Two
Front Axle Weight Rating (lbs): 4,410
Drive Axle Weight Rating (lbs): 7,720
Chassis and Frame Condition:Acceptable
Shock Absorber System Condition:Acceptable
Running Gear (Axles, Springs, other Components):Acceptable
Steering Components:Acceptable
Chassis Photos:
 |  |
MH-Engine, Radiator and Transmission
Engine
Engine Brand: Mercedes
Engine HP - Model: 208 HP - 2.0L Diesel
Engine Mileage: 18.4
Engine Type / Location: Front Diesel
Engine Running Condition:Acceptable
Engine Compartment Cleanness:Acceptable

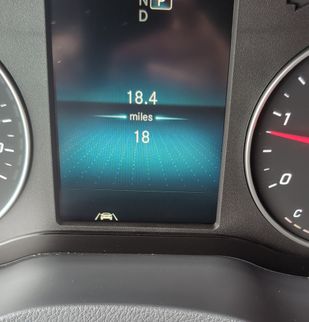

Engine Mileage Photo
Engine Oil
Last Oil Change Recorded: Factory Fill
Last Oil Filter Change Recorded: Factory
Inspect for Oil Leaks: Yes
Oil Pressure Reading: Normal
Oil Analysis Performed: No
Oil Level on Dipstick: Normal
Last Fuel Filter Change Recorded: Factory
Service Documentation Present:Acceptable
No engine oil sample was taken during the inspection. The inspector recommends reviewing the manufacturer's service intervals to identify when engine oil and filter changes are required.
Engine Oil Level:
Coolant
Radiator Location: Front
Coolant Fans Accessible: Yes
Cooling Fan(s) Operational: Yes
Cooling Fan Type: Belt Driven
Coolant Analysis Performed: No
Radiator Condition:Acceptable
Coolant Reservoir Condition:Acceptable
Radiator Hose Condition:Acceptable
No coolant sample was taken at the time of the inspection. The inspector recommends reviewing the manufacturer's coolant service intervals to determine when a coolant changes are required.
Transmission
Transmission Brand: Mercedes
Transmission Fluid Leaks - Inspect for: Yes
Transmission Analysis Performed: No
Transmission Oil Contaminated - Discolored: Not Accessible
Transmission Fluid Level on Dipstick: Not Accessible
Transmission Condition:Acceptable
No transmission sample was taken during the inspection. The inspector recommends reviewing the manufacturer's service intervals to determine when a transmission fluid change is required.
Hitch& Exhaust
Exhaust Leaks: No
Hitch Receiver Brand: Winnebago
Hitch Weight Rating: Class 3 (up to 8000 GTW), 5,000 GTW
Modifications to Hitch System: No
Hitch Connector Pin Type: 7 Pin, Mercedes Sprinter
The inspector observed that LEDs (or relay-isolated) tail lights may not be turning on all trailer circuits. A 7-pin adaptor is available to resolve this issue.
TOW READY 20142 7-Way Flat Pin to 7-Flat Plug to Plug Adapter
Hitch Receiver Condition:Acceptable
Hitch Connector Condition:Acceptable

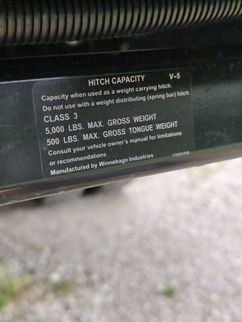

Hitch Data Plate:
MH-Leveling System
MH-Leveling System
Leveling System Type: Not Present
Leveling System Condition:Not Present
12 Volt DC Exterior Lights
NOTE
-The inspector has verified the items in this section are functional.
Chassis Lights
Headlights:Acceptable
Types of Light Bulbs: LED
Front Clearance Lights:Acceptable
Rear Clearance Lights:Acceptable
Streetside - Marker Lights:Acceptable
Curbside - Marker Lights:Acceptable
Left Turn and Brake Light:Acceptable
Right Turn and Brake Light:Acceptable
Backup Lights:Acceptable
License Plate Light:Acceptable
Trailer Connector
Hitch Connector Pin Type: 7 Pin
Pin Connector - Tail/Marker Lights:Acceptable
Pin Connector - Left Turn and Brake Light:Acceptable
Pin Connector - Right Turn and Brake Light:Acceptable
Pin Connector - Brakes:Acceptable
Pin Connector - Backup Lights:Acceptable
12VDC at Trailer Connector:Yes
Exterior Lights
Flood Lights:Acceptable
Utility Lights:Not Present
Porch Lights:Acceptable
Security Lights:Not Present
Waste Dump Lights:Acceptable
120 Volt AC and 12 Volt DC Electrical System
Hot Skin Tests
Hot Skin Test - Was any Frame and Running Gear Voltage Recorded:No
Hot Skin Test - Was any Exterior Surface Voltage Recorded:No
Hot Skin Test - Was any Exterior Wall Surface Voltage Recorded:No
Hot Skin Test - Was any Door Handles and Frames Voltage Recorded:No
Hot Skin Test - Was any Window Frames and Trim Voltage Recorded:No
Hot Skin Test - Was any Other Voltage Recorded:No
Power Cord
Power Cord Type: 30 Amp / 120 Volts AC
Power Cord Condition:Has 2021 NFPA 1192 Polarity Detection
Power Cord:
 |  |
Electrical Panel & Fuses
Inside Electrical Panel Box Condition: Acceptable
12 Volt DC Fuse Panel Box Condition: Acceptable
Fuses Condition: All Operational
Fuse Connections Condition: Good Connection
Wires and Terminals Tight: Solid Connection
Electrical Panel Box - Signs of Repair or Service:No
Electrical Panel Box - Circuit Breakers in Place:Yes
Electrical Panel Box - Wiring Secure:Yes
Electrical Panel Box - All White, Black and Ground Wires Kept Separate:Yes
Fuse Panel Box Inspected:Yes
12 Volt Fuse Panel Photo:
 |  |
Electrical Panel:
 |  |
AC Outlets & GCFI
GCFI Reset Location: Kitchen
GCFI / Polarity / Voltage Test - Kitchen Receptacles:Yes
GCFI / Polarity / Voltage Test - Bath and Toilet Area Receptacles:Yes
GCFI / Polarity / Voltage - All Exterior Receptacles:Yes
GCFI / Polarity / Voltage Test - Receptacles Storage Bay Areas:Yes
Polarity / Voltage Test Bedroom Receptacles:Yes
Polarity / Voltage Test - Dining Area Receptacles:Not Present
Polarity / Voltage Test - Living Room Receptacles:Not Present
Polarity / Voltage Test - Behind Refrigerator:Not Present
Polarity / Voltage Test - Receptacles Behind all Electronics and Appliances:Yes
USB / 12-Volt Power Port(s) - Condition:AcceptableUSB Type A PortUSB Type C Port
Generator
Generator - Brand: Not Present
Generator - Tested Under Load:Not Present
Inverter
Inverter - Brand: Xantrex
Inverter - Model # / Serial #: From Build Sheet, 817-2080 / 92612312700301
Inverter - General Condition: Acceptable
Inverter - Voltage Output: Voltage Measured Under Load, 120.4
Inverter - Frequency Output: Frequency Measured Under Load, 60l!
Inverter - Inspected Cables, Wiring and Fuses:Yes
Surge Protector
Surge Protector - Brand: Not Present
Surge Protector - General Condition: Not Present
Surge Protector - Cables, Wiring and Fuses:Not Present 30 AMP
A 30 AMP surge protector was not present in the coach. Unknown AC power connections can cause significant damage to an RV electrical system. It is recommended that a 30 AMP surge protector be purchased before using the coach.
Progressive Industries RV Surge Protector 30 Amp, Portable with Cover, SSP-30XL
Solar Charge Control
Solar Charge Controller - Brand: Zamp Solar, SCC1011.001ZS
Solar Charge Controller:
 |
12 Volt DC Chassis Battery
12 Volt DC Chassis Battery Condition: Acceptable
12 Volt DC Chassis Battery Box Condition: Not Inspected
12 Volt DC Chassis Battery Cables and Terminals Condition: Not Inspected
12 Volt DC Chassis Battery(s) - Disconnect Switch:Yes
12 Volt DC Chassis Battery(s) - Operational:Yes
The chassis battery was not accessible, as disassembling the floor of the driver's footwell is required.
12 Volt DC House Battery
12 Volt DC House Battery - Location: Front Cargo Bay
12 Volt DC House Battery - Box Condition: Acceptable
12 Volt DC House Battery - Cables and Terminals Condition: Acceptable
12 Volt DC House Battery - Vented and Secure: Yes
12-Volt DC House Battery - Water Level in Batteries: Sealed Battery, Lithium
12 Volt DC HouseBattery(s) - Disconnect Switch:Yes
12 Volt DC House Battery(s) - Operational:Yes
12 Volt DC House Battery(s) - Matched for Size and Age:Yes
12 Volt DC House Battery(s) - Positive and Negative Cables Matched for Load:Yes
12 Volt DC House Battery(s) - Have They Been Maintained:Yes
Power Converter - AC On (DC Voltage with Shore Power On): Operational Test, 13.66
Power Converter - AC Off (DC Voltage with Shore Power Off: Operational Test, 13.38
Power Converter - Did DC Voltage Drop at Least 1/2 Volts:No
House Batteries:
 |  |
Water Systems
NOTES
-Because the age and quality of the water in the freshwater tank cannot be determined, the tank should be drained and sanitized before being refilled.
Due to the types of materials and waste used in the tanks and depending on previous maintenance, fresh and waste monitors, sensor probes may perform inaccurately between applications due to buildup.
City Water
City Water - Pressure Regulator Present:No

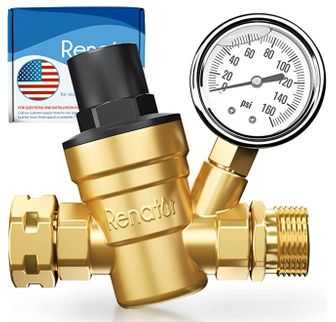

The coach did not have a water pressure regulator. High water pressure can burst your RV's pipes, cause leaks, and loosen connections within the plumbing system. It is recommended that a water pressure regulator be purchased before using the coach.
City Water - Connections Operate:Yes
City Water Connection Condition:Acceptable
City Water - System Holds Pressure:Yes
City Water System Condition:Acceptable

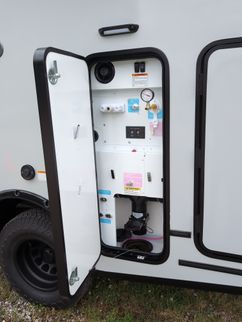

On-Board Water System
On-Board Water System - Tested Fresh Water Fill: Yes
On-Board Water System - Pressure System Works: Yes
On-Board Water System - Pump Creates and Holds Pressure: Yes
Onboard Water Filtration System:Acceptable
This coach has a water filtration system. The inline water filter system can be visually inspected without removing the canister and filter.
On-Board Water System: Tank, Water Pump and Fixtures for Tank Fill Condition:Acceptable
Operation and Condition of Outside Shower:Acceptable
Water Systems:
Black Water Tank
Waste Water Sewer Hose Present:Acceptable
Black Water Tank - Valve Operates: Not Present, Cassette
Black Water Tank - Valve Type: Cassette
Black Water Tank - Tank or Valve or Line Leaks: No
Black Water Tank - Wash System: Not Present
Black Water Tank - Drain Cap in Place: Yes
Black Water Tank Drain Cap Holds Waste Water Back: Yes
Black Water Tank Condition:Acceptable
The inspector observed that the toilet cartridge removal interferes with the rear of the door frame and installation membrane is hanging from the top.
 |  |
Cassette:
 |  |
Gray Water Tank
Gray Water Tank - Valve Operates: Yes
Gray Water Tank - Valve Type: Manual Pull T-Handle
Gray Water Tank - Tank or Valve or Line Leaks: No
Gray Water Tank - Wash System: Present and Labeled
Gray Water Tank - Drain Cap in Place: Yes
Gray Water Tank - Drain Cap Holds Gray Water Back: Yes
Gray Water Tank Condition:Acceptable
Waste Water Sewer / Hose Fittings:Acceptable
Monitor System
Battery Monitor Reading: Digital Reading, 13.19
Monitor Panel - After Water Fill: Yes

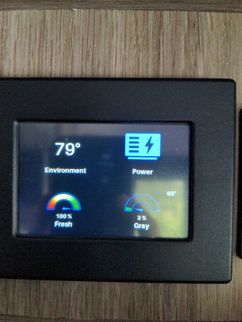

Monitor Panel - After Water Fill:
Fresh Water Tank Reading: Digital Reading, 100%
Black Water Tank #1 Reading: Cassette , Empty
Gray Water Tank #1 Reading: Digital Reading, 3%
Battery / Waste / Water Monitor Panel Condition:Acceptable
Monitor Panel:
 |  |  |
LP System, Detector(s), Extinguisher(s)
NOTES
General RV Detector and Fire Extinguisher statements:
The National Fire Protection Association (NFPA) 1192 Standard requires that any detectors installed in an RV be certified for use in RVs.
The detector's manufactured date will typically be listed on the back of the detector. It's essential to check and replace detectors as the manufacturer recommends. Following the manufacturer's routine checks (which can be weekly) on all detectors is a reliable way to ensure their proper function. The detector manufacturer may list acceptable replacement battery manufacturers.
-LP Detectors have an estimated service life of 5 years, after which they are strongly recommended to be replaced. UL 1484
-CO Detectors have an estimated service life of 5 years, after which they are strongly recommended to be replaced. UL 2034 or CSA 6.19
-Smoke Detectors have an estimated service life of 5 to 10 years, after which they are recommended to be replaced. UL 217
-Fire Extinguishers are required to be removed from service 12 years from the date of manufacture. NFPA 10
These are not just a suggestion but a crucial step to ensure your RV's safety.
DOT Tanks
DOT - Cylinder Arrangement: Dual
DOT - Hoses and Regulators: Acceptable
DOT #1 - Cylinder Size: 20 LBS
DOT #1 - Date of Manufacture: 04A23
DOT Tank #1 - Rust or Damage Condition: Acceptable
DOT #2 - Cylinder Size: 20 LBS
DOT #2 - Date of Manufacture: 04A23
DOT Tank #2 - Rust or Damage Condition: Acceptable
DOT - Regulator Type: Dual Input - Auto Change Over
DOT - Regulator Vents Downward: Yes
DOT Tank(s) Condition:Acceptable
External Grill Port Recall: No
External Propane Port:Acceptable
The inspector observed that the tanks had a wrap which states caution remove the sleeve before placing any propane in this cylinder.
The LP tanks' metal bases sit on a painted metal pan. The pan's paint will chip and eventually rust, so we recommend tank protection.
Grill Port:
 |  |
DOT Tank:
LP Leak / Drop Test
LP Leak / Drop Test - Begin Time: Begin Time, 4:08
LP Leak / Drop Test - Completed Time: Stop Time, 4:14
LP Leak / Drop Test: Pass
LP Leak / Drop Test - Did Pressure Drop During Leak Test: No
LP Leak System Test:Acceptable
LP Leak System Test:
 |  |
LP Detector
LP Detector Brand / Model: MTI Industries
LP Detector Date: Less Than One Year Old, OCT 27 2023
LP Detector UL 1484: Yes
LP Detector Test Method: Tested by Pushing Button and Spraying LP
LP Detector Alarm During Test: Yes
LP Detector Condition:Acceptable
LP Detector:
 |  |

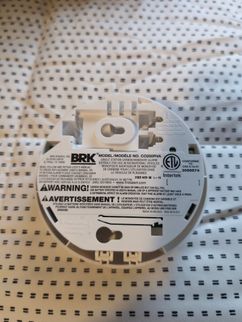

CO Detector
CO Detector Brand / Model: BRK / CO250RVA
CO Detector Date: Less Than One Year Old, Date, 2023 NOV 08
CO Detector UL 2034 or CSA 6.19: Yes
CO Detector Test Method: Tested by Pushing Button
CO Detector Alarm During Test: Yes, by Pushing the Button
CO Detector Condition:Acceptable
CO Detector:
 |  |

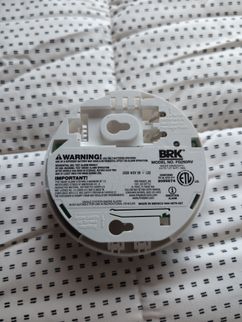

Smoke Detector
Smoke Detector Brand / Model: BRK / FG250RV
Smoke Detector Date: Less than One Year Old, Date, 2023 NOV 06
Smoke Alarm UL 217: Yes
Smoke Detector Test Method: Tested by Pushing Button
Smoke Detector Alarm During Test: Yes, by Pushing the Button
Smoke Detector Condition:Acceptable
Smoke Detector:
 |  |
Fire Extinguisher
Fire Extinguisher - Size: MotorHome Minimum 10 B:C Rating
Fire Extinguisher - Brand: Kidde
Fire Extinguisher - Secure in Bracket: Yes
Fire Extinguisher - Mounted within 24 Inches of Entrance Door: Yes
Fire Extinguisher - Gauge Indicates Charged State: Yes, h
Fire Extinguisher Condition:Acceptable
Fire Extinguisher:
 |  |  |
Kitchen Appliances
NOTE:
Refrigerators must be on for at least 12 to 24 hours to be in complete cooling condition. This inspection may not reveal a problem if, during the inspection, the refrigerator was not on for the minimum recommended time.

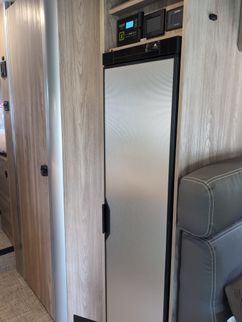

Refrigerator
Refrigerator - Brand: NORCOLD
Refrigerator - Model #/ Serial #: N2152 / SE016ABDW00680185
Refrigerator - Cooling Source(s): 12 Volts DC
Refrigerator - Operates on all Available Sources: Yes
Refrigerator - Type: 12 Volt Compressor
Refrigerator - Control Panel Location: Above Door
Refrigerator - Control Board:Acceptable
Refrigerator - Has Unit been Running 12 + Hours: Yes
Refrigerator - Door Latch Secure: Yes
Refrigerator - Freezer Current Temperature: Degrees F, 8.8
Refrigerator - Odor Detectable in Freezer: No
Refrigerator - Current Refrigerator Temperature: Degrees F, 36.7
Refrigerator - Odor Detectable in Refrigerator: No
Refrigerator - Does Inside Light Work: Yes
Refrigerator - Thermostat Sensor Control Mounted on Fins: Not Present
Refrigerator - Thermostat Sensor Type: Not Present
Refrigerator - Front Side Door Panels:Acceptable
Refrigerator - Front Side Door Frame:Acceptable
Refrigerator - Inside Freezer Walls:Acceptable
Refrigerator - Ice Maker:Not Present
Refrigerator - Freezer Shelves / Door Racks:Acceptable
Refrigerator - Inside Walls:Acceptable
Refrigerator - Shelves / Door Racks:Acceptable
Refrigerator - Crisper Trays and Drawers:Acceptable
Refrigerator - Recall Installed (Back of Refrigerator): Not Required
Refrigerator - Backside Cooling Coils / Proper Venting:Not Present
Refrigerator:
Cooktop / Oven
Cooktop - Brand: True Induction
Cooktop - Model # / Serial #: T1-1B /
Induction cooktops requires pots and pans that are made of ferrous (meaning magnetic) materials. Check your cookware's retail box for the induction symbol. To tell if your current cookware is compatible with the induction technology, grab a magnet and see if it holds.
Microwave
Microwave - Brand: GRAYSTONE
Microwave - Model # / Serial #: D100N30ASPR / GSB5102105448
Microwave - Type: Microwave / Convection
Microwave - Convection Mode - Fan Blower Comes On: Yes
Microwave - Temperature of Water after 60 Seconds: Degrees F, 126
Microwave Condition:Acceptable
Cooktop Exhaust Vent - Part of Microwave: Not Present
Cooktop Exhaust Vent - Venting: Not Present
Cooktop Exhaust Vent Condition:Not Present
Dishwasher
Dishwasher - Operational: Not Present
Dishwasher - Result of Operation: Not Inspected
Other Appliances
Water Heater
Water Heater - Brand: Truma AquaGo
Water Heater - Model # / Serial #: 78203-51 / 35024027
Water Heater - Rubber Grommet Around Gas Line Sealed:Acceptable
Water Heater - Type: On Demand
Water Heater - Heat Source(s): LP
Water Heater - Operates on all Sources: Yes
Water Heater - Type of Ignition: Direct Spark (DSI)
Water Heater - Leaks at Pressure Relief Valve: No
Water Heater - Proper Drain Plug Installed: Yes
Water Heater - Bypass Valves in Correct Position: Yes
Water Heater - Dauber Screens Installed: No
Water Heater - Condition of Burner Assembly Area:Acceptable
The Truma AquaGo installed in this coach owner's manual states, "Winterizing the RV with a winterizing fluid is only possible with an installed bypass kit..." The Truma requires that this device be bypassed when winterizing or sanitizing the system.
Water Heater Photo:
Furnace
Furnace - Brand: Truma Combi
Furnace - Model # / Serial #: 37520-78 / 35016047
Furnace - Operates: Yes
Furnace - Floor Vents Blocked or Covered: No
Furnace - Warm Air Discharge Out of Vents - Proper Return Air Flow: Yes
Furnace - Dauber Screens Installed: No
Furnace Air Intake / Exhaust Area Condition:Acceptable
Washer / Dryer
Washer / Dryer - Type: Not Present
In-House Vacuum System
In-House Vacuum System - Operational: Not Present
In-House Vacuum System - Condition of Unit / Accessories / Bag:Not Present
Electric Fireplace
Electric Fireplace - Results of Operation: Not Present
Electric Fireplace Condition:Not Present
Ceiling Fan
Ceiling Fan - Operation: Not Present
Ceiling Fan - Condition Motor and Blades:Not Present
Air Conditioners
NOTE:
-The Delta-T average acceptable performance range is 14 to 22 degrees (8 to 12 degrees C). In high humidity areas the range may be lower, 12 to 16 degrees F (7 to 9 degrees C) and in desert areas it may be higher 23 to 26 degrees F (13 to 15 degrees C).
Air Conditioners - Center
Air Conditioner - Brand: GE
Air Conditioner - Model # / Serial #: ARC13MHCB / VV100321R
Air Conditioner - Thermostatic Controls: Stand Alone
Air Conditioner - Options: AC Only
Air Conditioner - Delta-T: Degrees F, 22.2
Air Conditioner Condition:Fair
Air Conditioner - Filter Condition:Fair
Airconditioner - Exhaust Condition:Acceptable
The inspector observed that the filter does not stay in the holder.
The inspector observed that where the wires come into the AC unit allows air to bypass which will reduce efficiency.
Interior
NOTE:
The inspector has verified the items in this section.
Interior Photos
Interior Photos:Yes
Evidence of Animals:No
Odor Detected in RV:Yes
The inspector observed significant new construction outgassing. Spent the night with the windows open.
Ceiling
Ceiling - Type: Paneling
Ceiling Inspected:Yes
Ceiling - Panels Loose:No
Ceiling - Discoloration or Stains:Yes
Ceiling - Trim Work Missing or Damaged:No
Ceiling - Condition:Acceptable
Ceiling Vents and Skylights - Thermostatic Controls and Switches Work:Yes
Ceiling Vents - All 12 Volt DC Fans Operate:Yes
The inspector observed line of discoloration between the AC vent and the smoke detector.
Lights
Lights - Ceiling Light Bulb Type: T10 LED
Lights and Light Fixtures - Do all Lights Function:Yes
Lights and Light Fixtures - Wall Mounted Light Fixtures:Not Present
Lights and Light Fixtures - Rope Lights:YesKitchen
Lights and Light Fixtures - Spot Lights:Yes
Lights and Light Fixtures - Entry Lights inside RV:Not Present
Lights and Light Fixtures - Missing or Broken Lenses:No
Lights and Light Fixtures - Missing Shades or Broken Covers:No
Lights and Light Fixtures - Condition:Acceptable
Walls
Walls Inspected:Yes
Walls - Panels Loose:No
Walls - Water Damage Wall Panels:No
Walls - Panels Discolored or Stained:No
Walls - Soft Spots on Walls:No
Walls - Trim Work on Walls:No
Walls - Damage Repairs Performed:No
Walls - Holes or Wall Repairs:No
Walls - Condition:Acceptable
Walls - Interior Doors Condition:Acceptable
The inspector observed unfinished wall trim on the curbside going to the bedroom.
Windows, Blinds and Shades
Windows - All Windows Operational:Yes
Windows - Emergency Exit Windows Installed:Yes
Windows - Emergency Exit Windows Operational:Yes
Windows - Condition:Acceptable
Blinds and Shades - Installed:Yes
Blinds and Shades - Condition:Acceptable
The inspector observed adhesive where the options sheet was mounted.
Flooring
Flooring - Sheet Vinyl:Yes
Flooring - Carpet:No
Flooring - Floor Panels Loose:No
Flooring - Floor Covering Discolored or Stained:No
Flooring - Water Damage:No
Flooring - Carpet Worn:Not Present
Flooring - Sheet Vinyl Stained:No
Flooring - Previous Repairs Performed:No
Flooring - Condition:Acceptable
Kitchen Sink
Kitchen Sink - Style: Single Bowl
Kitchen Sink - Type: Stainless
Kitchen Counter Top Damage:No
Kitchen Sink - Faucet Working:Yes
Kitchen Sink - Faucet Leaks at Stem:No
Kitchen Sink - Water Damage Under Sink:No
Kitchen Sink - P-Trap Holds Water:Yes
Kitchen Sink - Hot and Cold Water Available:Yes
Kitchen Sink - Condition:Acceptable
The inspector observed a gap in the counter-to-wall sealant behind the kitchen sink mid-window.
Kitchen Sink Photo:
Toilet
Toilet - Type: Cassette
Toilet - Water Leaks:No
Toilet - Indication of Previous Damage or Repair:No
Toilet - Bowl Holds Water:Yes
Toilet - Mounting Problems:No
Toilet - Paper Holder:Present and Mounted
Toilet - Operation and Condition:Acceptable
Toilet - Master:
 |  |
Shower
Shower / Tub - Style: Wet Bath
Shower / Tub - Stains in Stall / Tub:No
Shower / Tub - Water Damage or Leaks:No
Shower / Tub - Glass Doors:Not Present
Shower / Tub - Soap Dish in Place:Yes
Shower / Tub - Door Latching Function:Yes
Shower / Tub - Towel Racks in Place:Yes
Shower / Tub - Curtain with Rod:Not Present
Shower / Tub - Condition:Acceptable
Shower / Tub - Door and Frame and Seals Condition:Acceptable
Shower/Tub - Operation and Condition:Acceptable
Shower:
Bathroom Sink
Bathroom Sink - Style: Single Bowl
Bathroom Sink - Type: Corian
Bathroom Sink - Faucet Working:Yes
Bathroom Sink - Faucet leaks at Stem:No
Bathroom Sink - Water Damage Under Sink:No
Bathroom Sink - P-Trap Holds Water:Yes
Bathroom Sink - Holds Water:Yes
Bathroom Sink - Hot and Cold Water Available:Yes
Bathroom Sink - Operation and Condition:Acceptable
Sink - Bathroom:
Furniture
Dinette / Table / Chairs
Dinette / Table / Chairs - Inspected: Yes
Dinette / Table / Chairs - Sign of Excess Wear: No
Dinette / Table / Chairs - Damages/ Repairs/ Replaced: No
Dinette / Table / Chairs - Fabric Tears/ Separation: No
Dinette / Table / Chairs - Fabric Matches Decor: Yes
Dinette / Table Area Converts to Bed: Yes
Dinette / Table / Chairs - Condition:Acceptable
Beds
Beds Inspected: Yes
Beds - Signs of Excess Wear: No
Beds - Fabric Damages/ Repairs/ Replaced: No
Beds - Fabric Tears/ Separation: No
Beds - Pillow Top Mattress: No
Beds - Bed Covers: Yes
Beds - Covers Match Decor: Yes
Beds - Condition:Acceptable
Cabinets
Cabinets / Dressers / Closets / Pantries Inspected: Yes
Cabinets / Dressers - Types of Hinges: Hidden
Cabinet - Type of Latch: Flush Pull Slam Latch
Cabinets / Dressers - Counter Top Damage or Scratches: No
Cabinets / Dressers / Closets / Pantries - Door Damage or Scratches: No
Cabinets / Dresser / Closets / Pantries - Previous Repairs: No
Cabinets / Dressers / Closets / Pantries - Damage or Scratches: No
Cabinets / Dressers / Closets / Pantries - Wood Rot or Broken: No
Cabinets / Dressers / Closets / Pantries - Condition:Acceptable
Safe
Safe Inspected: Not Present
Safe - Condition:Not Present
Electronics
TV - Front
Unit - Brand: Insignia
Unit - Model # / Serial #: NS-24F201NA23 / NS24H2400000E9
Antenna Power Booster Operates: Yes
TV Picks Up Local Channels: Yes
Remotes Operational: Yes
Unit Works Properly: Yes
Unit Cleaned and Maintained: Yes
Unit Properly Mounted and Secured: Yes
TV - Front:
Sound Bar
Unit - Brand: JBL
Remotes Operational: Yes
Unit Works Properly: Yes
Unit Cleaned and Maintained: Yes
Unit Properly Mounted and Secured: Yes
Report Attachments
PDFs
ATTENTION: This inspection report is incomplete without reading the information in these links/attachments. Note: If you received a printed version of this page and did not receive a copy of the report online, please contact your inspector for a printed copy of the attachments.
