This time-sensitive document was prepared for the client listed on the Cover Page of this report. Any reproduction, use, or resale of this document by individuals other than those listed on the report cover page, or their assigns, is not supported by the inspector and company.
Comment Key or Definitions
The following definitions of comment descriptions represent this inspection report. All comments by the inspector should be considered before purchasing this RV coach. Any recommendations by the inspector to service or replace suggest a second opinion or further inspection by a qualified RV technician. All costs associated with further inspection fees and service or replacement of item, component, or unit should be considered before you purchase.
Acceptable (A) = A visually observed item, component, or unit, and if no other comments were made, it appeared to be functioning as intended, allowing for normal wear and tear.
Fair (F)= The item or its components do not need immediate service, but wear and tear exist, and the item is not in optimum condition. Some may elect to service or replace this item now, while others may wait.
Poor (P) = The item, component, or unit is not functioning as intended, service or replacement is recommended, or needs further inspection by a qualified RV technician.
Not Inspected (NI)= The item, unit, or component was not inspected, and no representations were made as to whether or not it was functioning as intended. A statement of reason for not inspecting may be made.
Not Present (NP) = This item, component, or unit is not in this RV.
NRVIA Standards of Practice
Purpose, Scope, and General Statements
1 – The purpose of the Standards of Practice is to establish a uniform standard for the company's RV Inspector to inspect and report objectively the conditions of a Recreational Vehicle and its components.
2 – The Standards describe the components, and systems included in an RV Inspection.
3 – The Standards apply to motorized and towable types of RVs as defined by the RV Industry.
4 – The Standards apply to a visual inspection of those areas, components, and systems that are readily accessible to determine at the time of inspection that they are performing their intended function without regard to life expectancy.
5 – The RV inspection aims to identify visible and operational defects as permitted by the current conditions that, in the judgment of the RV Inspector, will adversely affect the function or integrity of the Recreational Vehicle's items, components, and systems.
6 – RV Inspections performed under the Standards of Practice are visual and rely upon the RV inspector's opinion, judgment, education, and experience. They are not intended to be technically exhaustive.
7 – RV Inspections shall be performed in a time period sufficient to allow compliance with the provisions of the NRVIA Standards of Practice.
8 – RV Inspections performed under the Standards shall not be construed as being a compliance inspection of any code, governmental regulation, or manufacturer’s installation instructions or procedures. If a law, statute, or ordinance prohibits a procedure recommended in the Standards, the RV Inspector is relieved of the obligation to adhere to the prohibited part of the Standards.
9 – RV Inspections performed under the Standards are not an expressed, implied warranty or guarantee of adequacy, performance, or useful life of any RV, any of its components or systems.
10 – Only those items specifically listed on the RV Inspection Report will be included in the RV Inspectors evaluation.
11 – The RV Inspector shall report any system or component included in the Standards of Practice that were present during the RV Inspection but were NOT inspected and provide the reason they were not inspected.
General Limitations and Exclusions
1 – RV Inspections performed under the company's Standards of Practice exclude any items concealed or not readily accessible to the RV Inspector. The RV Inspector is not required to move furniture or personal or stored items. Lifting floor covering, and accessing interior walls and ceilings which could damage or destroy the components or systems being evaluated is not part of the RV Inspection.
2 – The determination of the presence of damage caused by insects or water is only to be evaluated by observation with an opinion being rendered by the RV Inspector that is to make the client aware of the issue.
3 – Excluded from the Standards of Practice is the determination of indoor air quality of the RV and its consequence of physical damage, toxicity, odors, waste products, and noxiousness.
4 – The RV Inspection and report are opinions only that are based upon the visual observation of the existing conditions of the RV at the time of the RV Inspection. The report is not intended to be construed as a guarantee, warranty, or any form of insurance. The RV Inspector will not be responsible for any service, repairs, or replacement concerning the RV or its contents.
5 – The RV Inspector is not required to enter any premises that visibly show a threat to the safety of the RV Inspector or others nor inspect any area or component that poses a danger to the RV Inspector or others.
6 – The NRVIA Certified RV Inspector will inspect and report on the RV items listed in this report and their condition during the RV Inspection. Any additional items of inspection will be dependent upon any agreements that are made between the client and the RV Inspector.
How to Read This Report
Getting the Information to You
This report is designed to deliver important and technical information in a way that is easy for anyone to access and understand. If you are in a hurry, you can take a quick look at our "Summary Page” and quickly get critical information for important decision-making. However, we strongly recommend that you take the time to read the full Report, which includes digital photographs, captions, diagrams, descriptions, videos, and hot links to additional information.
The best way to get the layers of information that are presented in this report is to read your report online, which will allow you to expand your learning about your RV. You will notice some words or series of words highlighted in blue and underlined – clicking on these will provide you with a link to additional information.
This report can also be printed on paper or as a PDF document.
Chapters and Sections
This report is divided into chapters that parcel the RV coach into logical inspection components. Each chapter is broken into sections that relate to a specific system or component of the RV coach. You can navigate between chapters with the click of a button on the left-side margin.
Most sections will contain some descriptive information in black font. Observation narrative, done in colored boxes, will be included if a system or component is found to be significantly deficient in some way or if we wish to provide helpful additional information about the system or the scope of our inspection. If a system or component of the RV was deemed to be in satisfactory or serviceable condition, there may be no narrative observation comments in that section and it may simply say “tested,” or “inspected.”
Observation Labels
All narrative observations are colored, numbered, and labeled to help you find, refer to, and understand the severity of the observation. Observation colors and labels used in this report are:
- Life Safety Issue:The following items indicate that the condition is a LIFE SAFETY ISSUE. They could cause accidents or harm. It is recommended that a qualified RV technician further evaluate and correct the identified issue before the unit is occupied.
- Major Issue:The following items indicate that the condition is a MAJOR ISSUE. They can impact the longevity of the vehicle, can be a possible costly repair, and/or warrant immediate repair. It is recommended that a qualified RV technician further evaluate and correct the identified issue as needed.
- Minor Issue:The following items indicate that the condition is a MINOR ISSUE. They do not impact the operation of the vehicle and can be repaired at a later date. It is recommended that a qualified RV technician further evaluate and correct the identified issue as needed.
- Notice / Comment:Refers to aside information and /or any comments elaborating on descriptions of systems in the RV or limitations to the RV inspection.
- Description:Detailed description of various aspects of the coach noted during the inspection.
Summary Page
The Summary Page is designed as a bulleted overview of all the observations noted during the inspection. This helpful overview is not a substitute for reading the entire inspection report. The entire report must be read to get a complete understanding of this inspection report as the Summary Page does not include photographs or photo captions.
Summary
Life Safety Issues

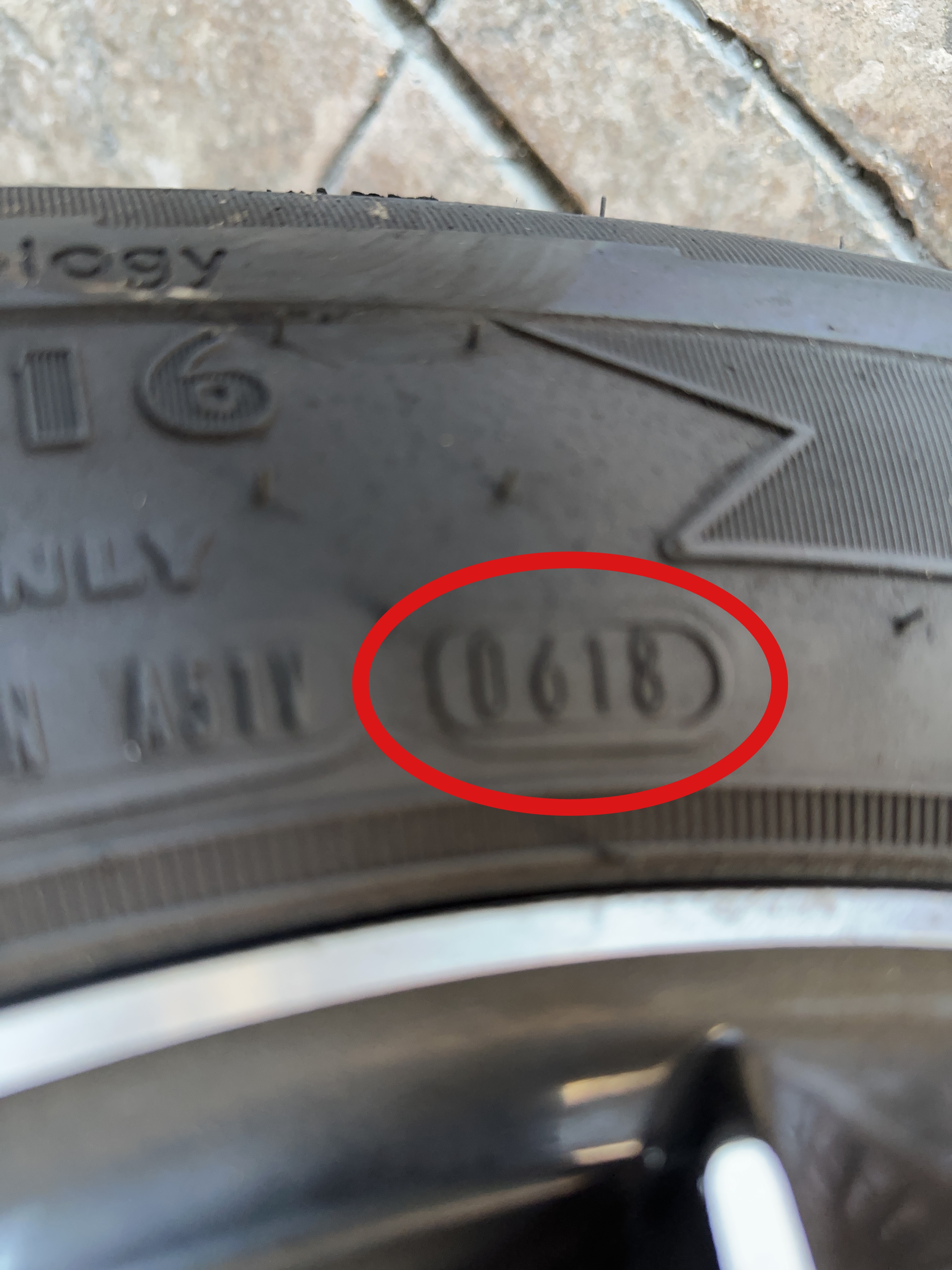

- TW-1 Tires and Wheels - Curbside Front-Tire/Wheel:
The age of the tire is listed as week 06 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).

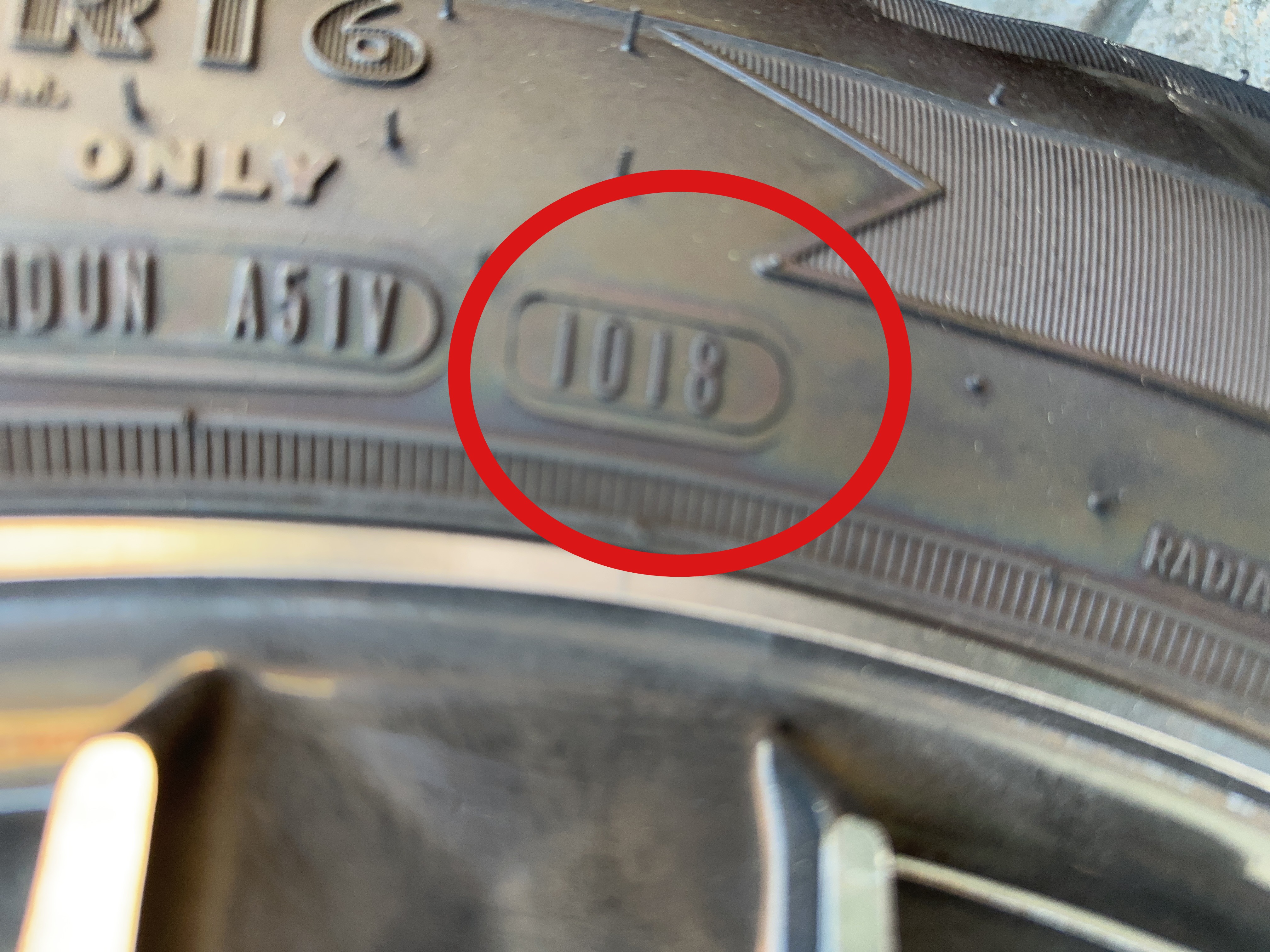

- TW-2 Tires and Wheels - Curbside Rear-Tire/Wheel:
The age of the tire is listed as week 10 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).

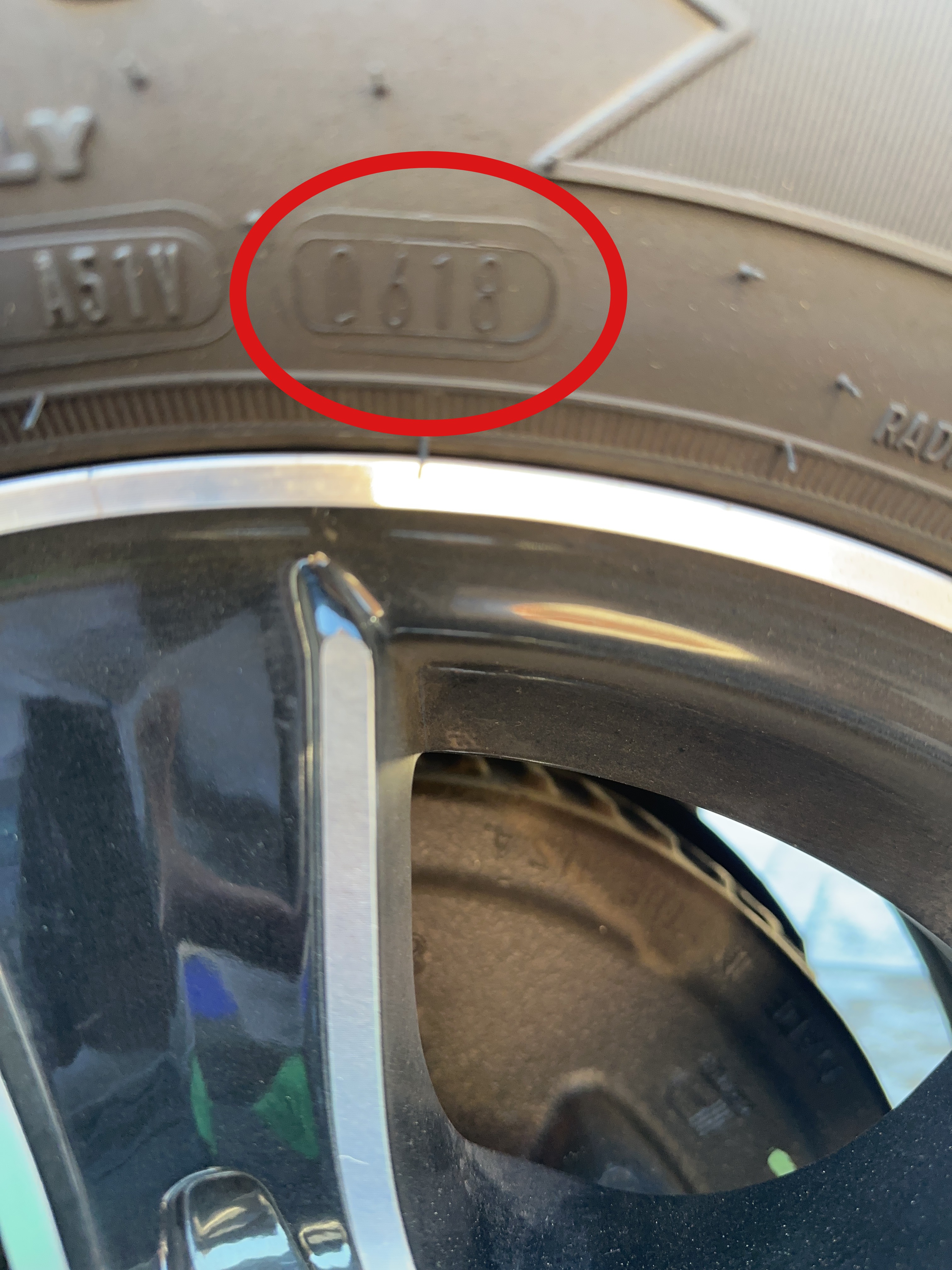

- TW-3 Tires and Wheels - Streetside Rear-Tire/Wheel:
The age of the tire is listed as week 06 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).

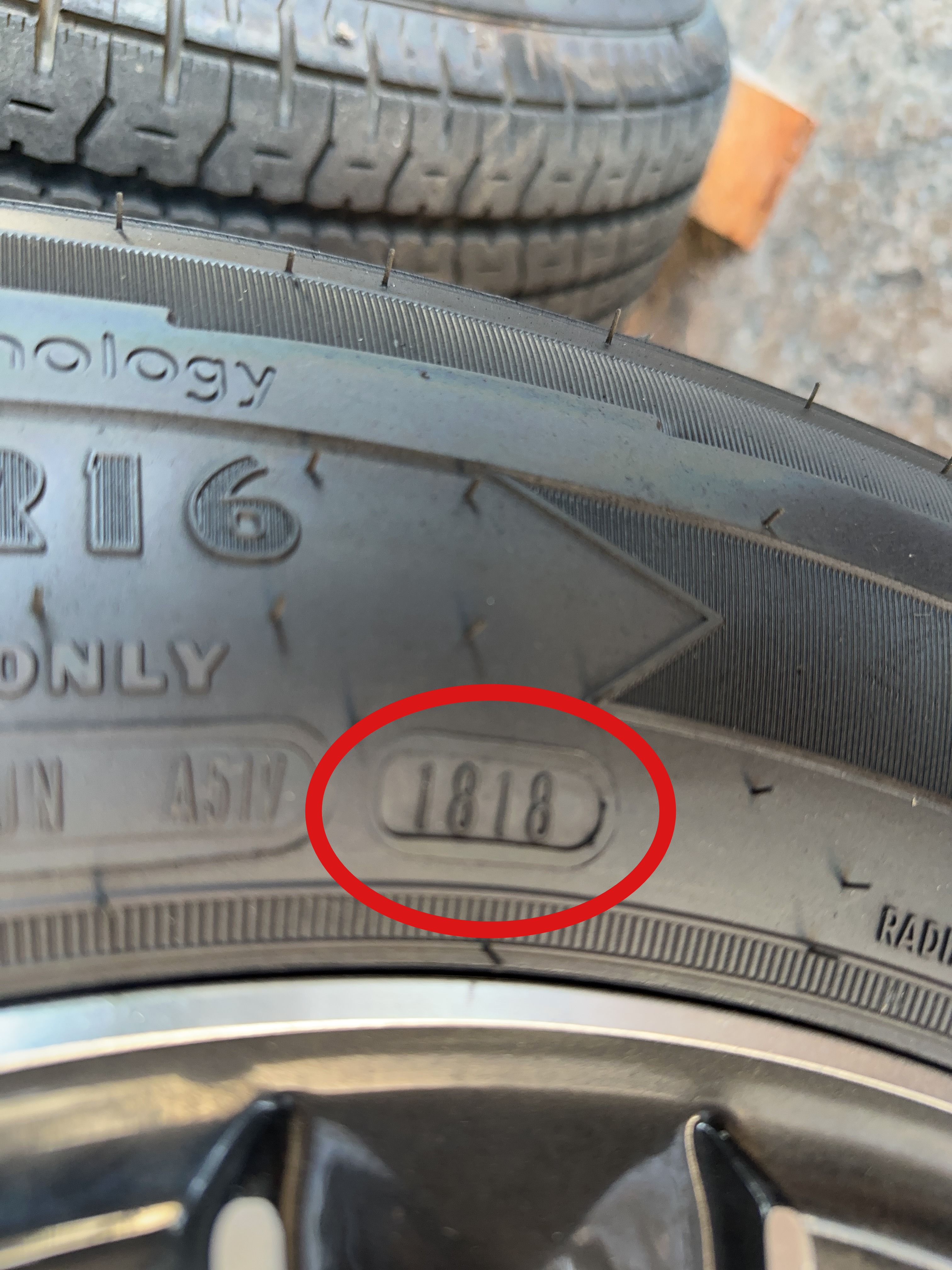

- TW-4 Tires and Wheels - Streetside Front-Tire/Wheel:
The age of the tire is listed as week 18 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).

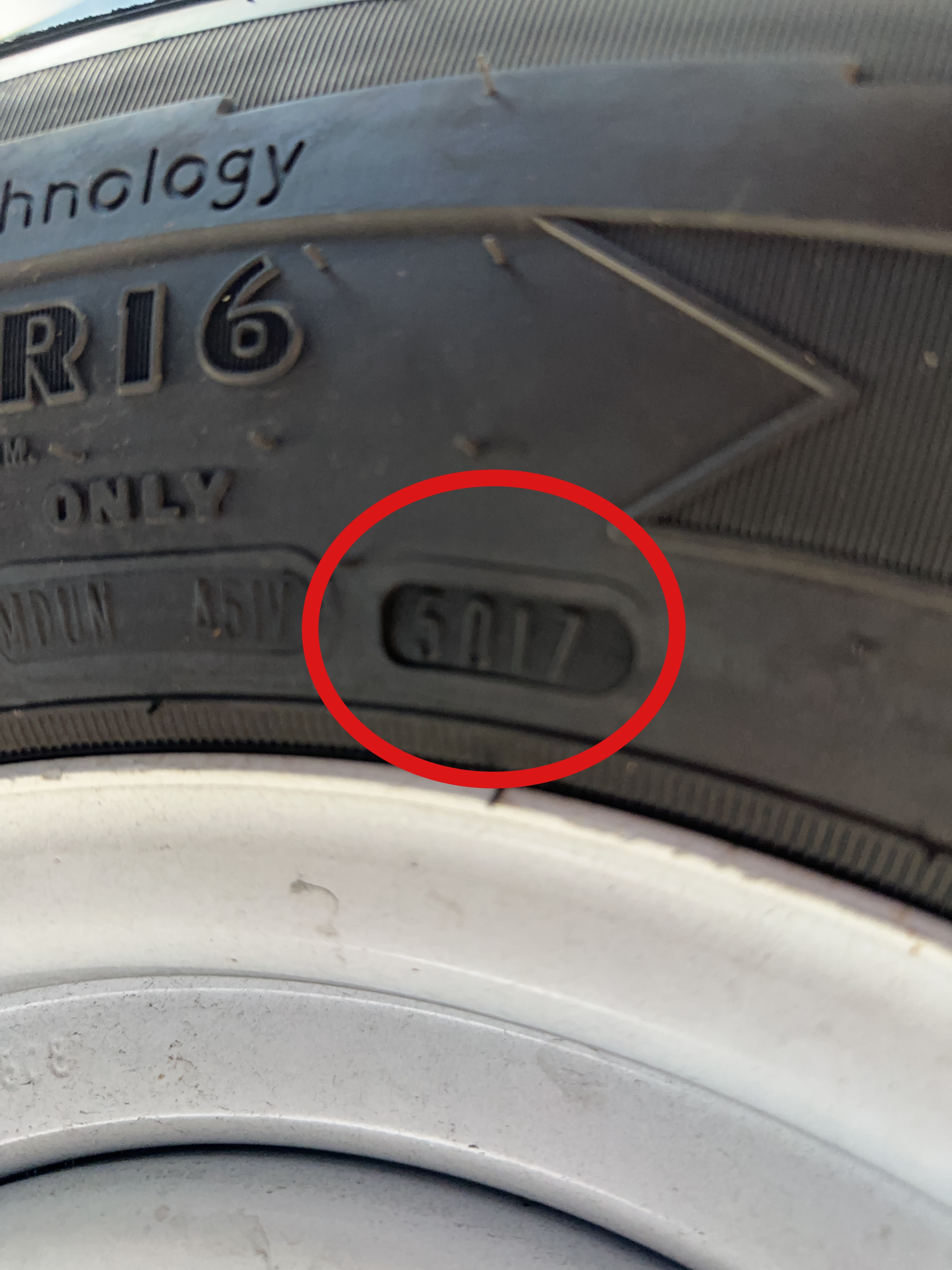

- TW-5 Tires and Wheels - Spare-Tire/Wheel:
The age of the tire is listed as week 50 of the year 2017, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
- LPSLT-1 LP (Propane) System Leak Test - LP Leak / Drop Test:
The inspector was unable to connect to the outside quick connect port or access the system via the stove top to perform an LP leak test. It is recommended that a qualified RV technician perform an LP Leak test before using the coach. Until such a test is performed, this is considered a life safety issue.
- LSC-1 Life Safety Components - LP Detector:
Due to age, the inspector recommends replacing the LP detector. This is a Life Safety Issue, a recommended replacement would be;

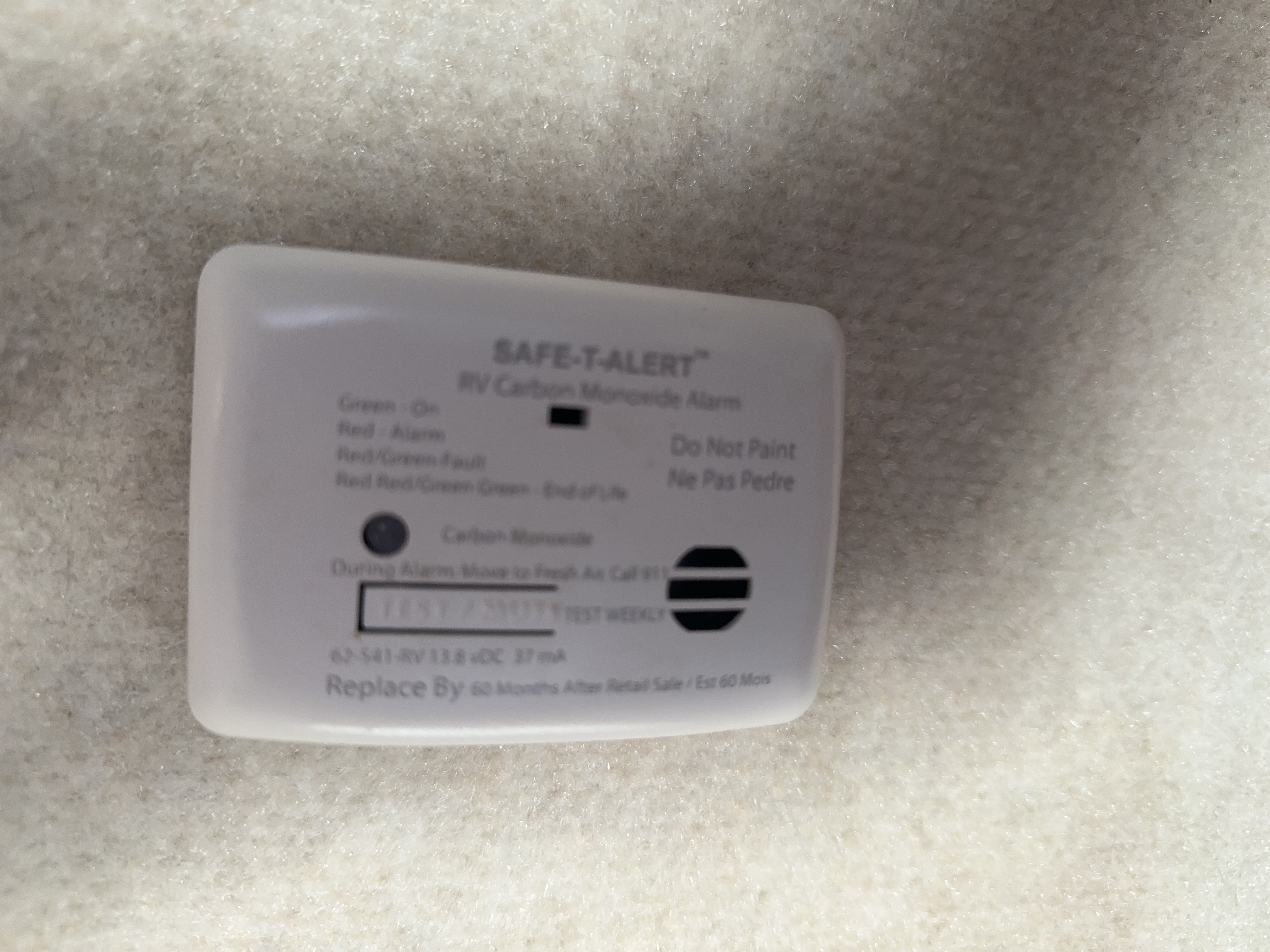

- LSC-2 Life Safety Components - CO Detector:
The carbon monoxide (C0) detector near the bedroom was manufactured September of 2018. Due to its age, it is recommended that a qualified RV technician replace it before the RV is occupied. This is a life safety issue.
- LSC-3 Life Safety Components - Smoke Detector:
The Inspector observed that a smoke detector was not present. It is recommended that a qualified RV technician install one before the RV is occupied.
Major Issues
- RE-3 Roof Exterior - Vents:
The plumbing vent located in the center of the RV close to curbside is missing the cap. This can allow debris, critters, and water to enter the vent pipe. It is recommended that this be repaired by a Qualified RV Technician.
Minor Issues
- RE-4 Roof Exterior - Vents:
There is a bubble in the lap sealant on the backside of the center skylight. There are two screws at the streetside rear corner of the rear skylight that are not completely covered by the lap sealant. This could allow for water intrusion. It is recommended that this be cleaned and resealed by a qualified RV technician.
- S-1 Slideouts - Streetside Rear Slideout:
The sweep seal at the top of the rear streetside slideout did not fully come out along the full length of the slideout when extended. This could allow for water intrusion. It is recommended that this be further evaluated by a qualified RV technician.
- WS-1 Water Systems - On-Board Water System:
The inspector observed that the fresh water pump cycled every few minutes, for just a few seconds, while using the onboard water system. It is recommended that this be repaired by a qualified RV technician.

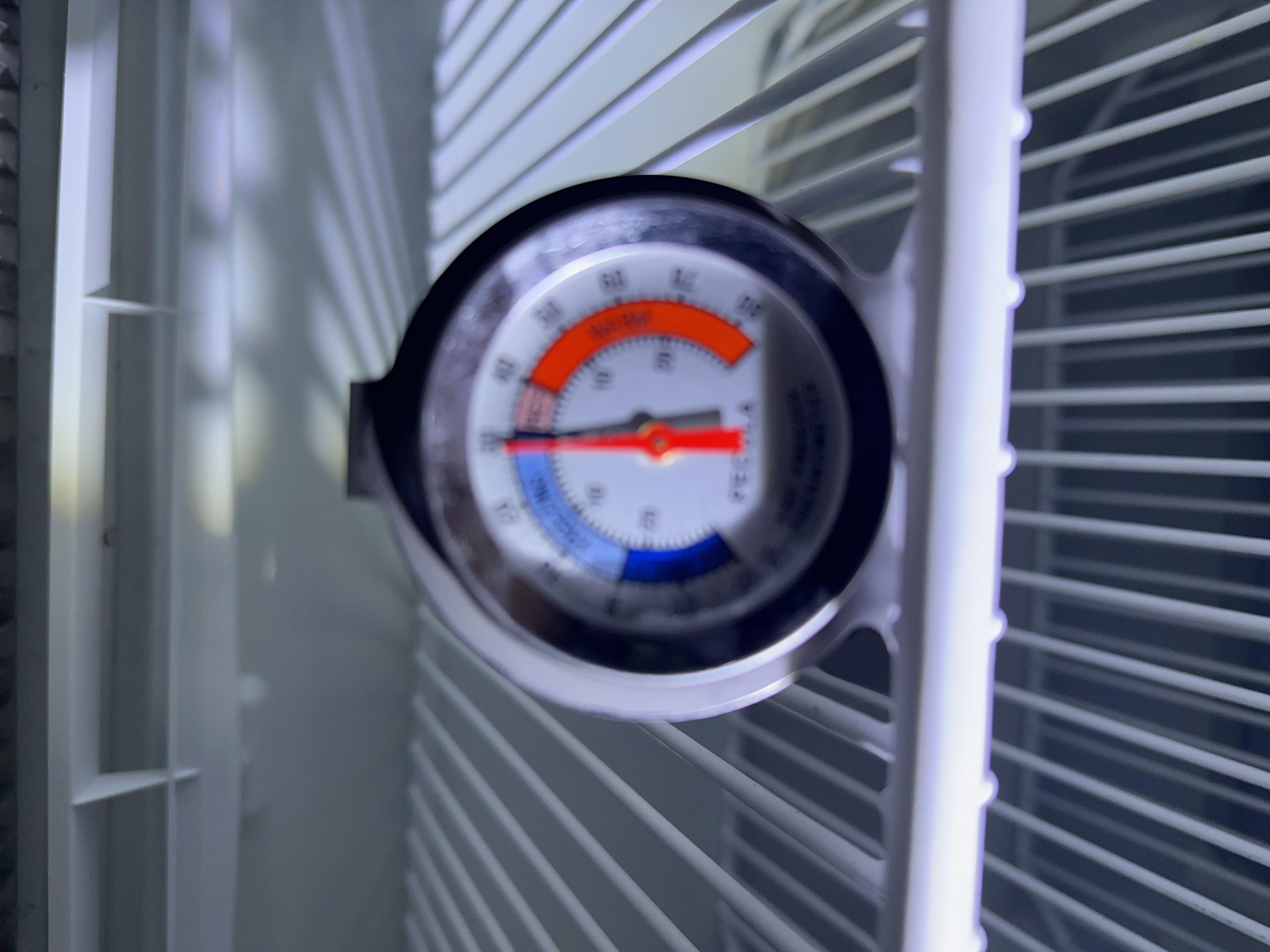

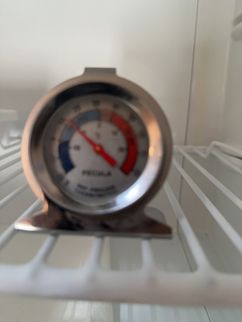

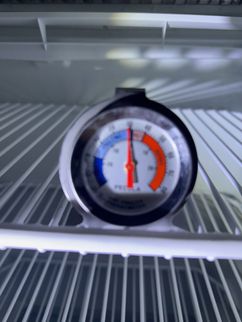

- AK-1 Appliances: Kitchen - Refrigerator:
The inspector observed that the refrigerator light does not work.

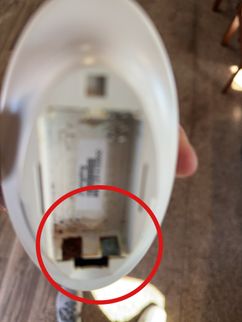

- I-1 Interior - Ceiling Vents and Skylights:

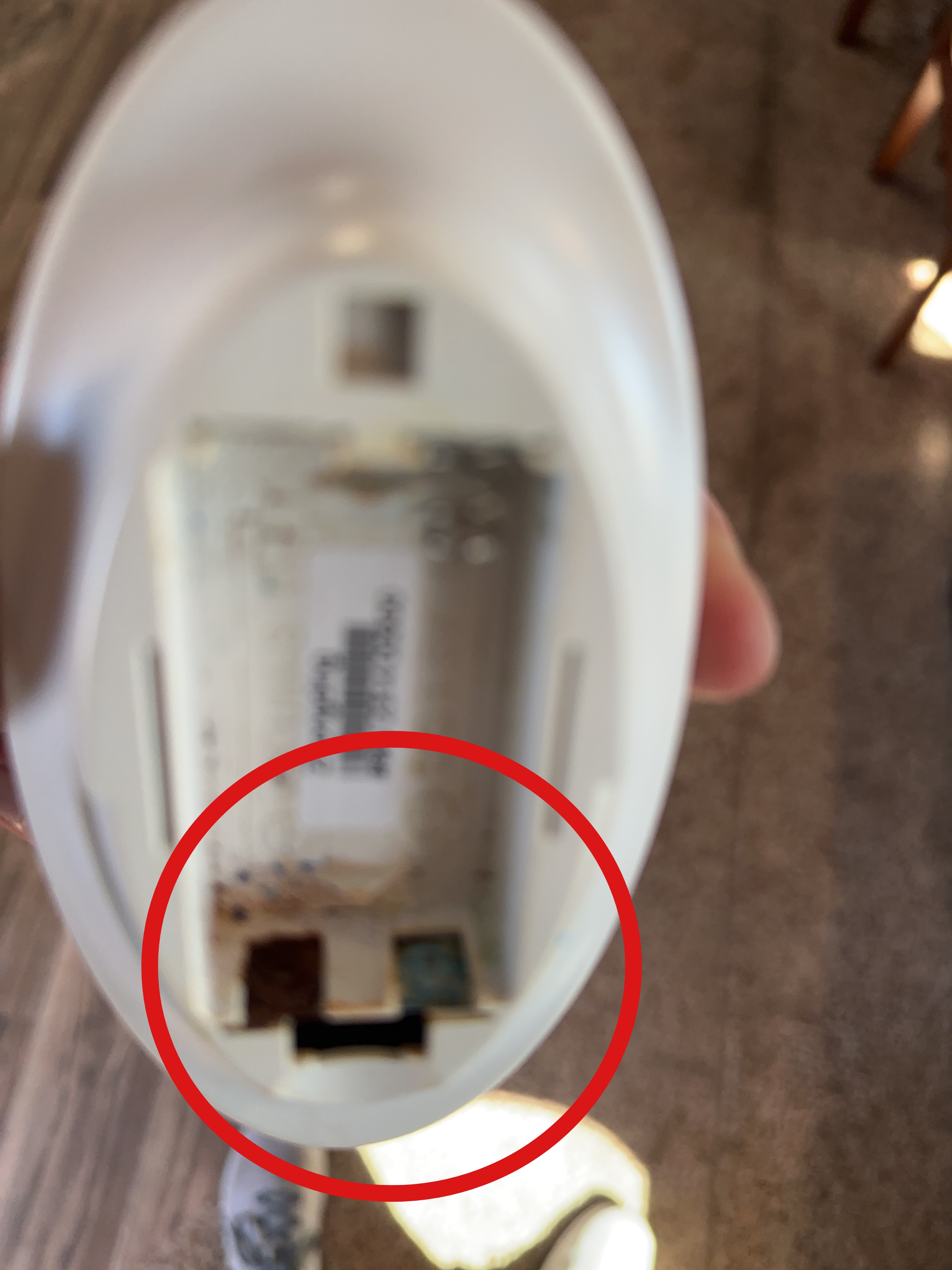

The remote for the kitchen vent fan has corroded and broken contacts and does not function. It is recommended that this be replaced.
Notice / Comment
- VI-1 Vehicle Information - RVIA / Canadian Seal:
The inspector observed that this coach does not have an RVIA Seal and therefor may not conform to all of the NFPA 1192 Recreational Vehicle standards. It should be noted that there are some campgrounds that will not allow entrance without a RVIA seal and some states require RVIA certification for licensing.
- VI-2 Vehicle Information - Build Sheet:
This coach did not have a build sheet that listed the major components installed in it, along with their manufacture, model number, and serial number.
- RE-1 Roof Exterior - Roof:
The inspector observed a very fine line in the lap sealant along the Rear Cap / Roof Membrane seam at the curbside corner. It is difficult to tell if this is an actual crack in the sealant or dirt. It is recommended that the sealant be cleaned and further evaluated.
- RE-2 Roof Exterior - Vents:
There are no exterior vent covers present on this unit. Exterior vent covers aid in allowing airflow and reducing the potential to allow water in an open vent.
- RE-5 Roof Exterior - Air Conditioner Rear:
There are two small wasp nests located at the rear AC Coils. It is recommended that these be removed.
- RE-6 Roof Exterior - Antennas:
The TV antenna is a Winegard Air 360. This style of TV antenna does not raise or lower.
- ES-1 Exterior Sidewalls - Front Cap / Wall:
There is a small black mark located on the streetside lower corner of the front cap.
- ES-2 Exterior Sidewalls - Curbside - Sidewall:
There are light scratches located on the curbside sidewall above the awing.

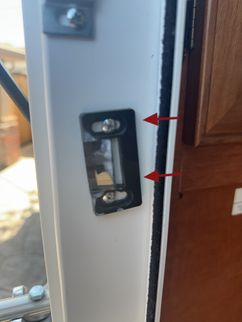

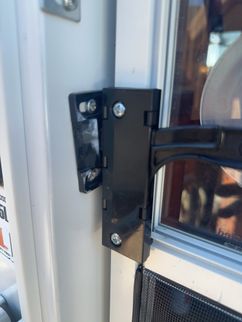

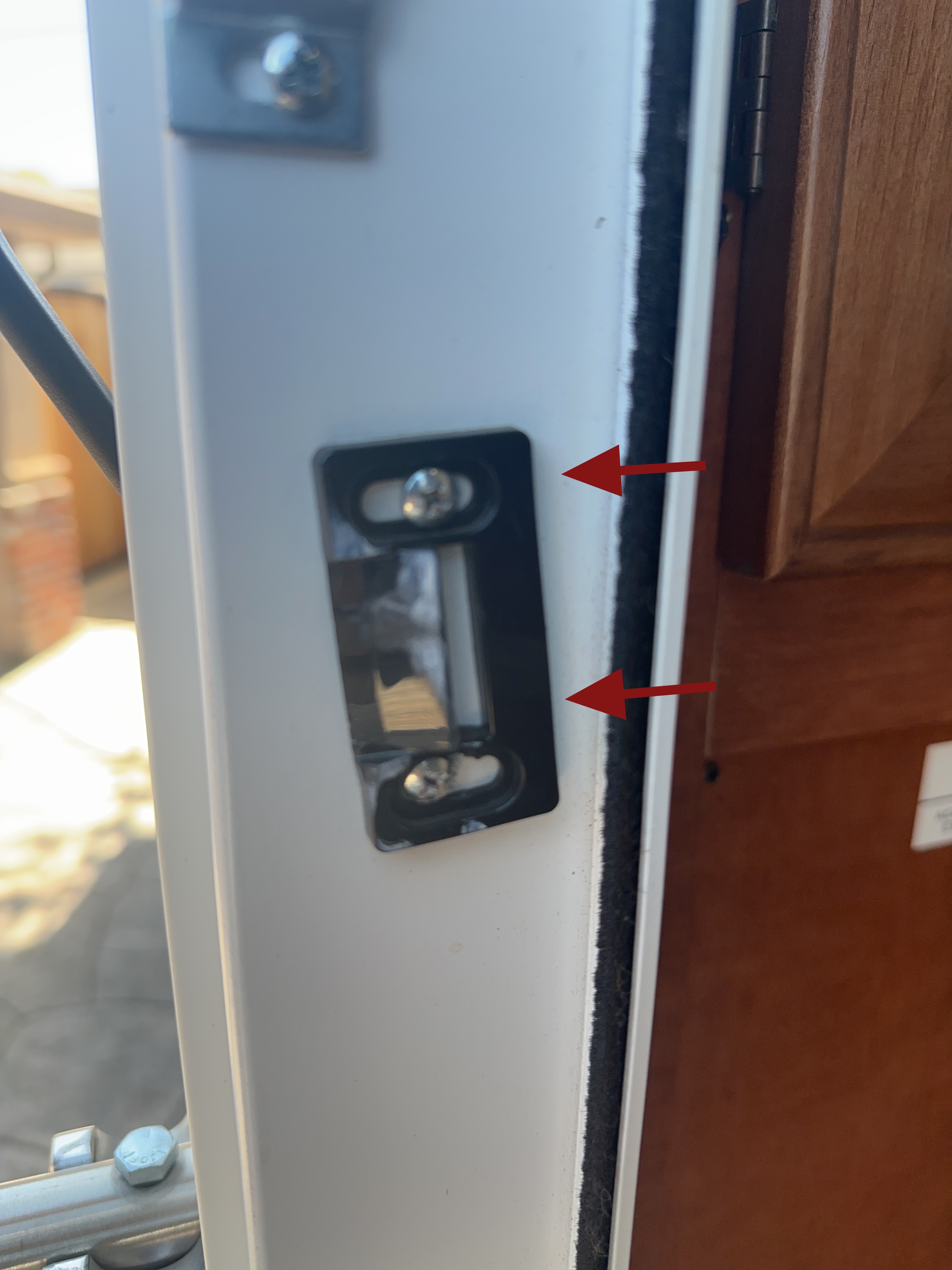

- ED-1 Entrance Doors - Main Entry Door:

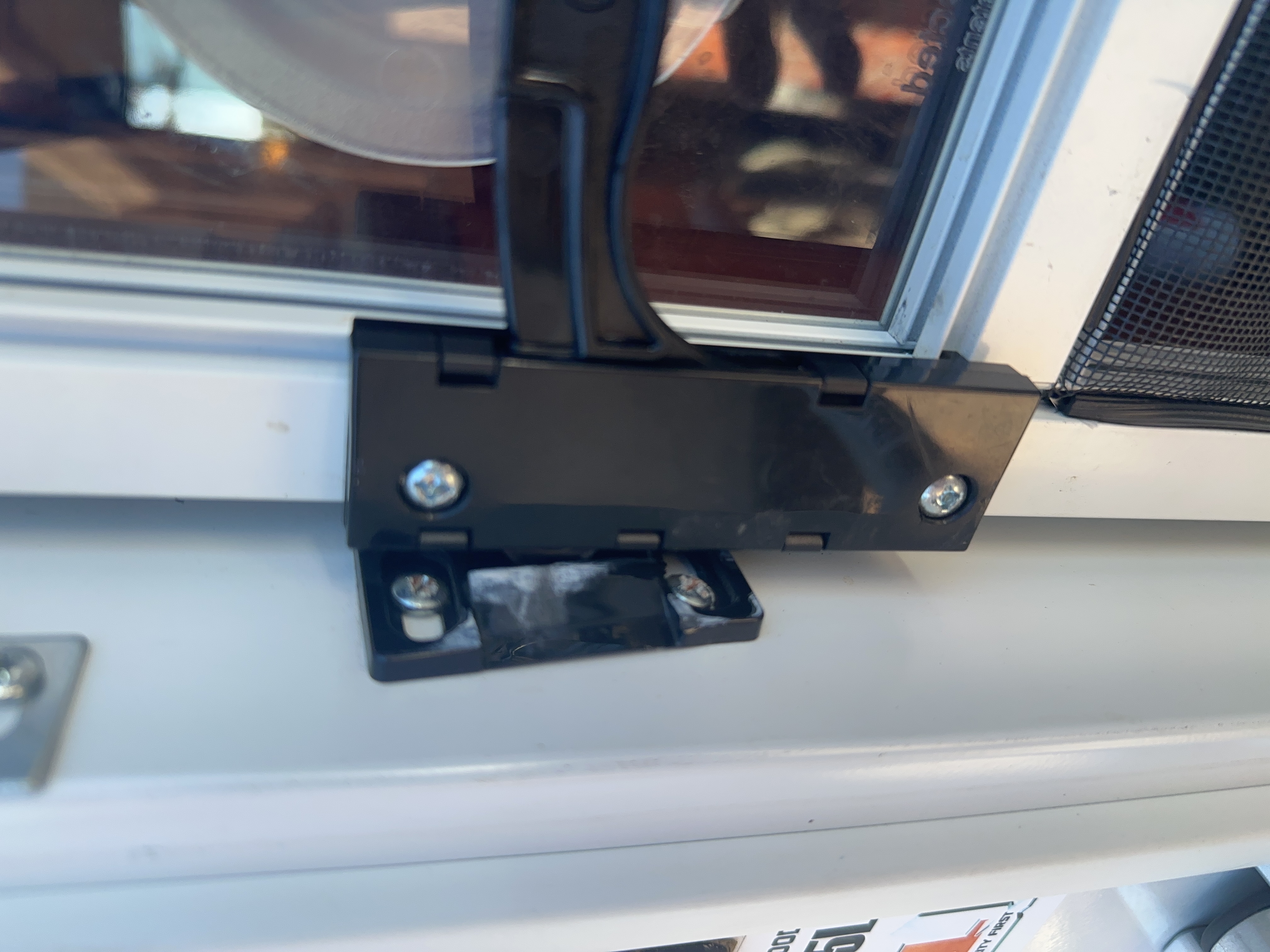

The wall mounted portion of the screen door latch is not mounted correctly. It is recommended that this be serviced by a qualified RV Technician.

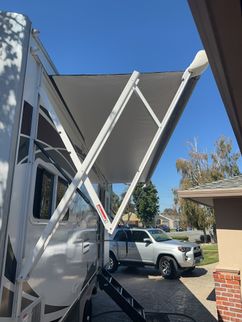

- A-1 Awnings - Front Patio Awning:
The inspector could not fully extend the awning due to a lack of space in the test area.

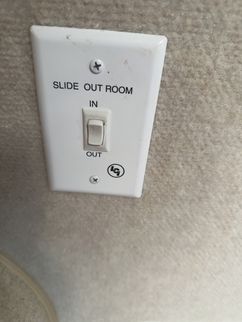

- S-2 Slideouts - Streetside Front Slideout:
The switch to activate the streetside front slideout is located on the ceiling of the bedroom.

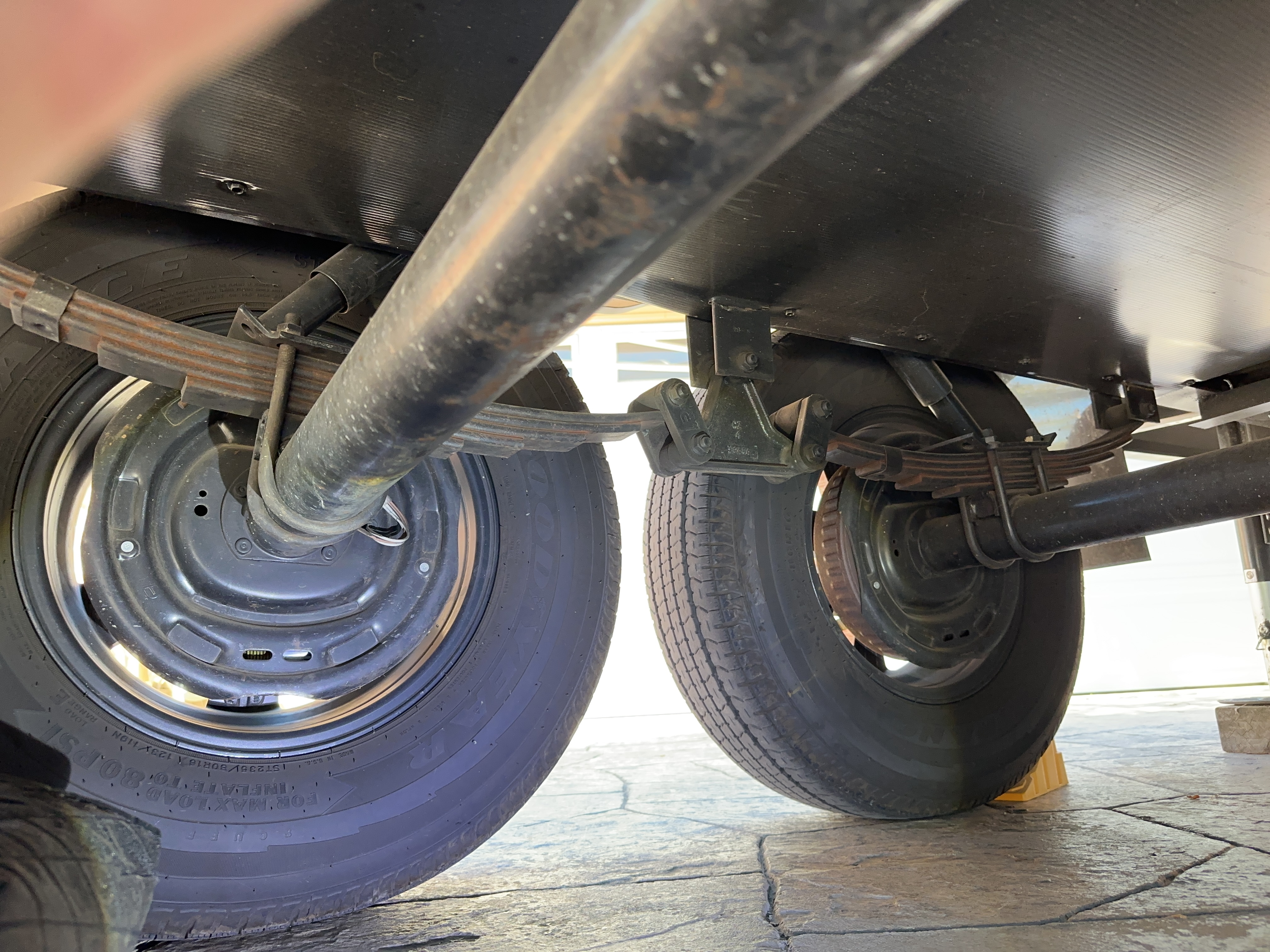

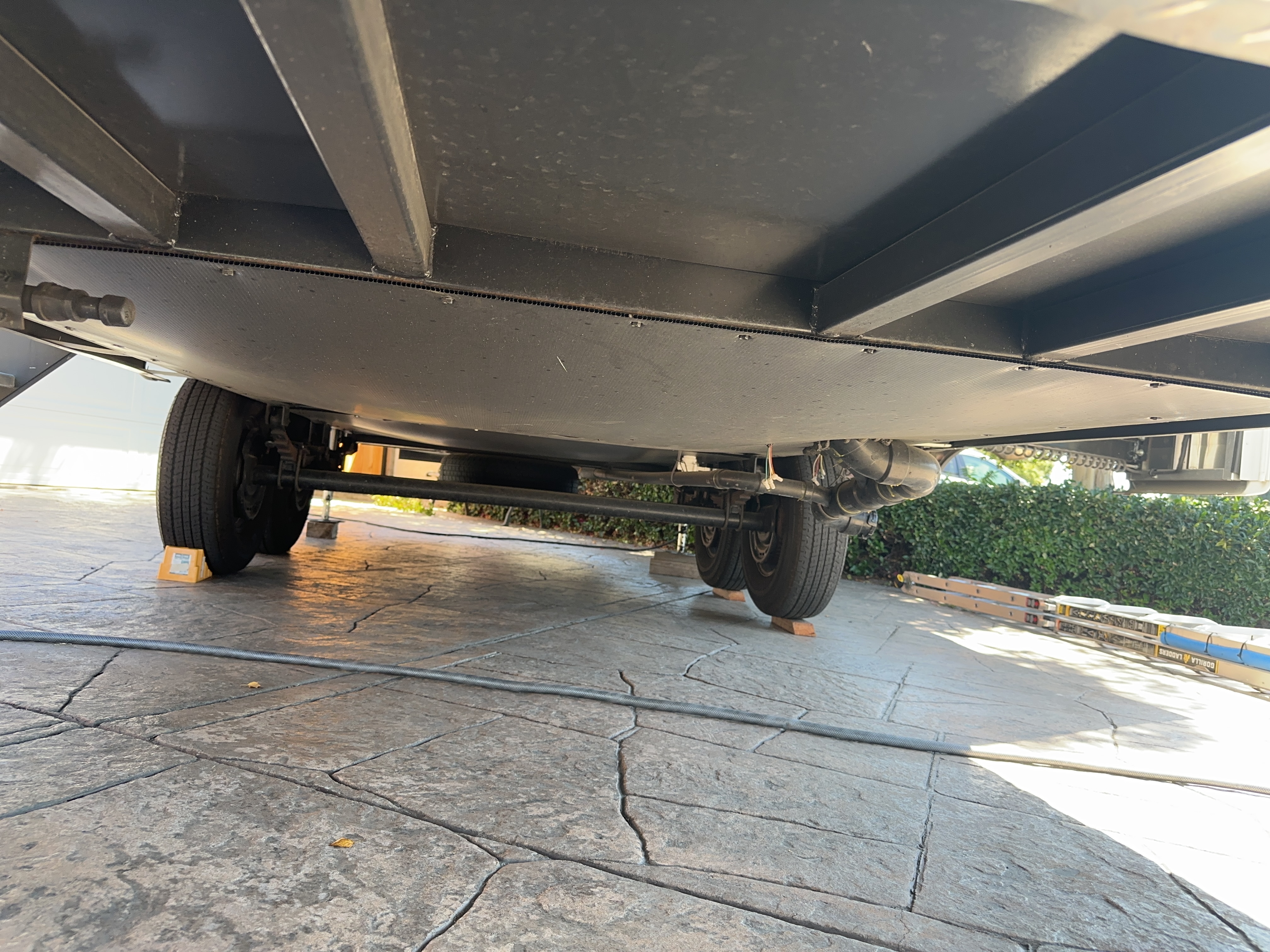

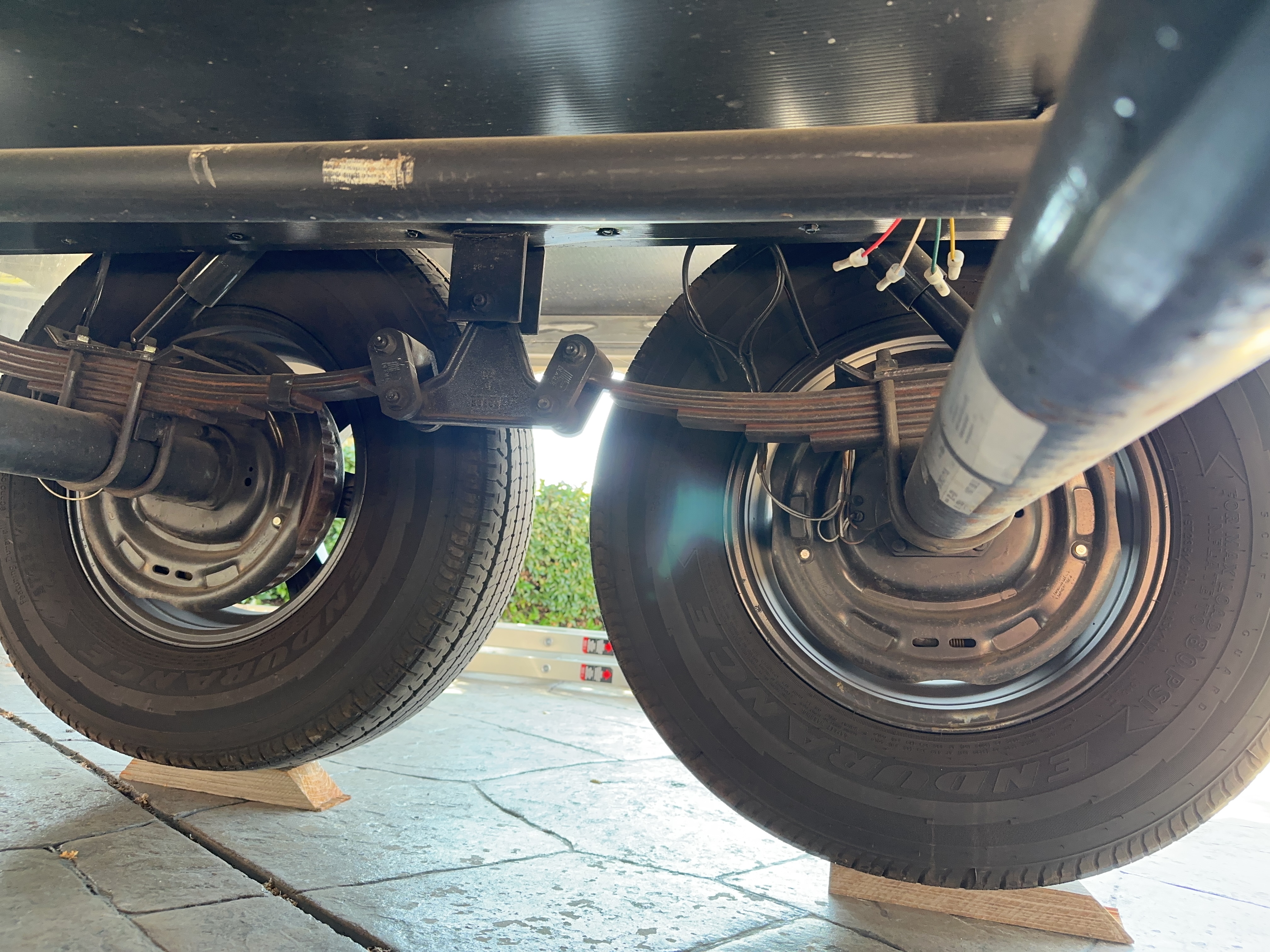

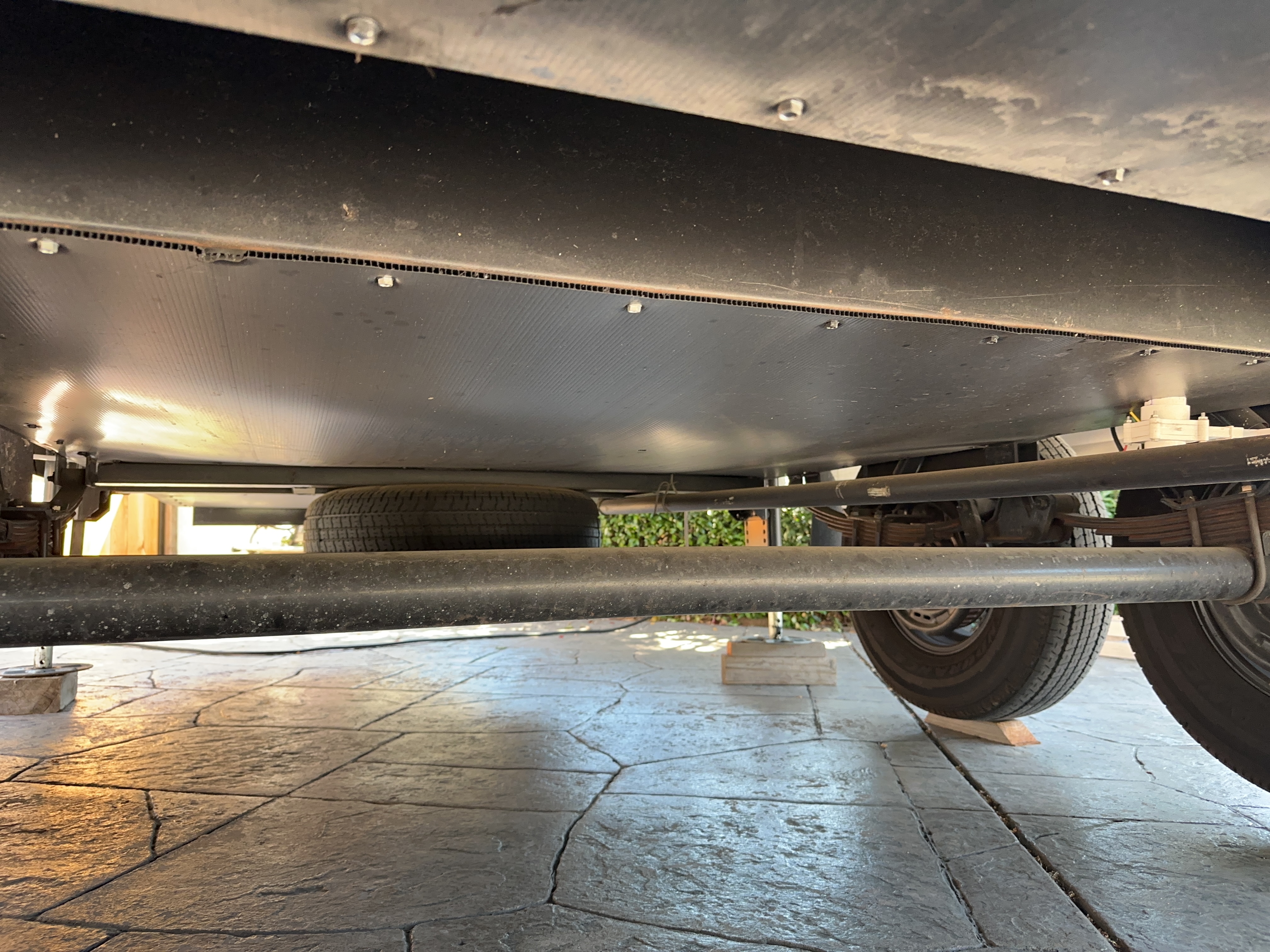

- TG-1 TT-Running Gear - Running Gear:
The inspector does not remove the wheels to check wheel bearings and brake pads. It is recommended that the Dexter maintenance manual for the axles used on this coach be reviewed and followed including lubricating the bearings annually.
- TG-2 TT-Running Gear - Running Gear:
The inspector recommends that the RV owner be familiar with the frame, chassis, and undercarriage. That way, when doing pre-trip, mid-trip, and post-trip inspections, the owner knows what everything is supposed to look like and can identify anything out of place.

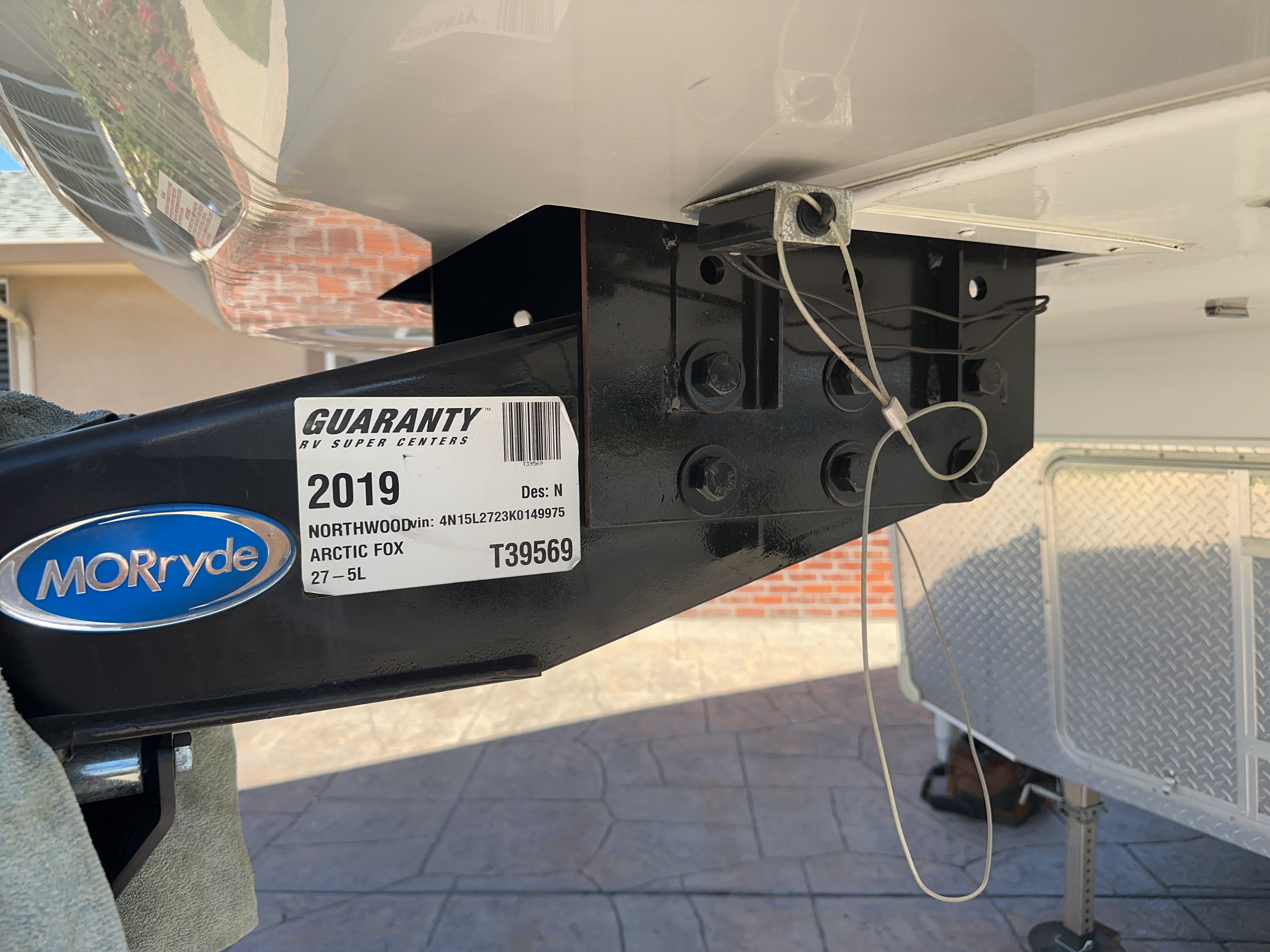

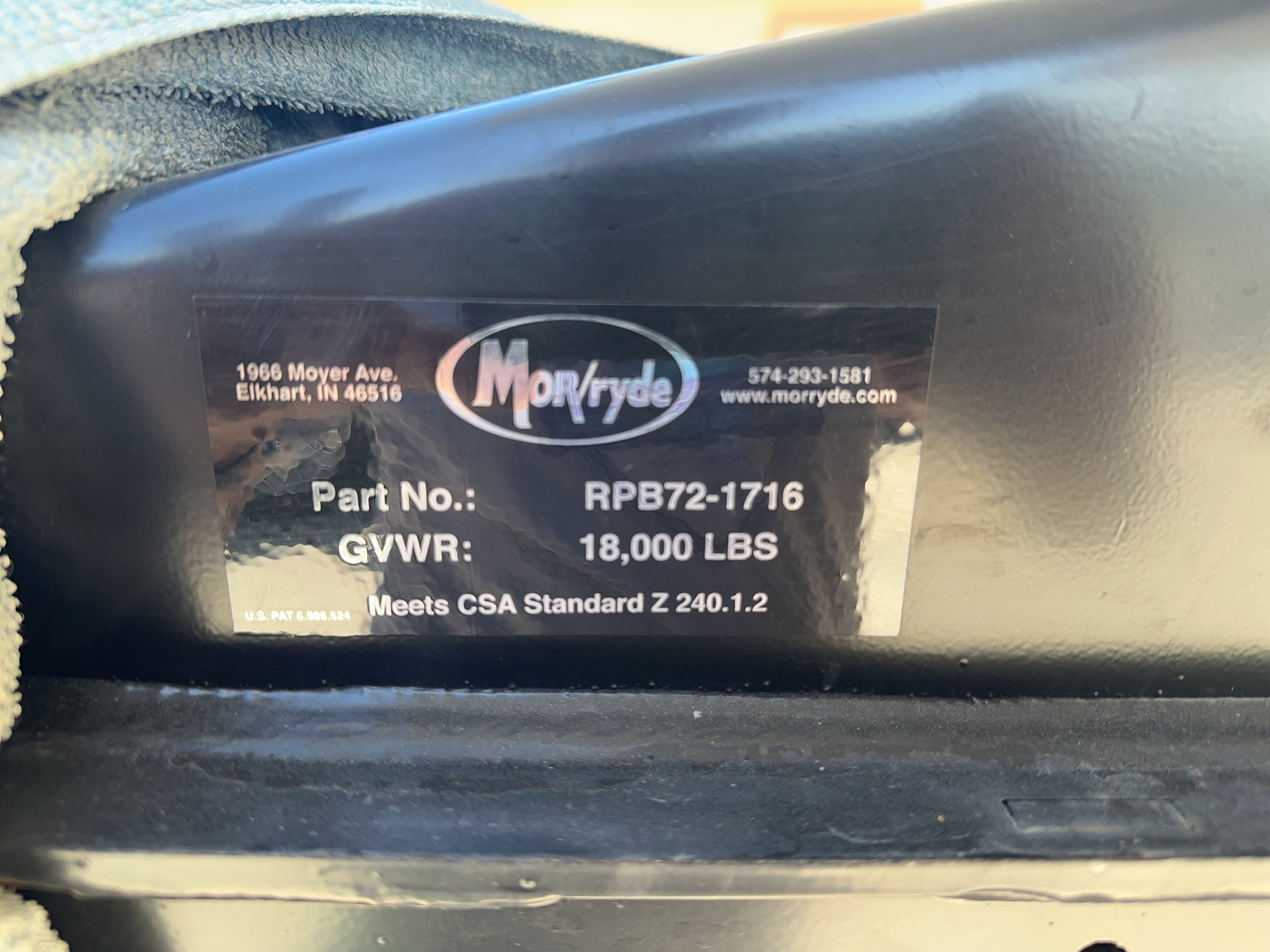

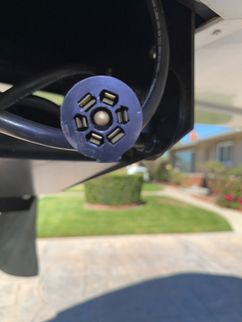

- TLSH-1 TT- Leveling System & Hitch - 7-Pin & Breakaway:
The Breakaway switch is mounted with only one screw and can move slightly. It is recommended this be more securely fastened.
- WS-2 Water Systems - On-Board Water System:
When the on-board water pump cycled on there was a slight rattle/vibration that could be heard in the bathroom. It is recommended that this be further evaluated by a qualified RV technician.
- WS-3 Water Systems - Gray Water Tank:
There was no waste water connection provided during the inspection, therefore the gray water tank was unable to be inspected. It is recommended that this be evaluated by a qualified RV technician when a waste water connection becomes available.
- WS-4 Water Systems - Black Water Tank:
There was no waste water connection provided during the inspection, therefore the black water tank was unable to be inspected. It is recommended that this be evaluated by a qualified RV technician when a waste water connection becomes available.

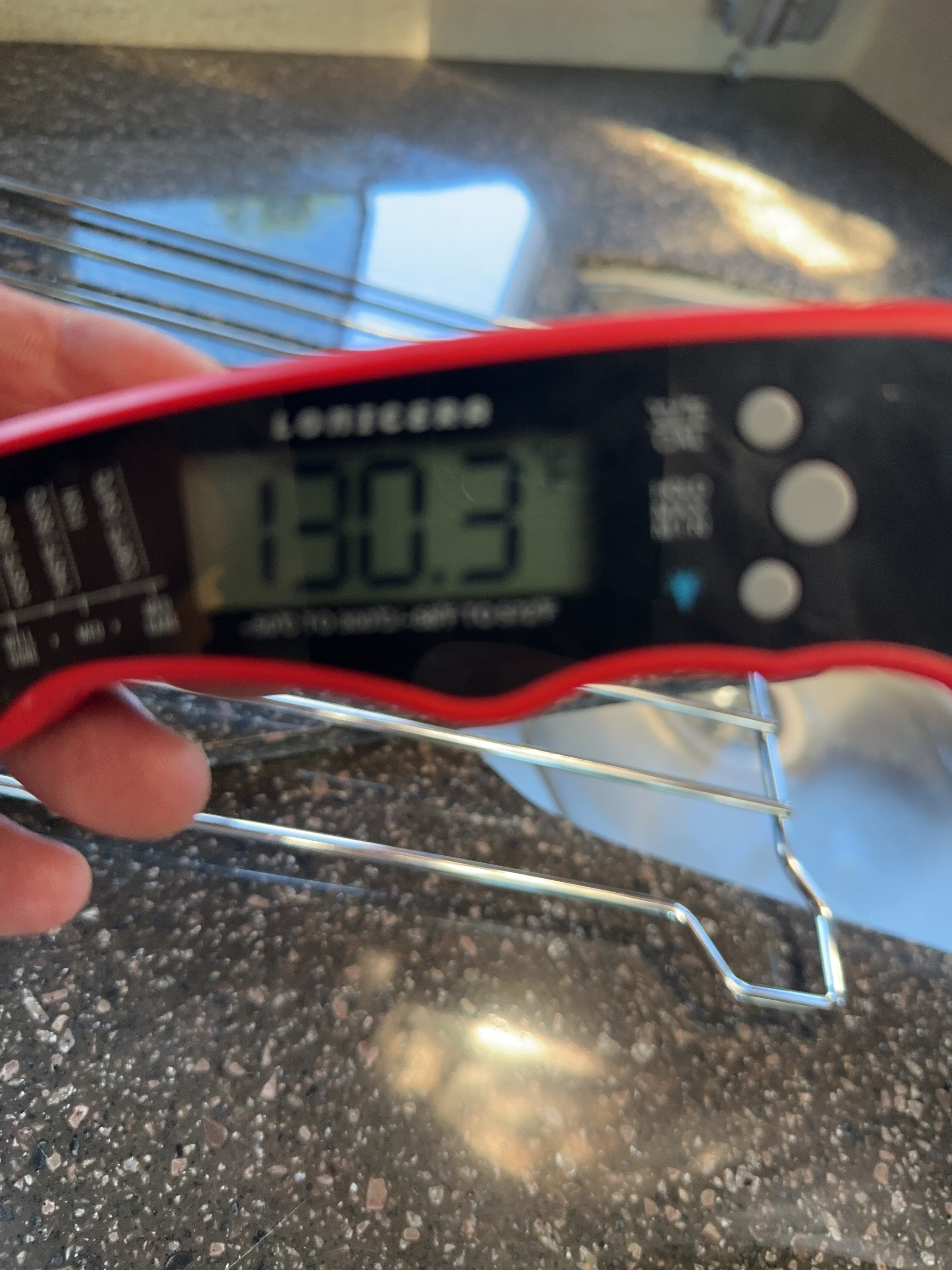

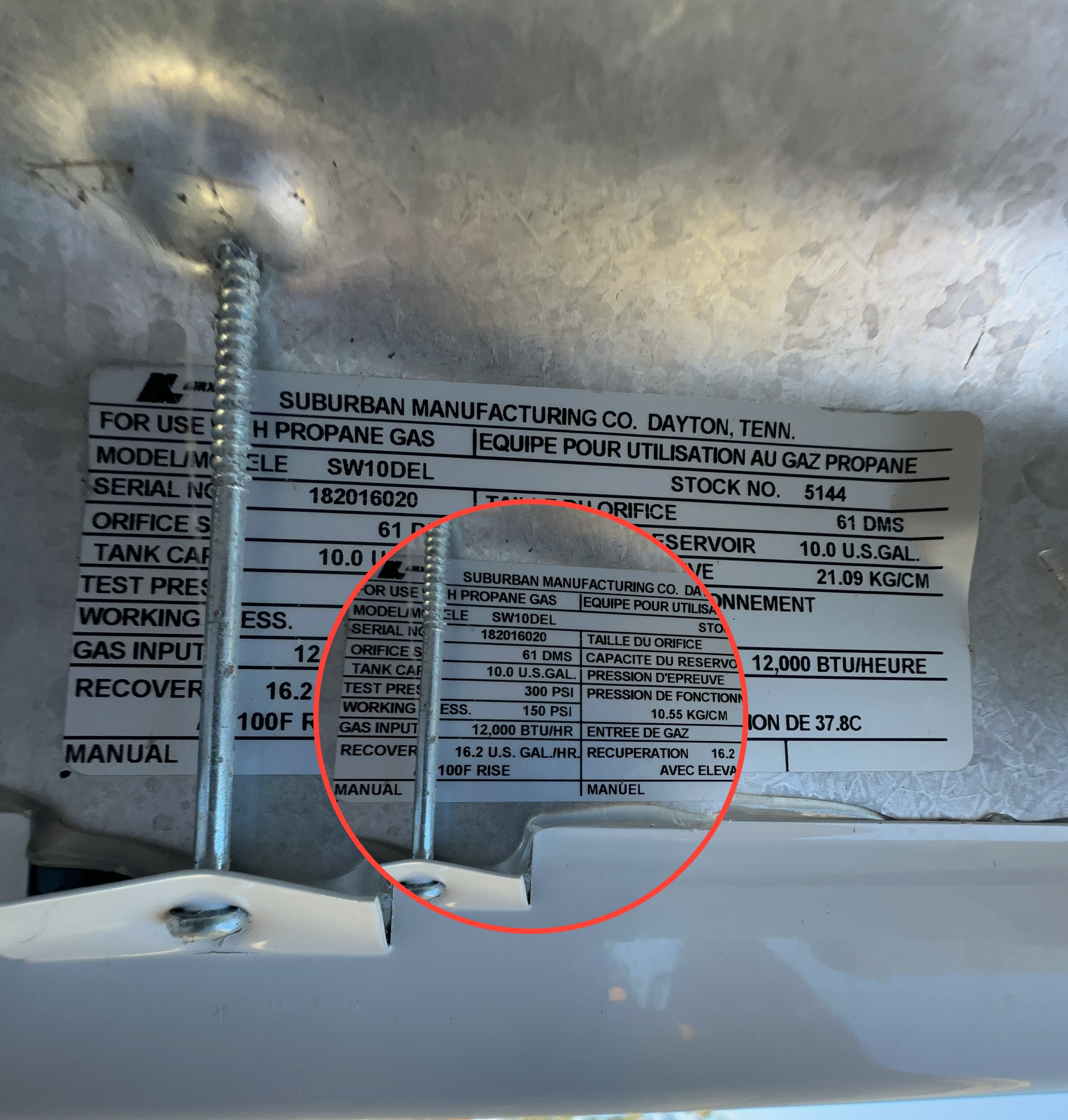

- AO-1 Appliances: Other - Water Heater:
Atwood/Suburban water heaters require an anode rod, which requires replacement. The inspector observed that this coach did not have an anode rod installed as required by the manufacturer. A qualified RV technician is recommended to install the anode rod.
- AO-2 Appliances: Other - Water Heater:
Dauber screens have been installed. It is recommended that the owner's manual for the appliance be consulted to ensure the manufacturer approves the use of them. For certain manufacturer's a dauber screen can void the warranty.
The Full Report
Vehicle Information
VIN Information
RVIA / Canadian Seal
Manufacture Information
State License Plate
Build Sheet

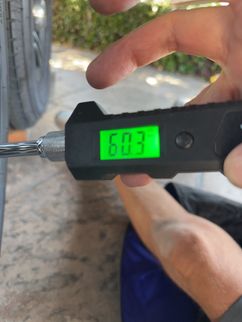

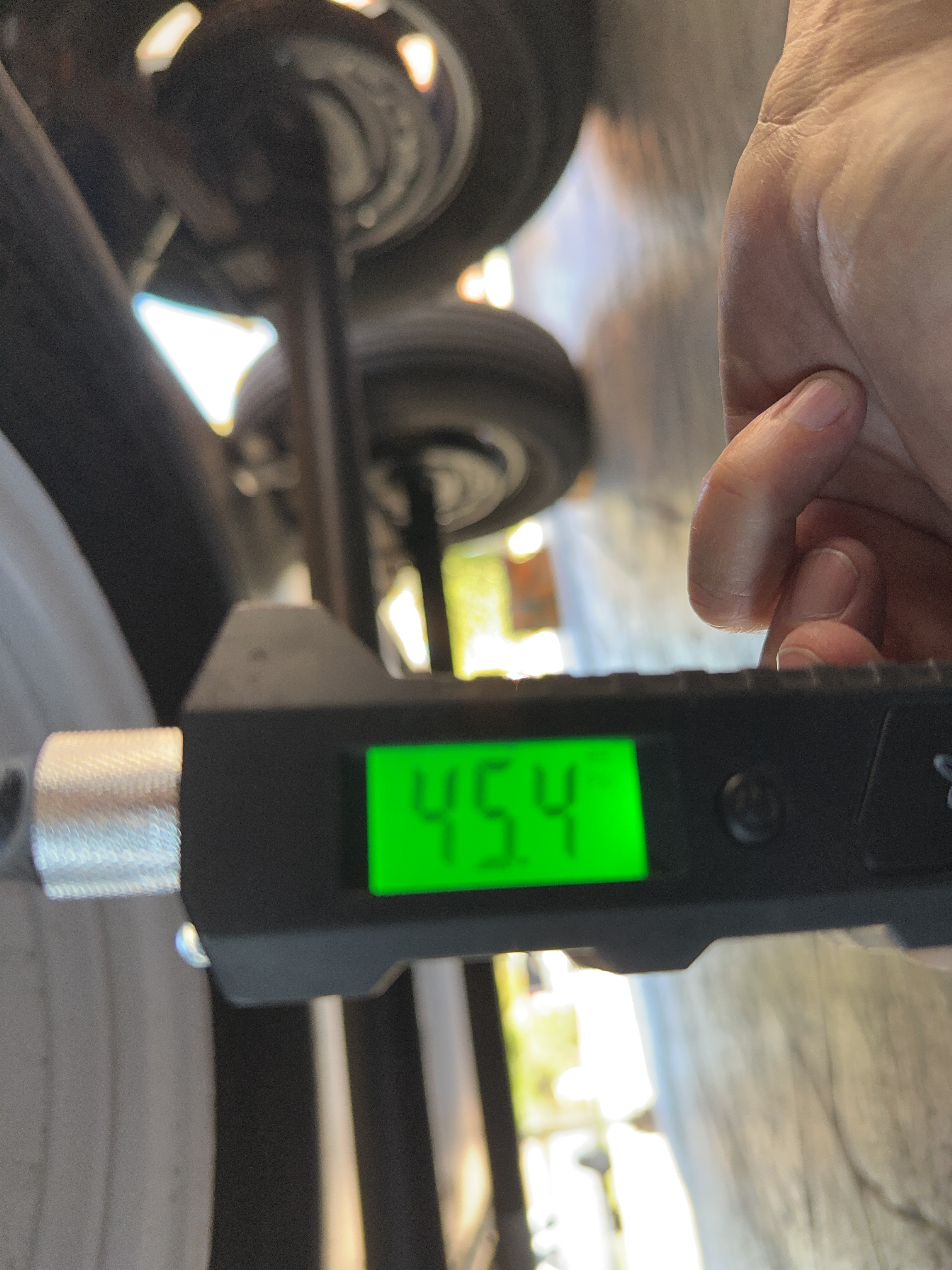

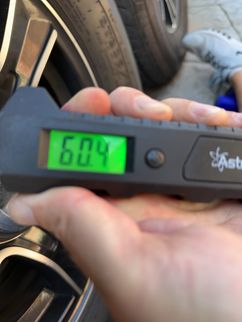

Tires and Wheels
NOTE
Curbside Front-Tire/Wheel
Curbside Rear-Tire/Wheel
Streetside Rear-Tire/Wheel
Streetside Front-Tire/Wheel
Spare-Tire/Wheel
120 Volt AC and 12 Volt DC Electrical System
Hot Skin Tests
Power Cord

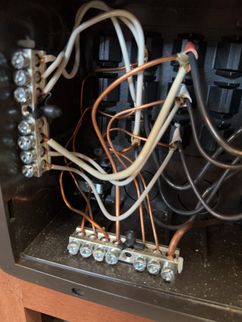

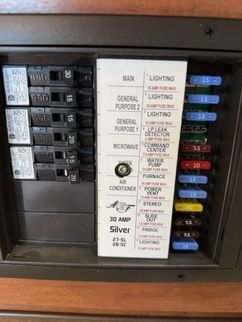

Electrical Panel & Fuses
AC Outlets & GCFI
Surge Protector

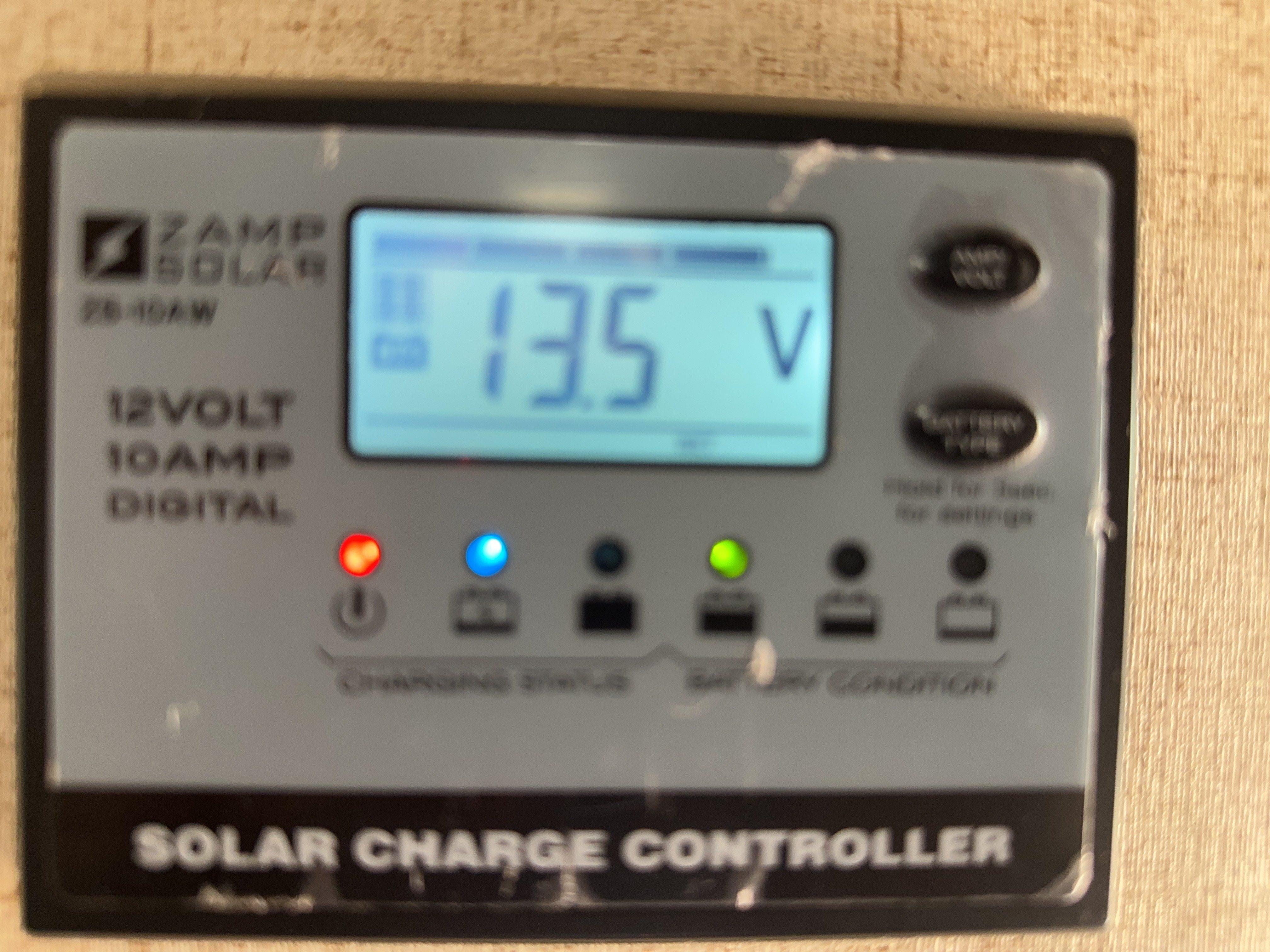

Solar Charge Control

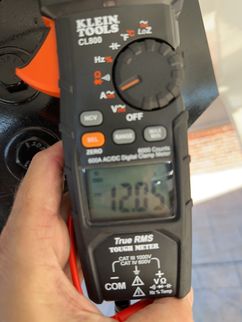

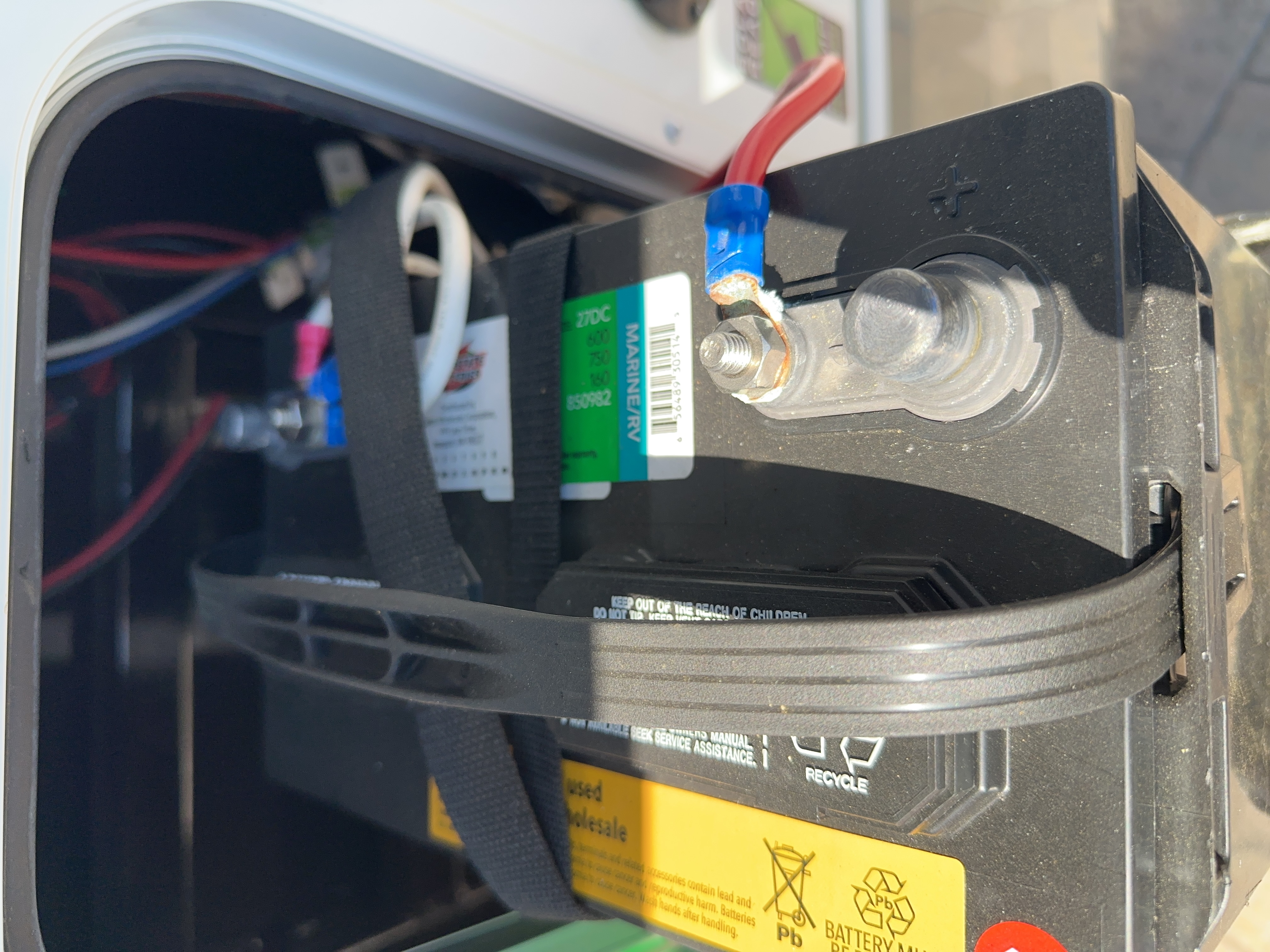

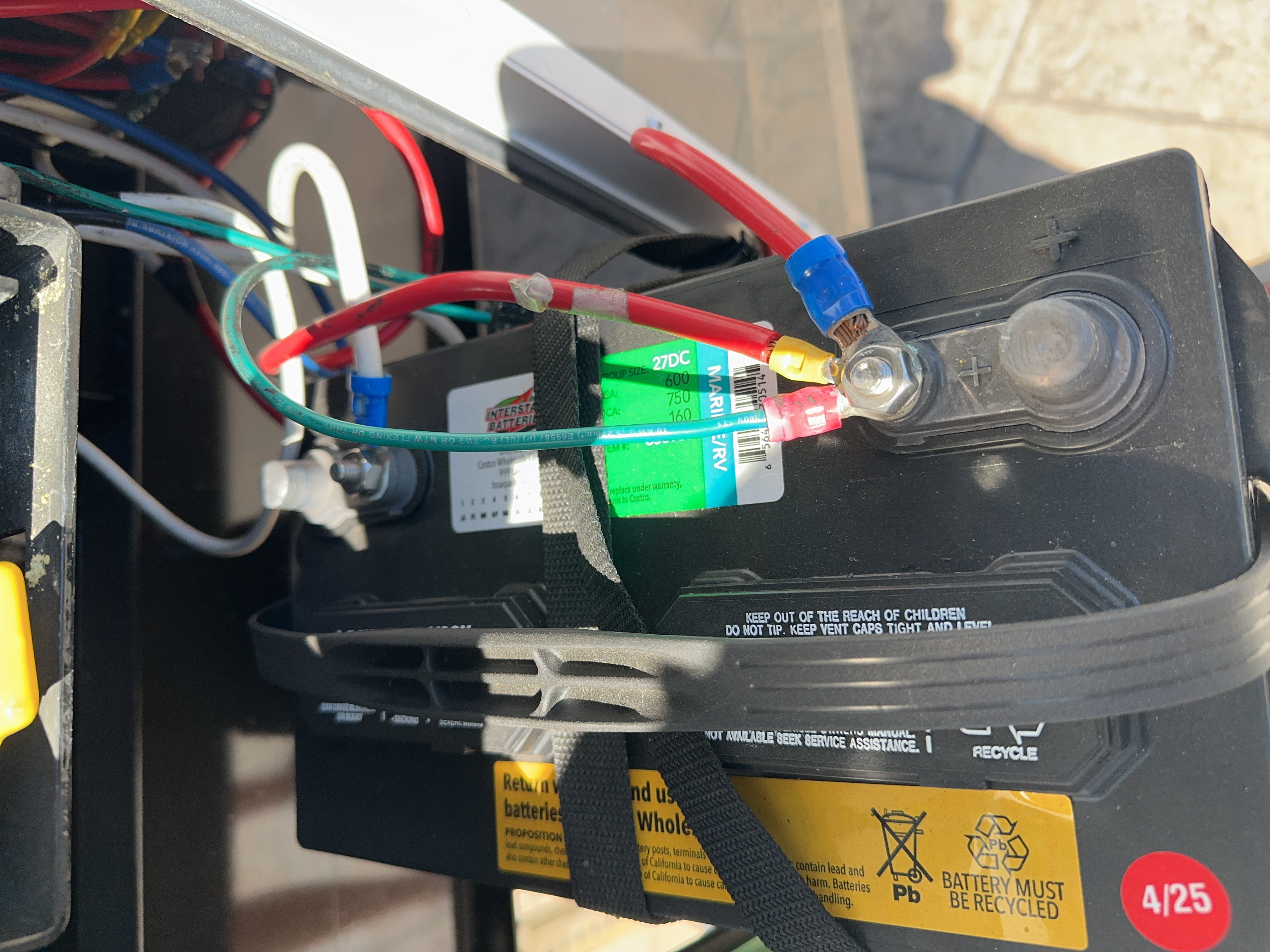

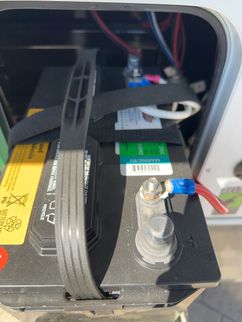

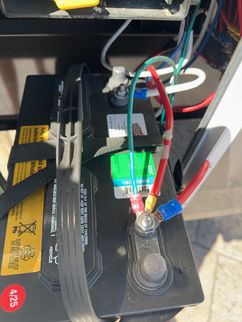

12 Volt DC House Battery
General Info
Type of Inspection: Buyer: Pre-Purchase RV Inspection
Inspection Category: Premier

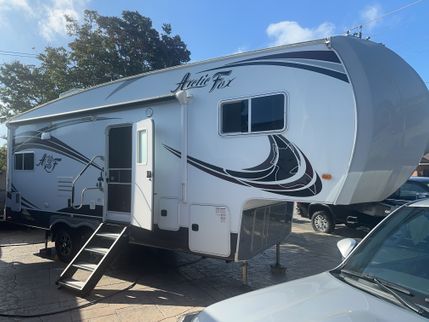

Style of RV: 5th Wheel Trailer
RV Status: Vacant: Private Seller
Client Present: No
Start Temp: 62
Weather: Clear
Vehicle Information
VIN Information

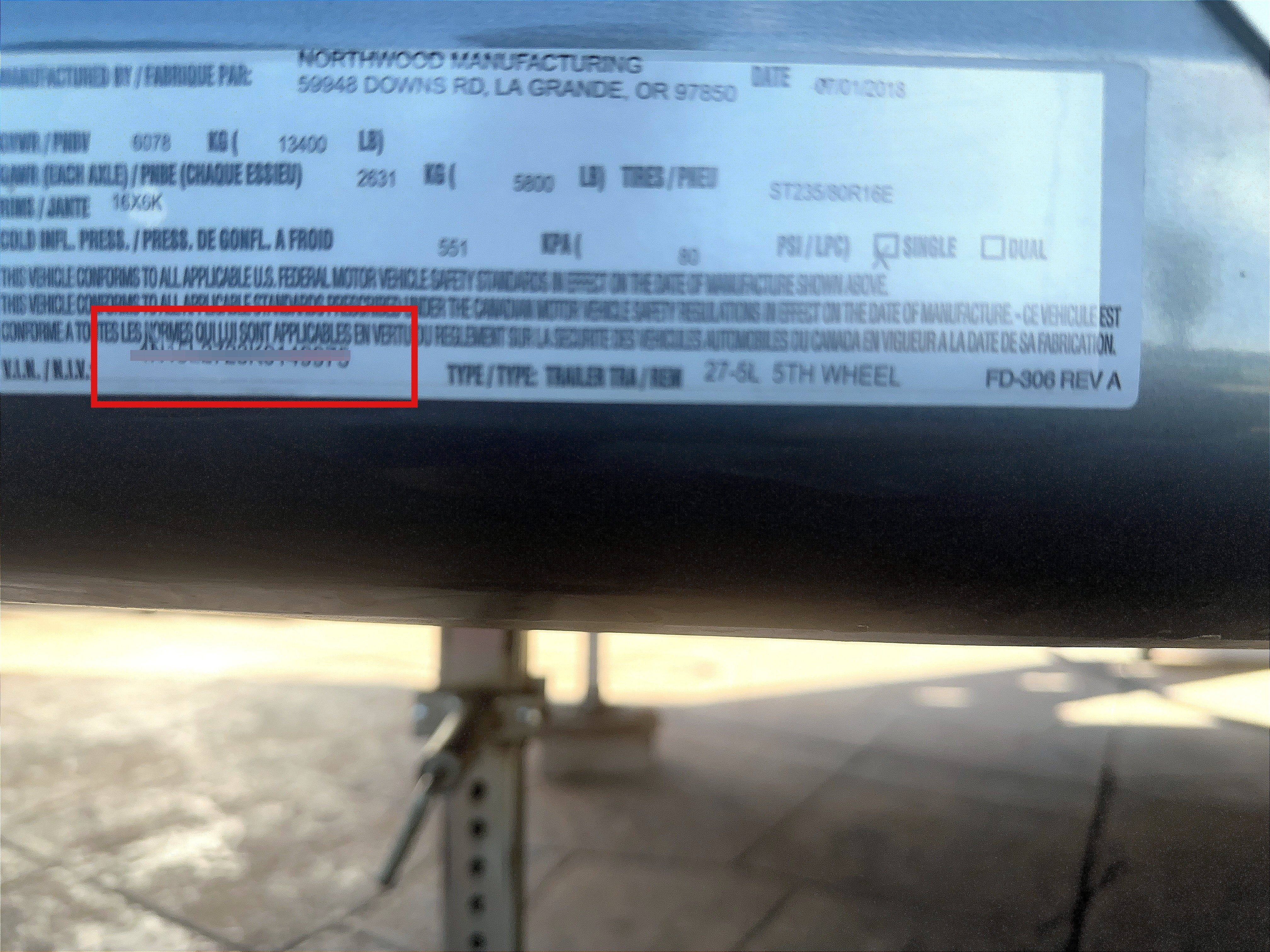

VIN Number: 4N15L2723K01#####, Photo Included
VIN Location: Streetside Front
RVIA / Canadian Seal
RVIA / Canadian Seal Number: Not Present

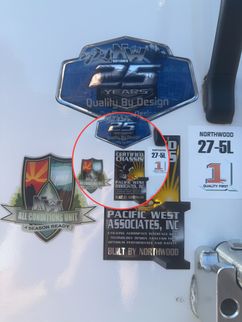

The inspector observed that this coach does not have an RVIA Seal and therefor may not conform to all of the NFPA 1192 Recreational Vehicle standards. It should be noted that there are some campgrounds that will not allow entrance without a RVIA seal and some states require RVIA certification for licensing.
No RVIA Seal Near Entry Door
Manufacture Information
Brand of RV: Manufacturer's Brand Name, Artic Fox
Model: RV Designation, 27-5L
Manufacturer Name / Location: Northwood Manufacturing, La Grande, OR
Date of Manufacturer: July, 7/1/1018
Gross Vehicle Weight Rating (GVWR in lbs): From Data Plate, 13,400 lbs
State License Plate
State Inspection Sticker Current: Not Required

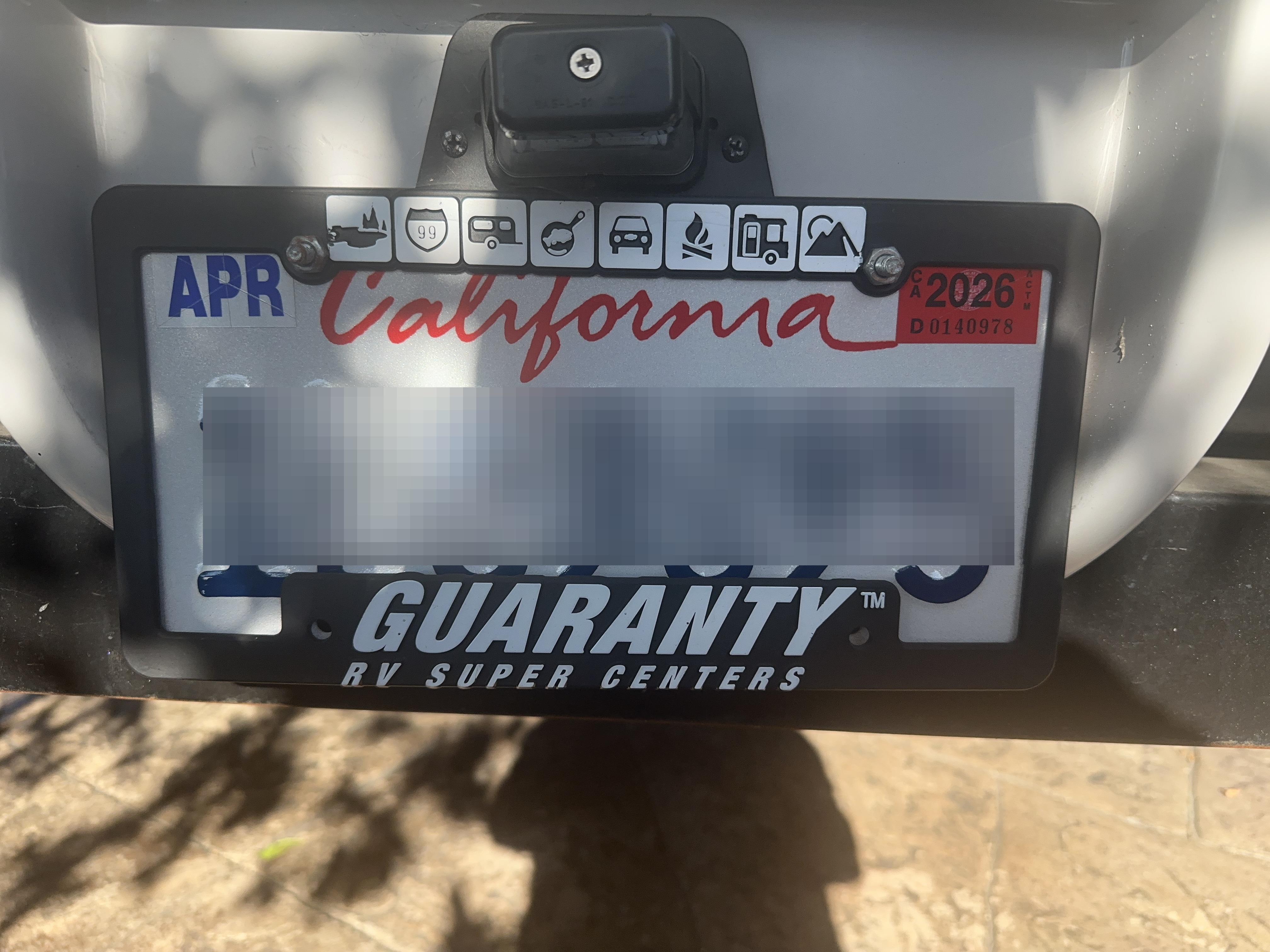

State License Plate Current: Yes, XXX####
Rear License Plate
Build Sheet
Build Sheet Location: Build Sheet Not Present

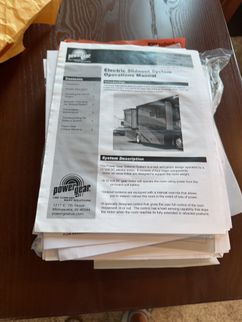

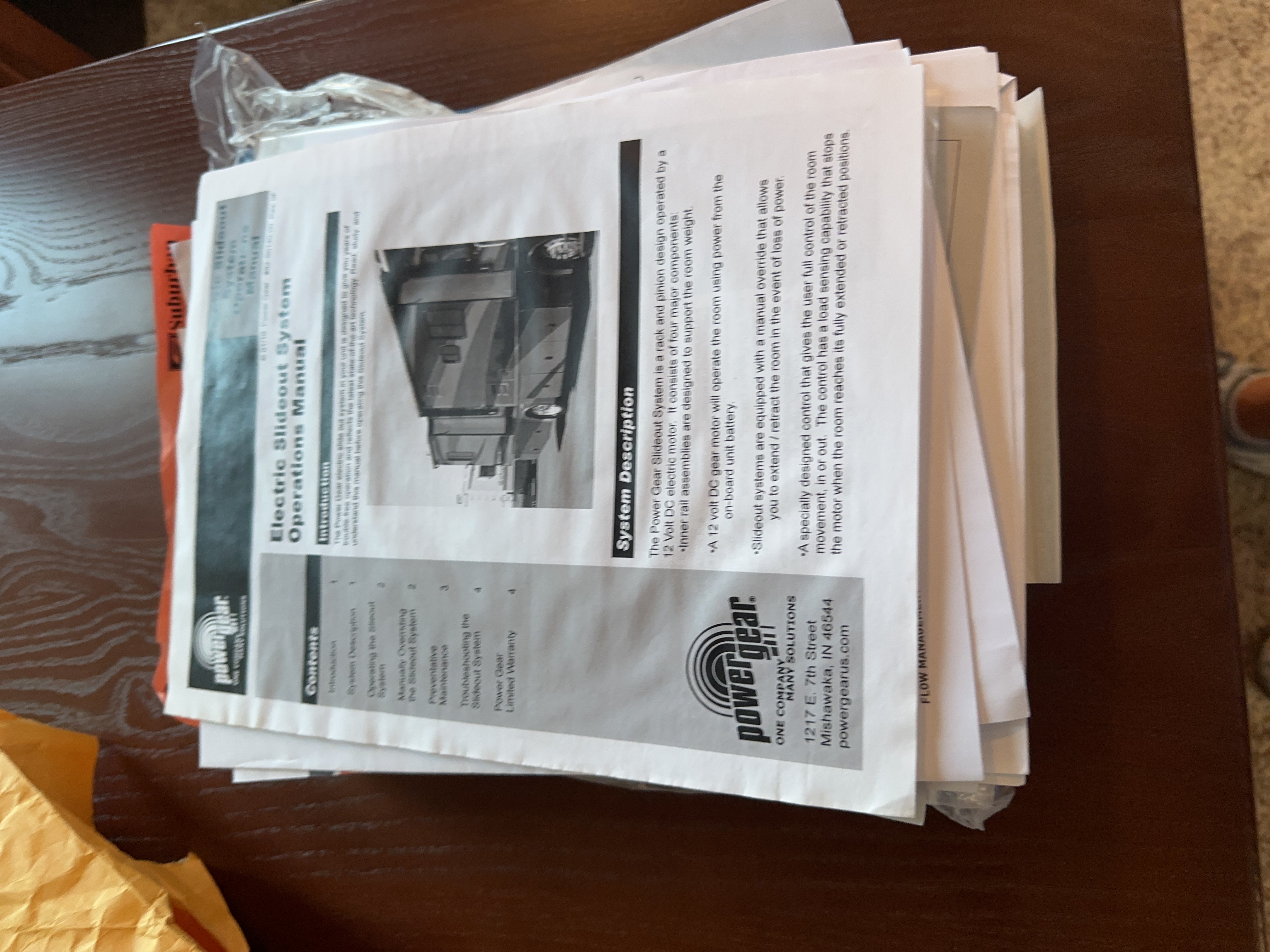

RV Manuals Present:
Yes
Manuals:
This coach did not have a build sheet that listed the major components installed in it, along with their manufacture, model number, and serial number.
Roof Exterior
Roof
General Roof: Sealant Note
NOTE: The inspector has verified the items in this section.
NOTE: Lap sealant should appear soft, pliable, and rubbery. If the lap sealant around roof edges, skylights, vents, and appliances looks cracked, brittle, loose, or turned up at the edges, it is possible that this could cause water intrusion, which can become a major issue.
NOTE: To prevent water intrusion, it is crucial that the roof and seams be checked every six months and repaired whenever necessary. Your regular maintenance plays a key role in preventing potential issues.
Roof Type: TPO Membrane
Areas of Possible Water Intrusion: No
Roof Condition:
Acceptable
Front Cap, Joints and Seals:
Acceptable
Awning Rail Trim (Curbside):
Acceptable
Rear Cap, Joints and Seals:
Fair
Trim Rail (Streetside):
Acceptable
Roof Ladder Type: Mounted
Ladder - Roof Access:
Acceptable

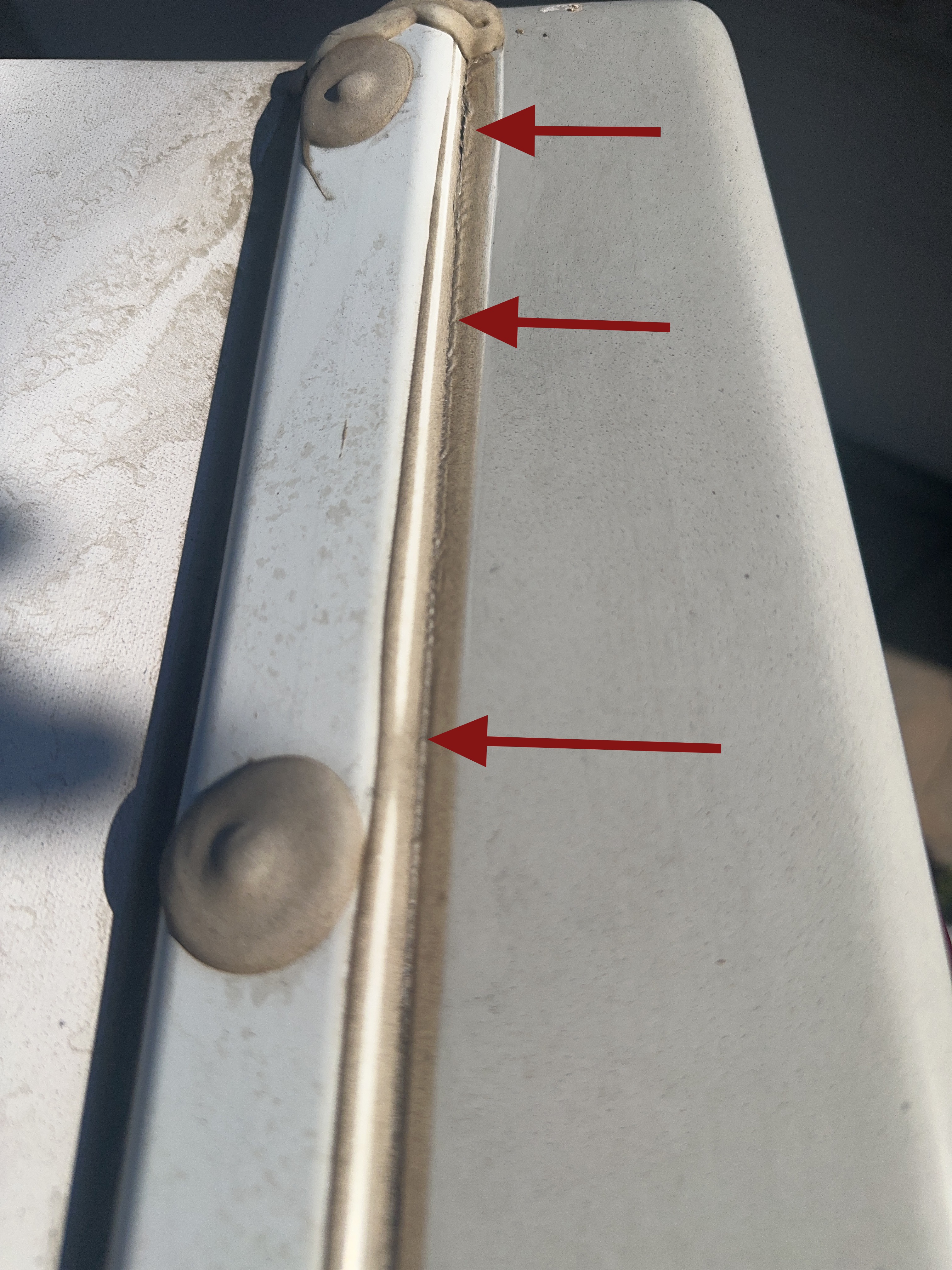

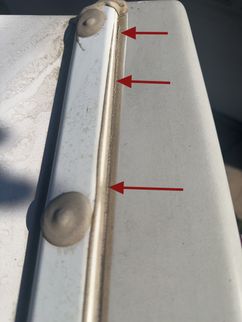

The inspector observed a very fine line in the lap sealant along the Rear Cap / Roof Membrane seam at the curbside corner. It is difficult to tell if this is an actual crack in the sealant or dirt. It is recommended that the sealant be cleaned and further evaluated.
Vents
Vents - Manual Crank (14 x 14):
Acceptable
Vents Powered (14x14):
Acceptable
Exterior Vent Covers:
Not Present
Plumbing Vent Covers:
Poor
Refrigerator Roof Vent:
Acceptable

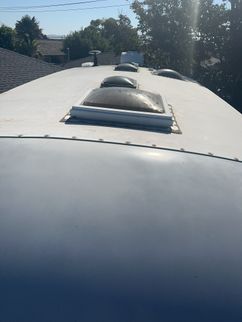

Skylights:
Fair

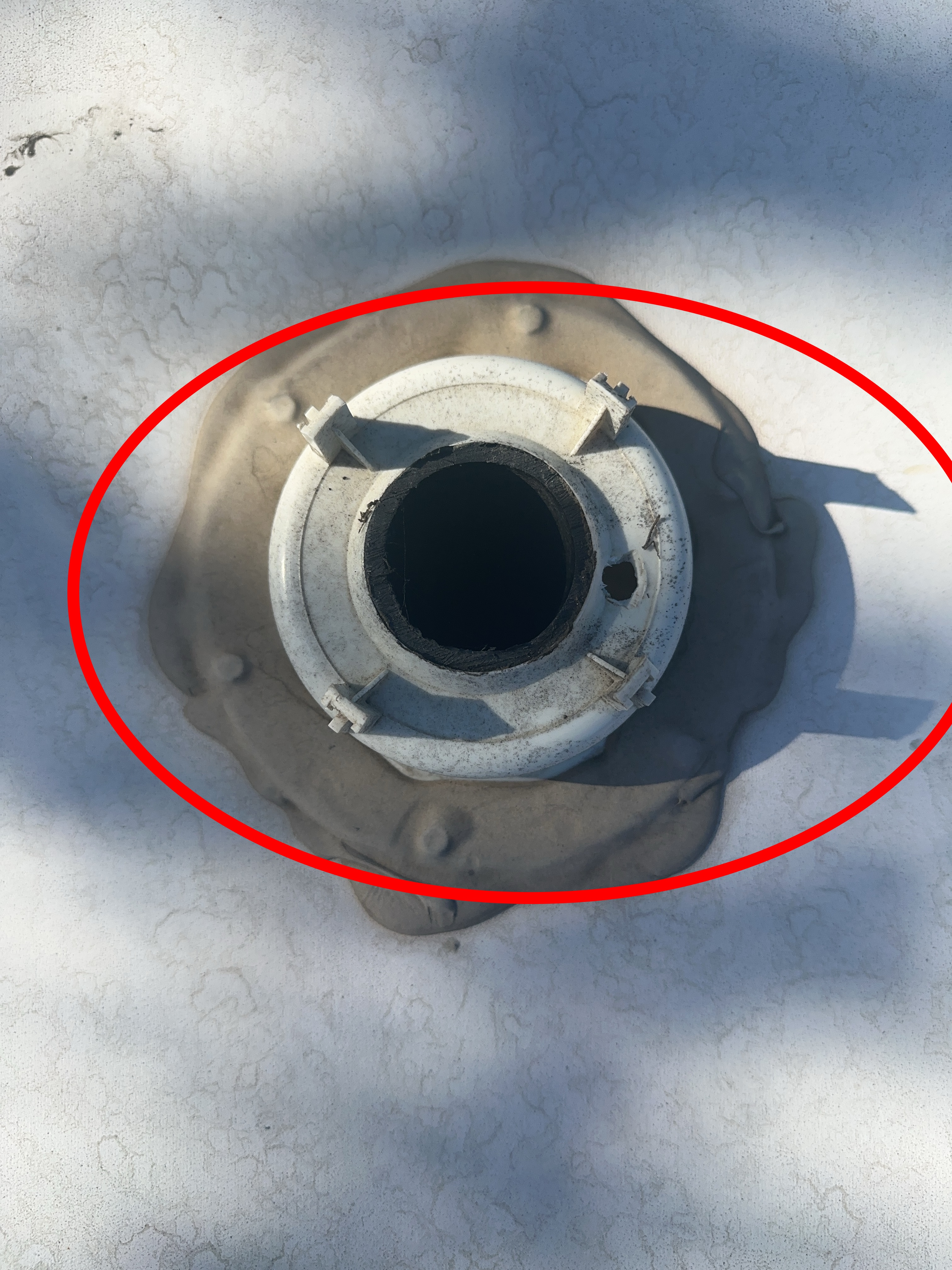

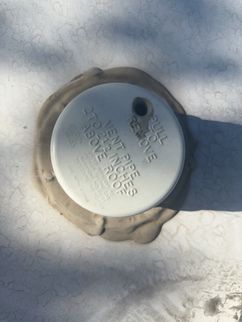

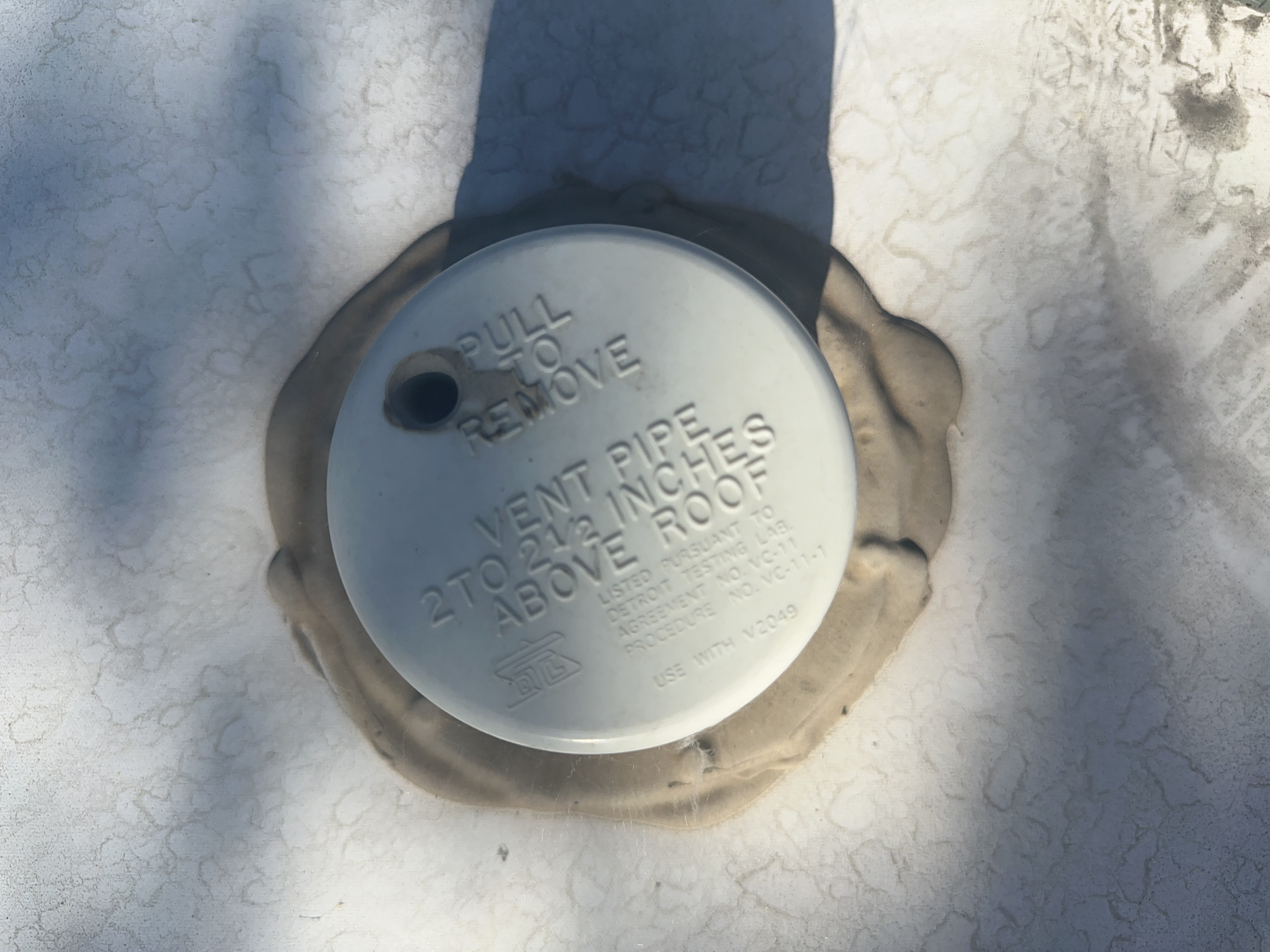

The plumbing vent located in the center of the RV close to curbside is missing the cap. This can allow debris, critters, and water to enter the vent pipe. It is recommended that this be repaired by a Qualified RV Technician.

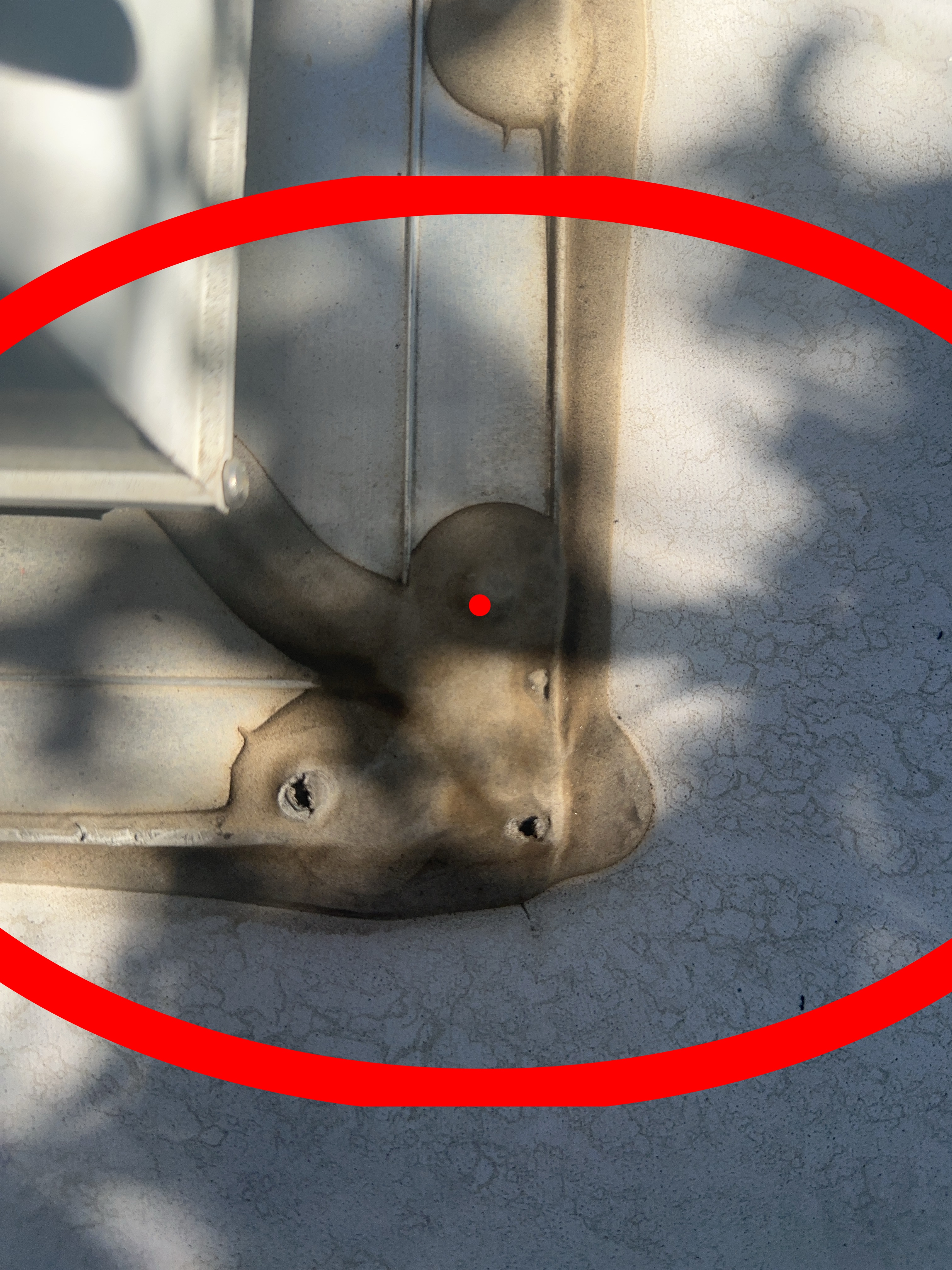

There is a bubble in the lap sealant on the backside of the center skylight. There are two screws at the streetside rear corner of the rear skylight that are not completely covered by the lap sealant. This could allow for water intrusion. It is recommended that this be cleaned and resealed by a qualified RV technician.
There are no exterior vent covers present on this unit. Exterior vent covers aid in allowing airflow and reducing the potential to allow water in an open vent.
Air Conditioner Rear
AC Shroud:
Acceptable
AC Exterior Coils:
Acceptable

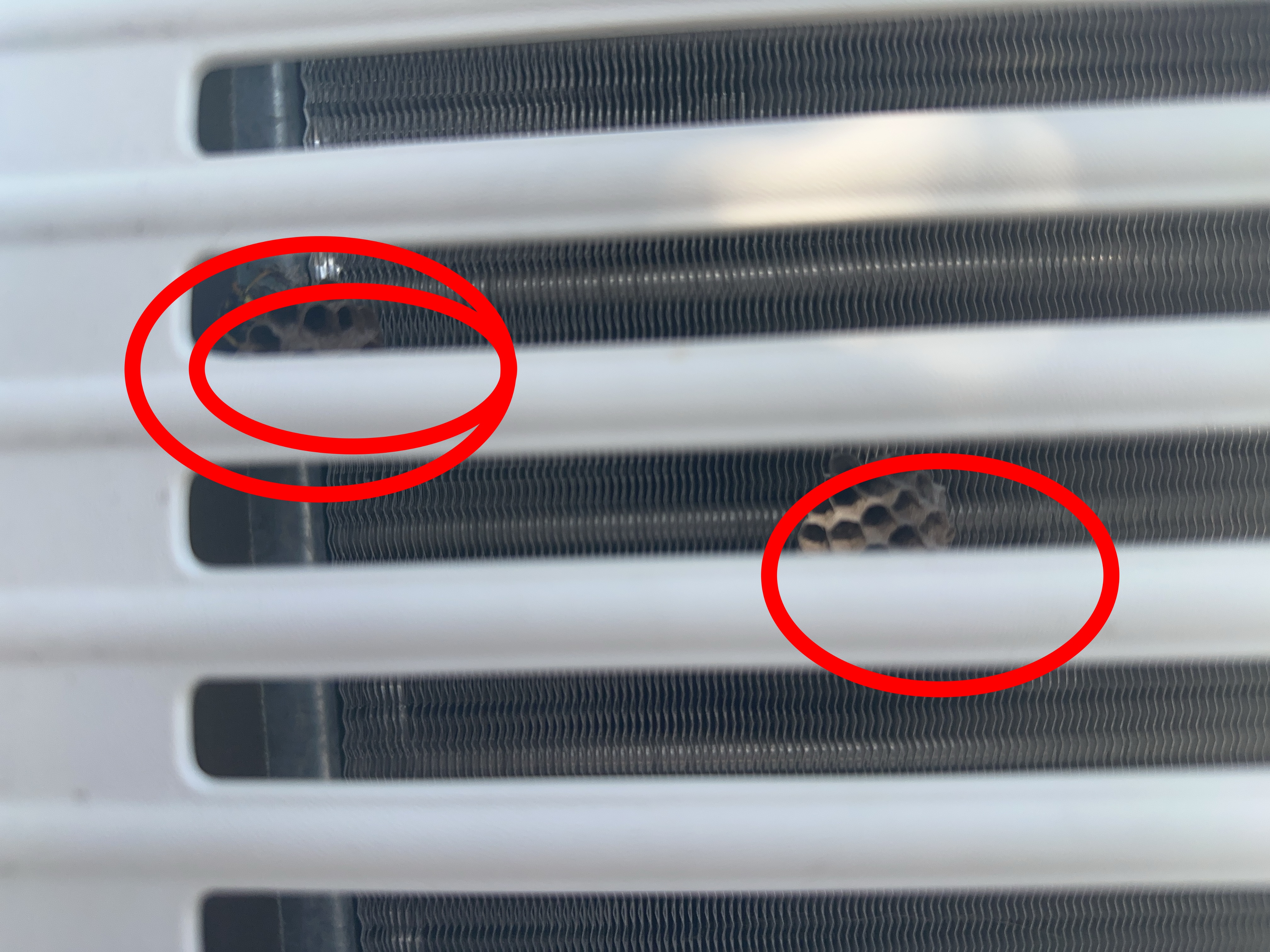

There are two small wasp nests located at the rear AC Coils. It is recommended that these be removed.
Antennas
TV Antenna - Moves Up and Down: Fixed
TV Antenna - Cleaned and Maintained: Yes
Antenna Power Booster Operates: Not Present
TV Antenna Exterior Roof Unit:
Acceptable
TV Antenna Interior Handle and Crank:
Not Present
Satellite Antenna:
Not Present
Radio Antenna:
Not Present
The TV antenna is a Winegard Air 360. This style of TV antenna does not raise or lower.
Other Roof Equipment
Number of Solar Panels: One
Solar Panels:
Acceptable
Other (list and evaluate): - Solar Prep
Equipment Removed: No
Air Horns:
Not Present

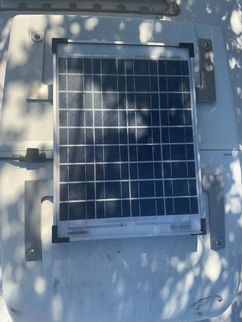

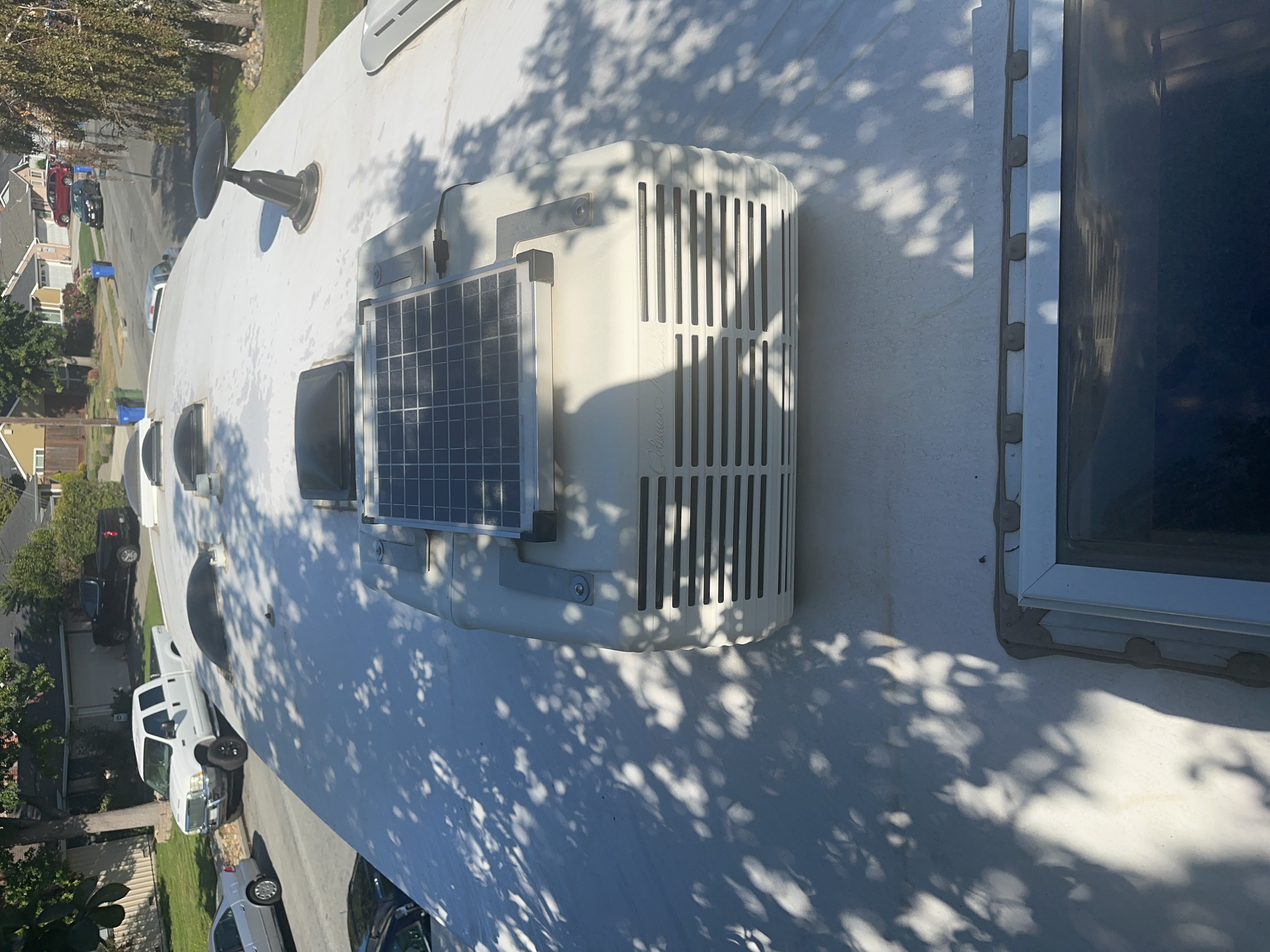

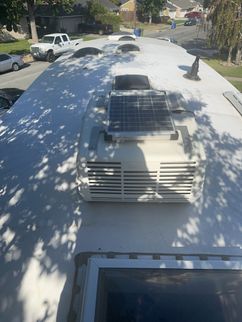

There is a single solar panel mounted on the rear AC shroud for battery charging only.
Exterior Sidewalls
Front Cap / Wall
Exterior Wall Surface Type: Paint with Decals
Any Damage or Discoloration or Delamination: No
Paint and/or Decals - Condition:
Acceptable
Wall Sealant:
Acceptable
Sidewall - Condition:
Acceptable
Windows: Not Present
Windows - Condition:
Not Present
Cargo Doors: Doors with Keyed Twist Latch, Doors with Twist Latch
Cargo/Access Doors - Condition:
Acceptable

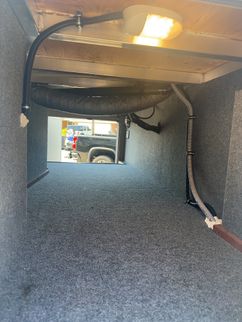

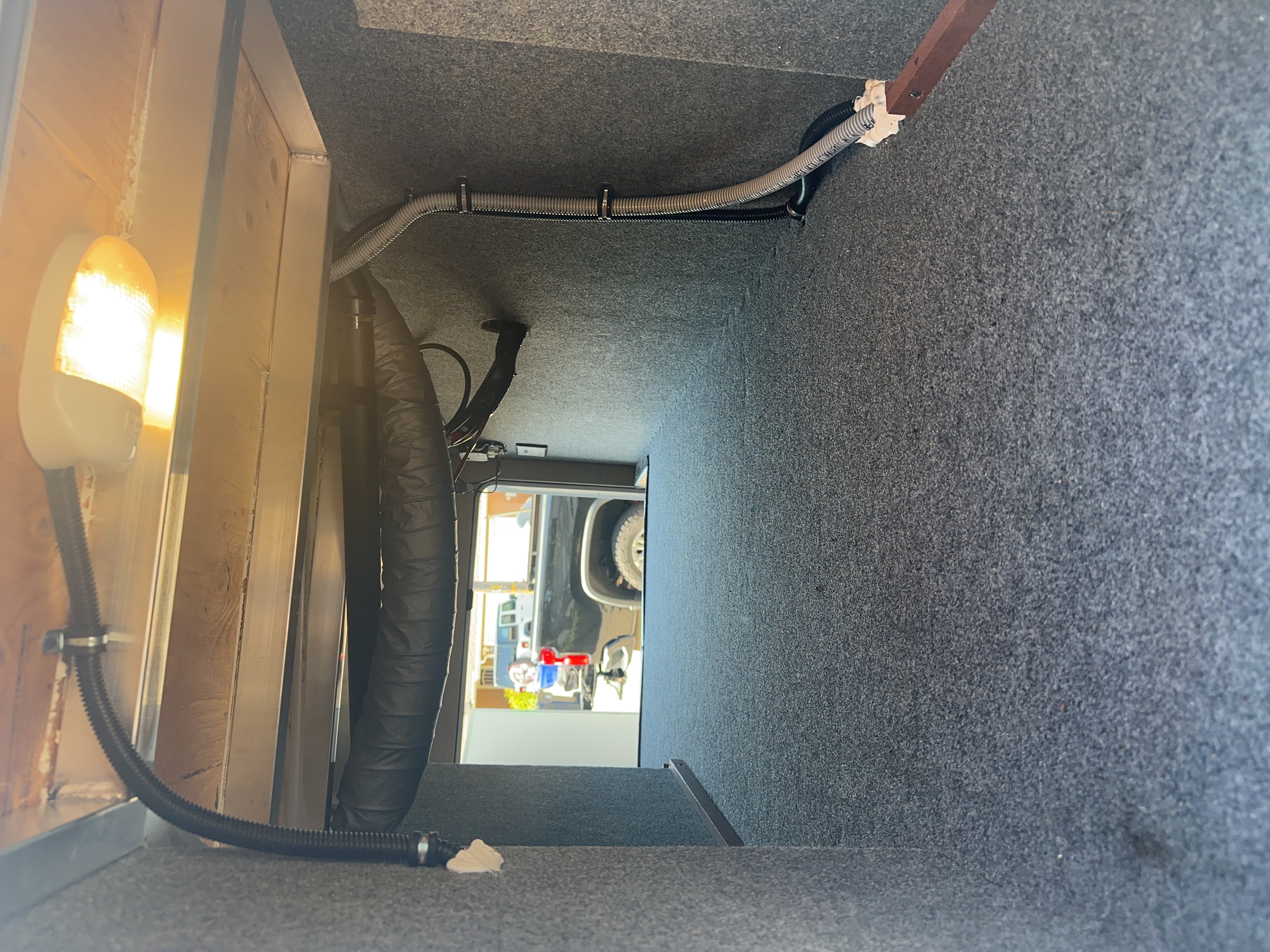

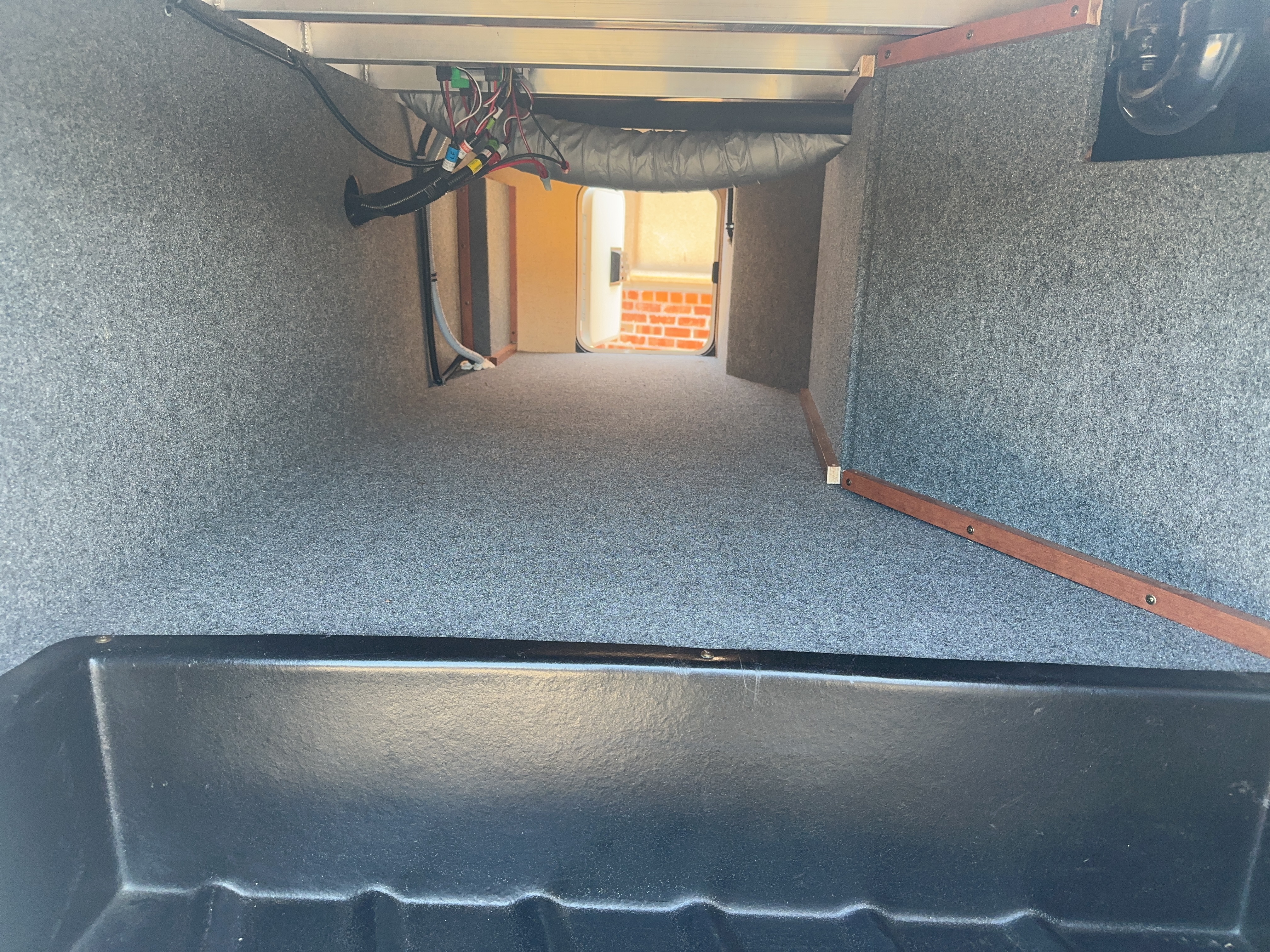

Cargo Interior Compartment - Condition:
Acceptable
Cargo Interior Compartment Lights - Operation:
Not Present

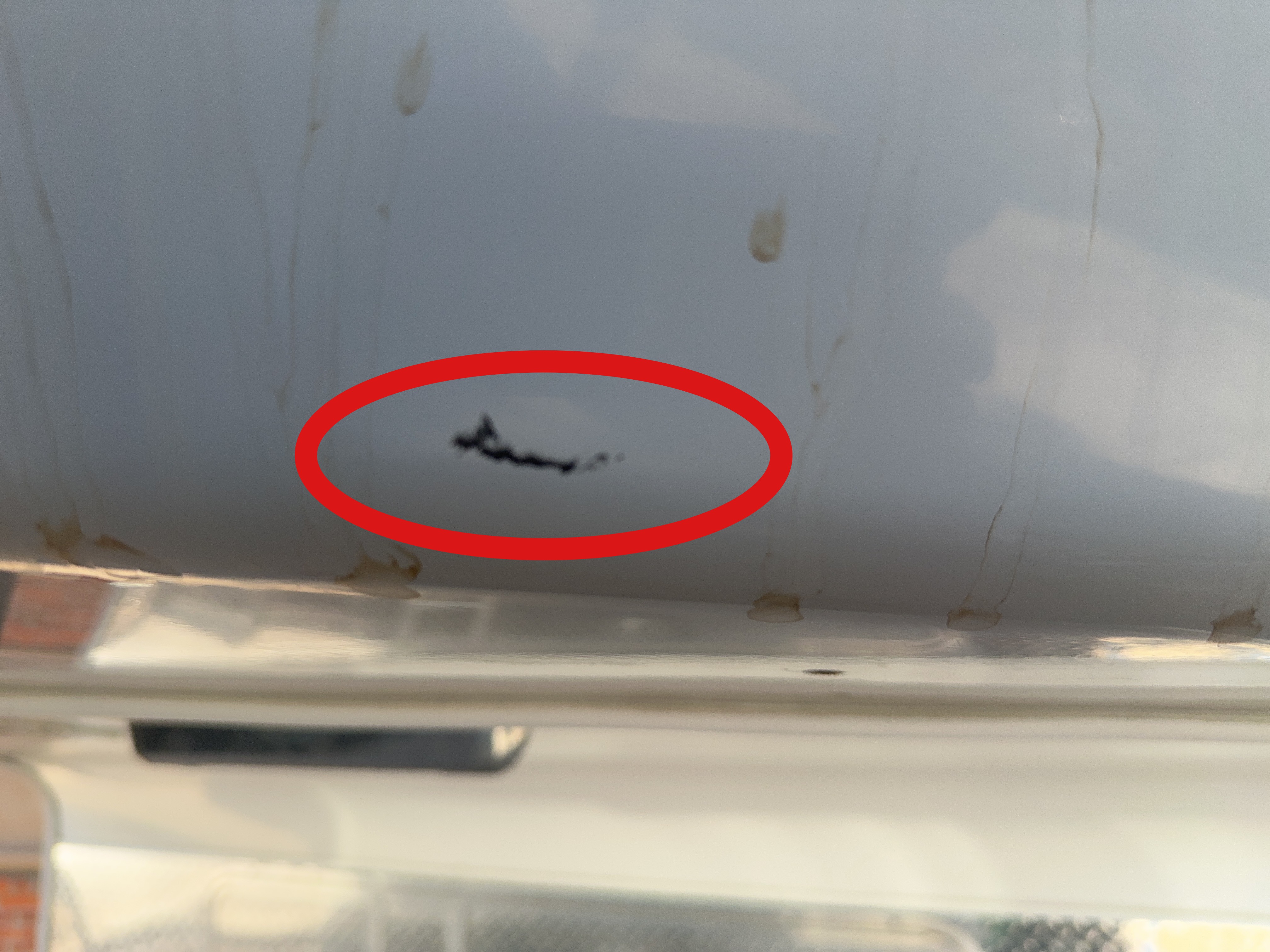

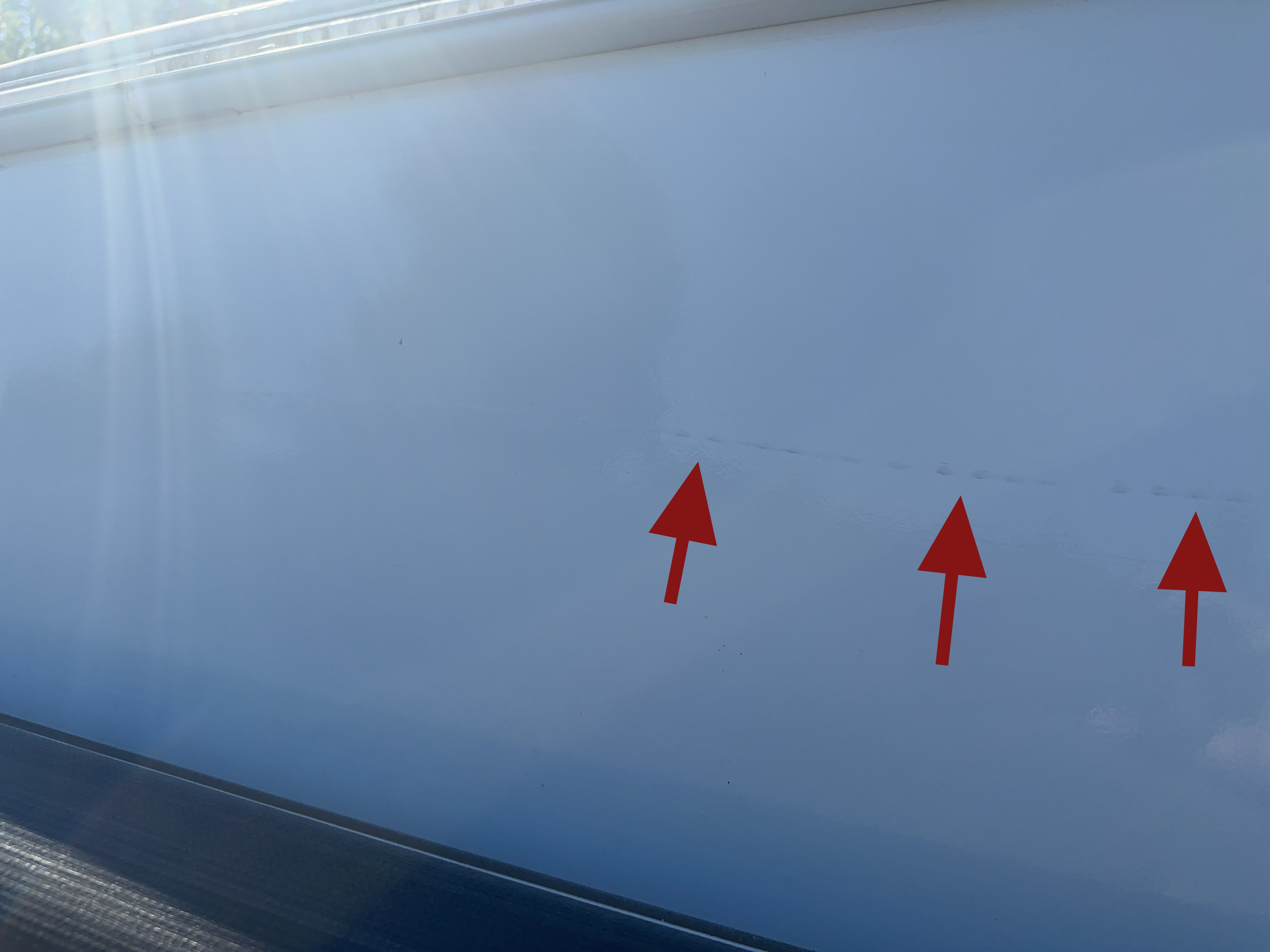

There is a small black mark located on the streetside lower corner of the front cap.
Curbside - Sidewall
Exterior Wall Surface Type: Fiberglass with Decals
Any Damage or Discoloration or Delamination: No
Paint and/or Decals - Condition:
Acceptable
Sidewall - Condition:
Acceptable

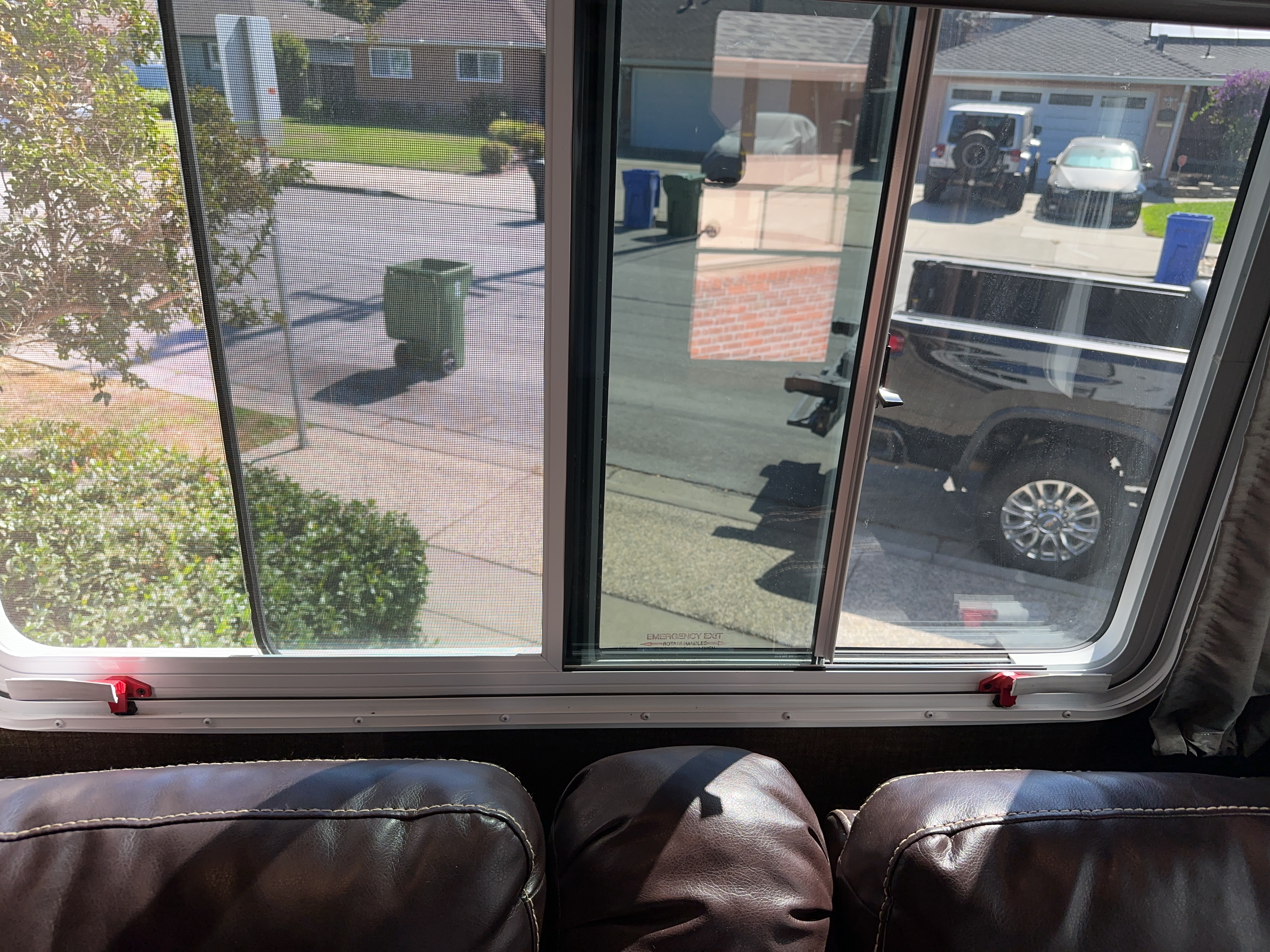

Windows: Dual-Pane Acrylic with Frame
Windows - Condition:
Acceptable
Cargo Doors: Doors with Keyed Slam Latch, Doors with Slam Latch
Cargo/Access Doors - Condition:
Acceptable
Cargo Interior Compartment Lights - Operation:
Acceptable
Cargo Interior Compartment - Condition:
Acceptable
There are light scratches located on the curbside sidewall above the awing.
Curbside Front Cargo Pass Through Storage
Rear Cap / Wall
Exterior Wall Surface Type: Paint with Decals
Any Damage or Discoloration or Delamination: No
Paint and/or Decals - Condition:
Acceptable
Wall Sealant:
Acceptable
Sidewall - Condition:
Acceptable
Back Up Camera: Not Present
Cargo Doors: None
Windows: Dual-Pane Acrylic with Frame
Windows - Condition:
Acceptable
Cargo/Access Doors - Condition:
Not Present
Cargo Interior Compartment Lights - Operation:
Not Present
Cargo Interior Compartment - Condition:
Not Present
Streetside - Sidewall
Exterior Wall Surface Type: Fiberglass with Decals
Any Damage or Discoloration or Delamination: No
Paint and/or Decals - Condition:
Acceptable
Wall Sealant:
Acceptable
Sidewall - Condition:
Acceptable
Windows: Dual-Pane Acrylic with Frame
Windows - Condition:
Acceptable
Cargo Doors: Doors with Slam Latch, Doors with Keyed Slam Latch, Doors with Keyed Lock, Doors with Twist Latch
Cargo/Access Doors - Condition:
Acceptable
Cargo Interior Compartment Lights - Operation:
Acceptable
Cargo Interior Compartment - Condition:
Acceptable
Streetside Front Cargo Pass Through Storage.
Entrance Doors
Main Entry Door
Type of Entrance Door: Fiberglass
Door - Condition:
Acceptable
Door - Operation:
Acceptable
Screen Door - Condition:
Acceptable
Screen Door - Operation:
Fair
Keyed Door Lock - Operation:
Acceptable
Keyed Door Lock - Deadbolt Operation:
Acceptable
Keyless Entry - Door Lock - Operation:
Not Present
Type of Step System: Manual
Number of Steps: Four
Step - Condition:
Acceptable
Steps - Operation:
Acceptable
Grab Bar Type: MORryde Safe-T-Rail
Grab Bar - Condition:
Acceptable
Grab Bar - Operation:
Acceptable
Paint and Decals:
Acceptable
The wall mounted portion of the screen door latch is not mounted correctly. It is recommended that this be serviced by a qualified RV Technician.
Awnings
Front Patio Awning
Awning - Brand: Carefree of Colorado
Awning - Material: Vinyl
Awning - Operational Type: Electric
Awning - Length (Feet): 18 feet
Awning - Light: No Awning Light
Awning - Frame and Latching Mechanism:
Acceptable
Awning - Material Condition:
Acceptable
Awning - Operation:
Acceptable
The inspector could not fully extend the awning due to a lack of space in the test area.
Slideouts
Streetside Rear Slideout
Slideout Roof Type: TPO Membrane
Slideout Drive System: Electric Motor w/Gear and Rack System
Slideout Roof:
Acceptable
Slideout T-Molding Trim:
Acceptable
Seals, Sweeps and Gaskets:
Fair
Slide Rail Gear Rack System:
Acceptable
Wiring Harness under Slideout:
Acceptable
12 Volt DC Control and Switches:
Acceptable
Slideout Operation:
Acceptable
Slideout Awning Topper Operation:
Not Present
Slideout Awning Topper Frame & Latching Mechanism:
Not Present
Slideout Awning Topper Fabric:
Not Present
Slideout External Underside:
Acceptable
The sweep seal at the top of the rear streetside slideout did not fully come out along the full length of the slideout when extended. This could allow for water intrusion. It is recommended that this be further evaluated by a qualified RV technician.
Streetside Front Slideout
Slideout Roof Type: TPO Membrane
Slideout Drive System: Lippert Schwintek w/In-wall Electric Motor
Slideout Roof:
Acceptable
Slideout External Underside:
Acceptable
Slideout T-Molding Trim:
Acceptable
Seals, Sweeps and Gaskets:
Acceptable
Slide Rail Gear Rack System:
Acceptable
Wiring Harness under Slideout:
Not Present
12 Volt DC Control and Switches:
Acceptable
Slideout Operation:
Acceptable
Slideout Awning Topper Operation:
Not Present
Slideout Awning Topper Frame & Latching Mechanism:
Not Present
Slideout Awning Topper Fabric:
Not Present
The switch to activate the streetside front slideout is located on the ceiling of the bedroom.
Tires and Wheels
NOTE
-The National Transportation Safety Board (NTSB) and some tire manufacturers are recommending that all tires older than six years should be replaced, regardless of their condition.
Curbside Front-Tire/Wheel
Tread Depth: 6/32 inch
Tire Tread Condition:
Acceptable
DOT Date: Visually Verified, 0618
Tire Brand: Goodyear
Tire Size: Special Trailer (ST) (ST235/80R16)
Load Capacity: Single Tire Rating, 3420 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 80

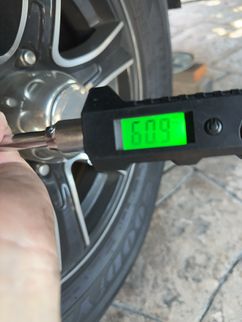

Current Air Pressure in Tire (PSI): Tire Gauge Reading, 60.4
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:
Poor
Wheel Type: Aluminum
Wheel Condition:
Acceptable
The age of the tire is listed as week 06 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
Curbside Rear-Tire/Wheel
Tread Depth: 6/32 inch
Tire Tread Condition:
Acceptable
DOT Date: Visually Verified, 1018
Tire Brand: Goodyear
Tire Size: Special Trailer (ST) (ST235/80R16)
Load Capacity: Single Tire Rating, 3420 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 80
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 60.4
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:
Poor
Wheel Type: Aluminum
Wheel Condition:
Acceptable
The age of the tire is listed as week 10 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
Streetside Rear-Tire/Wheel
Tread Depth: 6/32 inch
Tire Tread Condition:
Acceptable
DOT Date: Visually Verified, 0618
Tire Brand: Goodyear
Tire Size: Special Trailer (ST) (ST235/80R16)
Load Capacity: Single Tire Rating, 3420 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 80

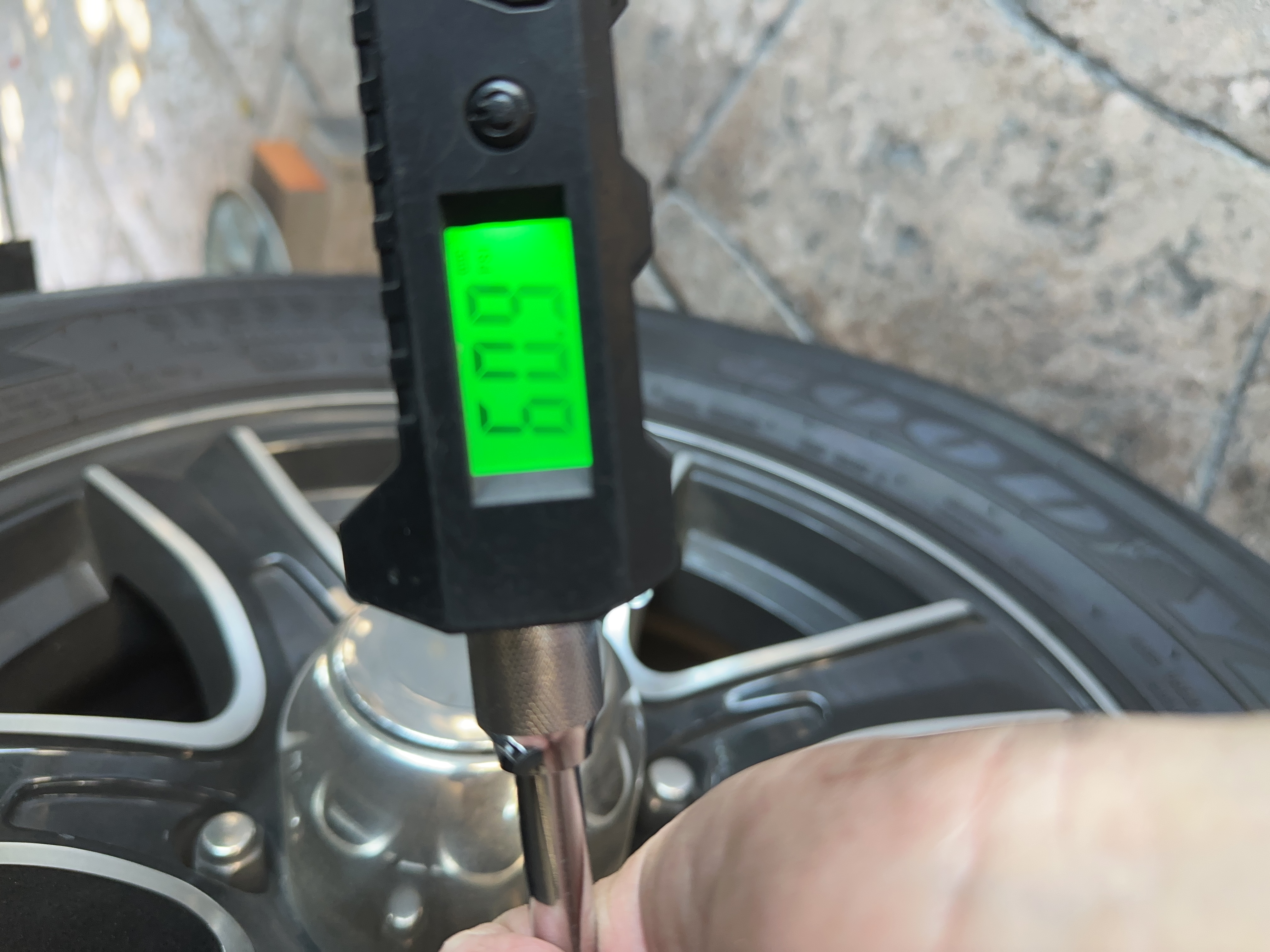

Current Air Pressure in Tire (PSI): Tire Gauge Reading, 60.9
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:
Poor
Wheel Type: Aluminum
Wheel Condition:
Acceptable
The age of the tire is listed as week 06 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
Streetside Front-Tire/Wheel
Tread Depth: 6/32 inch
Tire Tread Condition:
Acceptable
DOT Date: Visually Verified, 1818
Tire Brand: Goodyear
Tire Size: Special Trailer (ST) (ST235/80R16)
Load Capacity: Single Tire Rating, 3420 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 80
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 60.3
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:
Poor
Wheel Type: Aluminum
Wheel Condition:
Acceptable
The age of the tire is listed as week 18 of the year 2018, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
Spare-Tire/Wheel
Tread Depth: 8/32 inch
Tire Tread Condition:
Acceptable
DOT Date: Visually Verified, 5017
Tire Brand: Goodyear
Tire Size: Special Trailer (ST) (ST235/80R16)
Load Capacity: Single Tire Rating, 3420 lbs
Load Range: E
Maximum Air Pressure (PSI): 80
Cold Inflation Pressure (PSI): 80
Current Air Pressure in Tire (PSI): Tire Gauge Reading, 45
Spare Tire Rack Type: Drop Down Cable
Spare Tire Jack and Tools: Not Present
Valve Extensions Installed: No
Tire Pressure Monitors Installed: No
Tire Condition:
Poor
Wheel Type: Steel
Wheel Condition:
Acceptable
The age of the tire is listed as week 50 of the year 2017, which is beyond the NTSB and some tire manufacturer's replacement age. It is recommended that this be further evaluated by a qualified tire technician. This is a LIFE SAFETY ISSUE. See the NHSTA Statement at the beginning of this section (Wheel Assemblies).
TT-Running Gear
Running Gear
Number of Axles: Two
Axle - Suspension Type: Leaf Springs with Shackles
Axle - Did Inspector Check for Visible Signs of Rust?: Yes, Was any present?: No
Axle - Did Inspector Check for Visible Signs of Bent or Damaged Components?: No
Axle - Did Inspector Check for Visible Signs of Oil Stains?: Yes, Was any present?: No
Brake Type:
Electric
U-Bolts and Nuts Have been Evaluated: Yes
Springs Have been Evaluated: Yes
Hangers Have been Evaluated: Yes
Shackles Have been Evaluated: Yes
Spring Equalizers Have been Evaluated: Yes
Shock Absorbers Have been Evaluated: Yes
Suspension Bolts with or without Zerk Fittings Have been Evaluated: Yes with Zerk Fittings
Underbelly - Type: Enclosed
Underbelly - Condition:
Acceptable
Running Gear - Condition:
Acceptable
Frame - Did Inspector Check for Visible Signs of Rust?: Yes, Was any present?: No
Frame - Did Inspector Check for Visible Signs of Bent or Damaged Components?: Yes, Was any present?: No
Frame - Did Inspector Check for any Visible Signs of Oil Stains?: Yes, Was any present?: No
Frame - Condition:
Acceptable
The inspector does not remove the wheels to check wheel bearings and brake pads. It is recommended that the Dexter maintenance manual for the axles used on this coach be reviewed and followed including lubricating the bearings annually.
The inspector recommends that the RV owner be familiar with the frame, chassis, and undercarriage. That way, when doing pre-trip, mid-trip, and post-trip inspections, the owner knows what everything is supposed to look like and can identify anything out of place.
The inspector will evaluate for signs of rust but will not make a determination of the severity of the rust. Pictures may be included to show what the inspector observed at the time of the inspection.
Note: Due to insurance restrictions, the RV can NOT be driven by the inspector. Also, due to the lack of clearance under the trailer and safety concerns, the inspector will conduct the following visual inspections from the outer perimeter of the towable RV.
Overview - Suspension / Running Gear
TT- Leveling System & Hitch
7-Pin & Breakaway
7-Pin Cord:
Acceptable

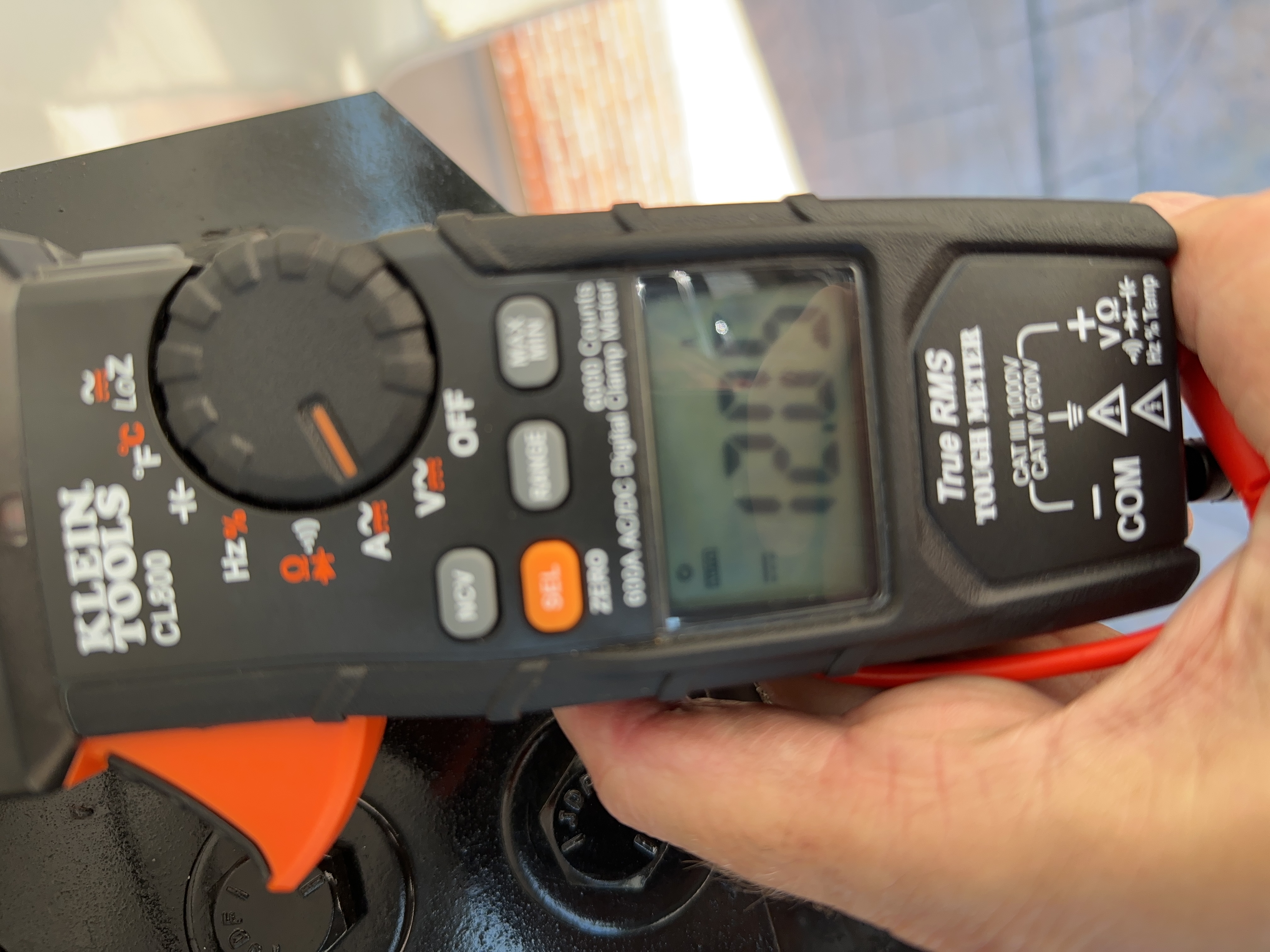

Breakaway Current Draw: Current Draw, 12.05 amps
Breakaway Switch - Condition:
Fair
The Breakaway switch is mounted with only one screw and can move slightly. It is recommended this be more securely fastened.
7 Pin Connector
Breakaway Switch Amp Draw
5th Wheel
5th Wheel - Front Landing Gear: Electric
5th Wheel - Rear Stabilizing System: Electric
5th Wheel Landing Gear - Condition:
Acceptable
5th Wheel - Pin Box: King Pin
5th Wheel - Condition: Acceptable
5th Wheel - Goose Neck Adapter: No
Overview- Pin Box
Overview- Front Landing Gear

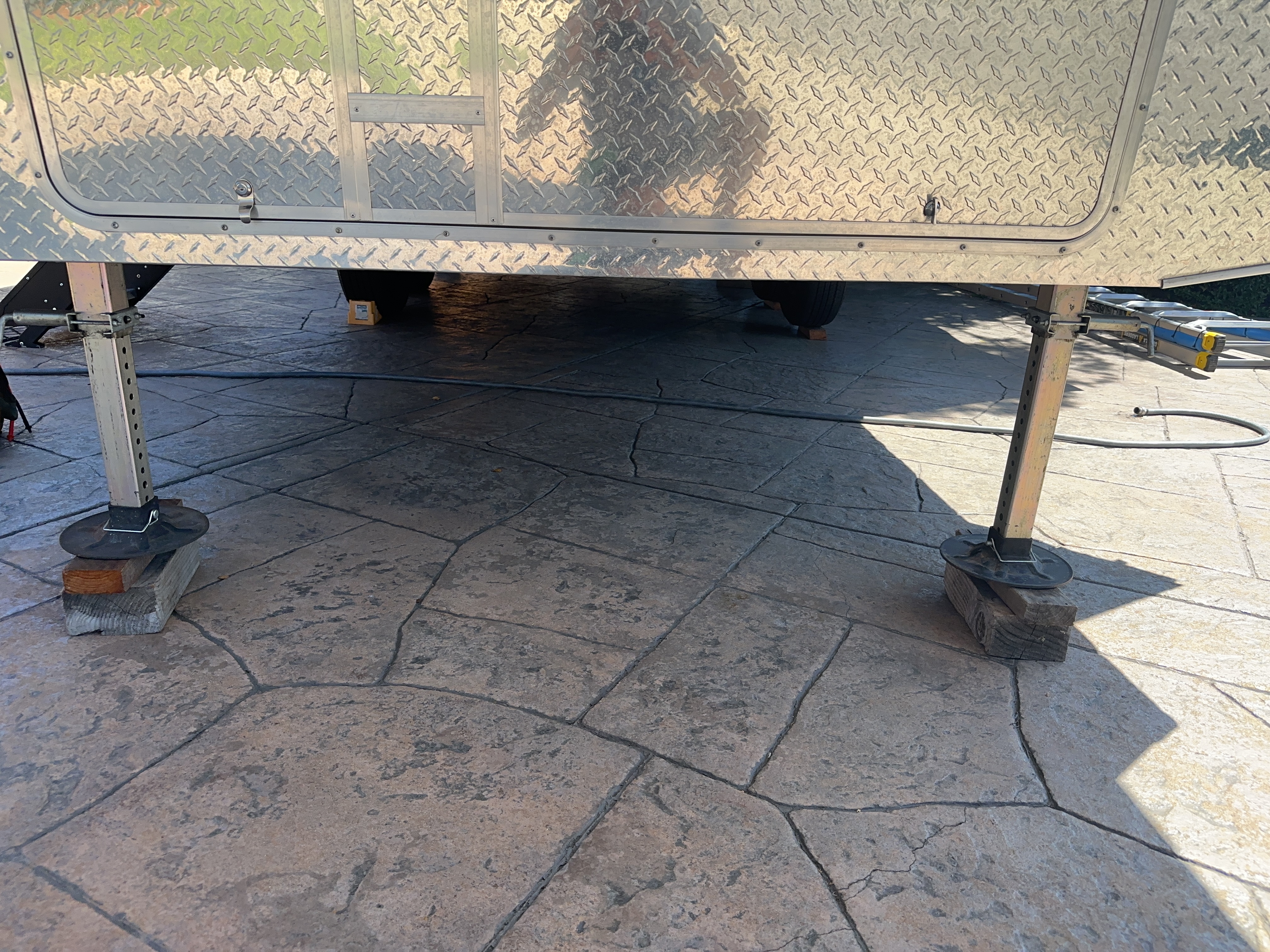

Leveling
Leveling System Type: Electric
Leveling System Manufacturer: Lippert
Leveling - Inspect for Visible Signs of Damage: Yes
Leveling - Ensure Jacks Extend and Retract Fully: Yes
Leveling - Inspect for Leaks or Mechanical Issues: Yes
Leveling System Condition:
Acceptable
Hitch
Hitch Receiver Brand: Unknown
Hitch Weight Rating: Other
Modifications to Hitch System: No
Hitch Connector Pin Type: Not Present
Hitch - Condition:
Not Present
12 Volt DC Exterior Lights
Chassis Lights
Headlights:
Not Present
Types of Light Bulbs: LED
Front Clearance Lights:
Acceptable
Rear Clearance Lights:
Acceptable
Streetside - Marker Lights:
Acceptable
Curbside - Marker Lights:
Acceptable
Left Turn and Brake Light:
Acceptable
Right Turn and Brake Light:
Acceptable
Backup Lights:
Acceptable
License Plate Light:
Acceptable
Trailer Connector
Hitch Connector Pin Type: Not Present
Pin Connector - Tail/Marker Lights:
Not Present
Pin Connector - Left Turn and Brake Light:
Not Present
Pin Connector - Right Turn and Brake Light:
Not Present
Pin Connector - Brakes:
Not Present
Pin Connector - Backup Lights:
Not Present
12VDC at Trailer Connector:
Not Present
Exterior Lights
Flood Lights:
Acceptable
Utility Lights:
Acceptable
Porch Lights:
Acceptable
Security Lights:
Acceptable
Waste Dump Lights:
Acceptable
120 Volt AC and 12 Volt DC Electrical System
Hot Skin Tests
Hot Skin Test - Was any Frame and Running Gear Voltage Recorded:
No
Hot Skin Test - Was any Exterior Surface Voltage Recorded:
No
Hot Skin Test - Was any Exterior Wall Surface Voltage Recorded:
No
Hot Skin Test - Was any Door Handles and Frames Voltage Recorded:
No
Hot Skin Test - Was any Window Frames and Trim Voltage Recorded:
No
Hot Skin Test - Was any Other Voltage Recorded:
No
Power Cord
Power Cord Type: 30 Amp / 120 Volts AC
Power Cord Condition:
Acceptable
Electrical Panel & Fuses
Inside Electrical Panel Box Condition: Acceptable
Wires and Terminals Tight: Solid Connection
Electrical Panel Box - Signs of Repair or Service:
No
Electrical Panel Box - Circuit Breakers in Place:
Yes
Electrical Panel Box - Wiring Secure:
Yes
Electrical Panel Box - All White, Black and Ground Wires Kept Separate:
Yes
12V DC Fuses/Breaker Condition: All Operational
12V DC Fuse/Breaker Connections Condition: Good Connection
12V DC Fuse/Breaker Panel Box Condition: Acceptable
12V DC Fuse/Breaker Panel Box Inspected:
Yes
Overview - Breaker Panel
AC Outlets & GCFI
GCFI Reset Location: Bathroom
GCFI / Polarity / Voltage Test - Kitchen Receptacles:
Yes
GCFI / Polarity / Voltage Test - Bath and Toilet Area Receptacles:
Yes
GCFI / Polarity / Voltage - All Exterior Receptacles:
Yes
GCFI / Polarity / Voltage Test - Receptacles Storage Bay Areas:
Not Present
Polarity / Voltage Test Bedroom Receptacles:
Yes
Polarity / Voltage Test - Dining Area Receptacles:
Yes
Polarity / Voltage Test - Living Room Receptacles:
Yes
Polarity / Voltage Test - Behind Refrigerator:
Not Inspected
Polarity / Voltage Test - Receptacles Behind all Electronics and Appliances:
Yes
USB / 12-Volt Power Port(s) - Condition:
Not Present
Surge Protector
Surge Protector - Brand: Not Present
Surge Protector - Cables, Wiring and Fuses:
Not Present
Surge Protector - Condition:
Not Present
Solar Charge Control
Solar Charge Controller - Brand: Zamp Solar
Solar Charge Controller - Operational:
Yes
Inspector observed that the display indicated charging.
Overview- Battery Solar Charge Controller
12 Volt DC House Battery
12 Volt DC House Battery - Location: Front Cargo Bay
12 Volt DC House Battery - Box Condition: Acceptable
12 Volt DC House Battery - Cables and Terminals Condition: Acceptable
12 Volt DC House Battery - Vented and Secure: Yes
12-Volt DC House Battery - Water Level in Batteries: Not Inspected
12 Volt DC HouseBattery(s) - Disconnect Switch:
Yes
12 Volt DC House Battery(s) - Operational:
Yes
12 Volt DC House Battery(s) - Matched for Size and Age:
Yes
12 Volt DC House Battery(s) - Positive and Negative Cables Matched for Load:
Yes
12 Volt DC House Battery(s) - Have They Been Maintained:
Yes
Power Converter - AC On (DC Voltage with Shore Power On): 13.5
Power Converter - AC Off (DC Voltage with Shore Power Off: 13.0
Power Converter - Verified:
Acceptable
Power Converter - Did DC Voltage Drop at Least 1/2 Volts:
No
Overview - House Batteries
Water Systems
NOTES
-Because the age and quality of the water in the freshwater tank cannot be determined, the tank should be drained and sanitized before being refilled.
-Due to the types of materials and waste used in the tanks and depending on previous maintenance, fresh and waste monitors, sensor probes may perform inaccurately between applications due to buildup.
City Water
City Water - Food Grade Hose Present:
No
A drinking water safe hose was unavailable during the inspection. This can cause possible contamination of the water system including the fresh water tank. It is recommended that a drinking water safe hose always be used when connecting to a city water supply. It is recommended that a food-grade hose be purchased before using the coach.

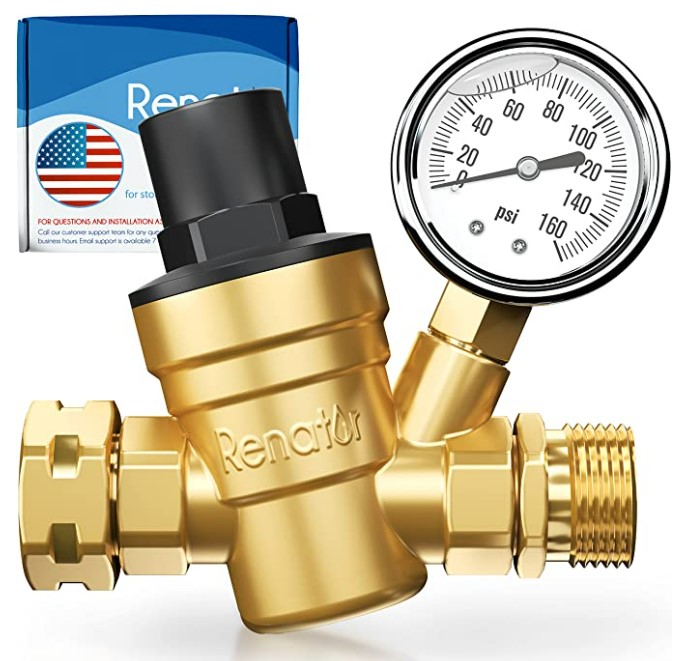

City Water - Pressure Regulator Present:
No
The There was no water pressure regulator available during the inspection. It is recommended that a pressure regulator always be used to reduce high incoming water pressure from the city water connection. High water pressure may cause bursting of fresh water lines and possibly cause significant damage to the coach.
City Water - Connections Operate:
Yes
City Water Connection Condition:
Acceptable
City Water - System Holds Pressure:
Yes
City Water System Condition:
Acceptable
On-Board Water System
On-Board Water System - Tested Fresh Water Fill: No
On-Board Water System - Pressure System Works: Yes
On-Board Water System - Pump Creates and Holds Pressure: No
Onboard Water Filtration System:
Not Present
On-Board Water System: Tank, Water Pump and Fixtures for Tank Fill Condition:
Acceptable
Operation and Condition of Outside Shower:
Acceptable
The inspector observed that the fresh water pump cycled every few minutes, for just a few seconds, while using the onboard water system. It is recommended that this be repaired by a qualified RV technician.
When the on-board water pump cycled on there was a slight rattle/vibration that could be heard in the bathroom. It is recommended that this be further evaluated by a qualified RV technician.
Gray Water Tank
Waste Water Sewer / Hose Fittings:
Not Inspected
Gray Water Tank - Valve Type: Cable Pull
Gray Water Tank - Valve Operates: Not Inspected
Waste Water Sewer Hose Present:
Not Present
Since a sewer hose was not available in the coach, it is recommended that one be purchased before using the coach.
Gray Water Tank - Tank or Valve or Line Leaks: No
Gray Water Tank - Wash System: Not Present
Gray Water Tank - Drain Cap in Place: Yes
Gray Water Tank - Drain Cap Holds Gray Water Back: Yes
Gray Water Tank Condition:
Not Inspected
There was no waste water connection provided during the inspection, therefore the gray water tank was unable to be inspected. It is recommended that this be evaluated by a qualified RV technician when a waste water connection becomes available.
Black Water Tank
Black Water Tank - Valve Type: Cable Pull
Black Water Tank - Valve Operates: Not Inspected
Black Water Tank - Tank or Valve or Line Leaks: No
Black Water Tank - Wash System: Not Inspected
Black Water Tank - Drain Cap in Place: Not Inspected
Black Water Tank Drain Cap Holds Waste Water Back: Not Inspected
Black Water Tank Condition:
Not Inspected
There was no waste water connection provided during the inspection, therefore the black water tank was unable to be inspected. It is recommended that this be evaluated by a qualified RV technician when a waste water connection becomes available.
Monitor System
Controls / Switches - Type: Manual Switches, Lib
Monitor Panel - Start of Inspection: Yes
Battery Monitor Reading: Full
LP Monitor Reading: Not Present
Monitor Panel - After Water Fill: Yes
Fresh Water Tank Reading: 3/4
Black Water Tank #1 Reading: 1/3
Black Water Tank #2 Reading: Not Present
Gray Water Tank #1 Reading: 1/3
Gray Water Tank #2 / Galley Reading: 1/3
Gray Water Tank #3 Reading: Not Present
Gray Water Tank #4 Reading: Not Present
Battery / Waste / Water Monitor Panel Condition:
Acceptable
LP (Propane) System Leak Test
LP Leak / Drop Test
LP Leak / Drop Test - Begin Time: Not Tested
LP Leak / Drop Test - Completed Time: Not Tested
LP Leak / Drop Test: Not Tested
LP Leak / Drop Test - Did Pressure Drop During Leak Test: Not Tested
LP Leak System Test:
Not Inspected
The inspector was unable to connect to the outside quick connect port or access the system via the stove top to perform an LP leak test. It is recommended that a qualified RV technician perform an LP Leak test before using the coach. Until such a test is performed, this is considered a life safety issue.
LP (Propane) Containers, Lines and Connections
DOT Tanks
DOT - Cylinder Arrangement: Dual
DOT - Hoses and Regulators: Acceptable
DOT #1 - Cylinder Size: 40 LBS
DOT #1 - Date of Manufacture: 2018
DOT Tank #1 - Rust or Damage Condition: Acceptable
DOT #2 - Cylinder Size: 40 LBS
DOT #2 - Date of Manufacture: 2018
DOT Tank #2 - Rust or Damage Condition: Acceptable
DOT - Regulator Type: Dual Input - Auto Change Over
DOT - Regulator Vents Downward: Yes
DOT Tank(s) Condition:
Acceptable
External Grill Port Recall: No
External Propane Port:
Acceptable
Life Safety Components
NOTES
General RV Detector and Fire Extinguisher statements:
The National Fire Protection Association (NFPA) 1192 Standard requires that any detectors installed in an RV be certified for use in RVs.
The detector's manufactured date will typically be listed on the back of the detector. It's essential to check and replace detectors as the manufacturer recommends. Following the manufacturer's routine checks (which can be weekly) on all detectors is a reliable way to ensure their proper function. The detector manufacturer may list acceptable replacement battery manufacturers.
-LP Detectors have an estimated service life of 5 years, after which they are strongly recommended to be replaced. UL 1484
-CO Detectors have an estimated service life of 5 years, after which they are strongly recommended to be replaced. UL 2034 or CSA 6.19
-Smoke Detectors have an estimated service life of 5 to 10 years, after which they are recommended to be replaced. UL 217
-Fire Extinguishers are required to be removed from service 12 years from the date of manufacture. NFPA 10
These are not just a suggestion but a crucial step to ensure your RV's safety.
LP Detector
LP Detector Brand / Model: Safe-T-Alert
LP Detector Date: Older than 5 Years (Replacement Recommended)
LP Detector UL 1484: Yes
LP Detector Test Method: Tested by Pushing Button and Spraying LP, No light on
LP Detector Alarm During Test: No
LP Detector Condition:
Poor
Due to age, the inspector recommends replacing the LP detector. This is a Life Safety Issue, a recommended replacement would be;
CO Detector
CO Detector Brand / Model: First Alert
CO Detector Date: Older than 5 Years (Replacement Recommended)
CO Detector UL 2034 or CSA 6.19: Yes
CO Detector Test Method: Tested by Pushing Button
CO Detector Alarm During Test: No, by Pushing the Button
CO Detector Condition:
Poor
The carbon monoxide (C0) detector near the bedroom was manufactured September of 2018. Due to its age, it is recommended that a qualified RV technician replace it before the RV is occupied. This is a life safety issue.
Smoke Detector
Smoke Detector Alarm During Test: Not Present
Smoke Detector Condition:
Not Present
The Inspector observed that a smoke detector was not present. It is recommended that a qualified RV technician install one before the RV is occupied.

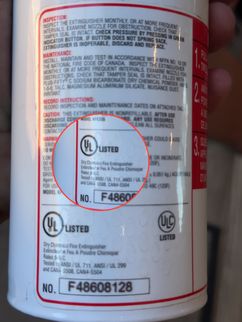

Fire Extinguisher
Fire Extinguisher - Size: 5 B:C
Fire Extinguisher - Brand: Kidde
Fire Extinguisher - Secure in Bracket: Yes
Fire Extinguisher - Mounted within 24 Inches of Entrance Door: Yes
Fire Extinguisher - Gauge Indicates Charged State: Yes
Fire Extinguisher Condition:
Acceptable
Overview - 5 B:C Fire Extinguisher
Appliances: Kitchen
Refrigerator
Refrigerator - Type: RV Helium / Hydrogen Absorption
NOTE: If the RV has an absorption refrigerator, it must be in operation for at least 12 hours to allow for accurate temperature readings in the freezer and refrigerator compartments.
NOTE: This inspection may not reveal a problem if the refrigerator is not powered on for the minimum recommended time.
Refrigerator - Brand: NORCOLD
Refrigerator - Model #/ Serial #: Model# N10LXL, S/N- 28939763
Refrigerator - Cooling Source(s): 120 Volts AC, Propane
Refrigerator - Operates on all Available Sources: Yes
Refrigerator - Control Panel Location: Between Doors
Refrigerator - Control Board:
Acceptable
Refrigerator - Has Unit been Running 12 + Hours: Yes
Refrigerator - Door Latch Secure: Yes
Refrigerator - Current Refrigerator Temperature: 30 Degrees F
Refrigerator - Freezer Current Temperature: 10 Degrees F
Refrigerator - Odor Detectable in Freezer: No
Refrigerator - Odor Detectable in Refrigerator: No
Refrigerator - Does Inside Light Work: No
Refrigerator - Thermostat Sensor Control Mounted on Fins: Yes
Refrigerator - Thermostat Sensor Type: Adjustable
Refrigerator - Front Side Door Panels:
Acceptable
Refrigerator - Front Side Door Frame:
Acceptable
Refrigerator - Inside Freezer Walls:
Acceptable
Refrigerator - Ice Maker:
Not Present
Refrigerator - Freezer Shelves / Door Racks:
Acceptable
Refrigerator - Inside Walls:
Acceptable
Refrigerator - Shelves / Door Racks:
Acceptable
Refrigerator - Crisper Trays and Drawers:
Acceptable
Refrigerator - Recall Installed (Back of Refrigerator): Not Required
Refrigerator - Location of Vent Panels: One on the Sidewall, One on the Roof
Refrigerator - Backside Cooling Coils / Proper Venting:
Acceptable
The inspector observed that the refrigerator light does not work.

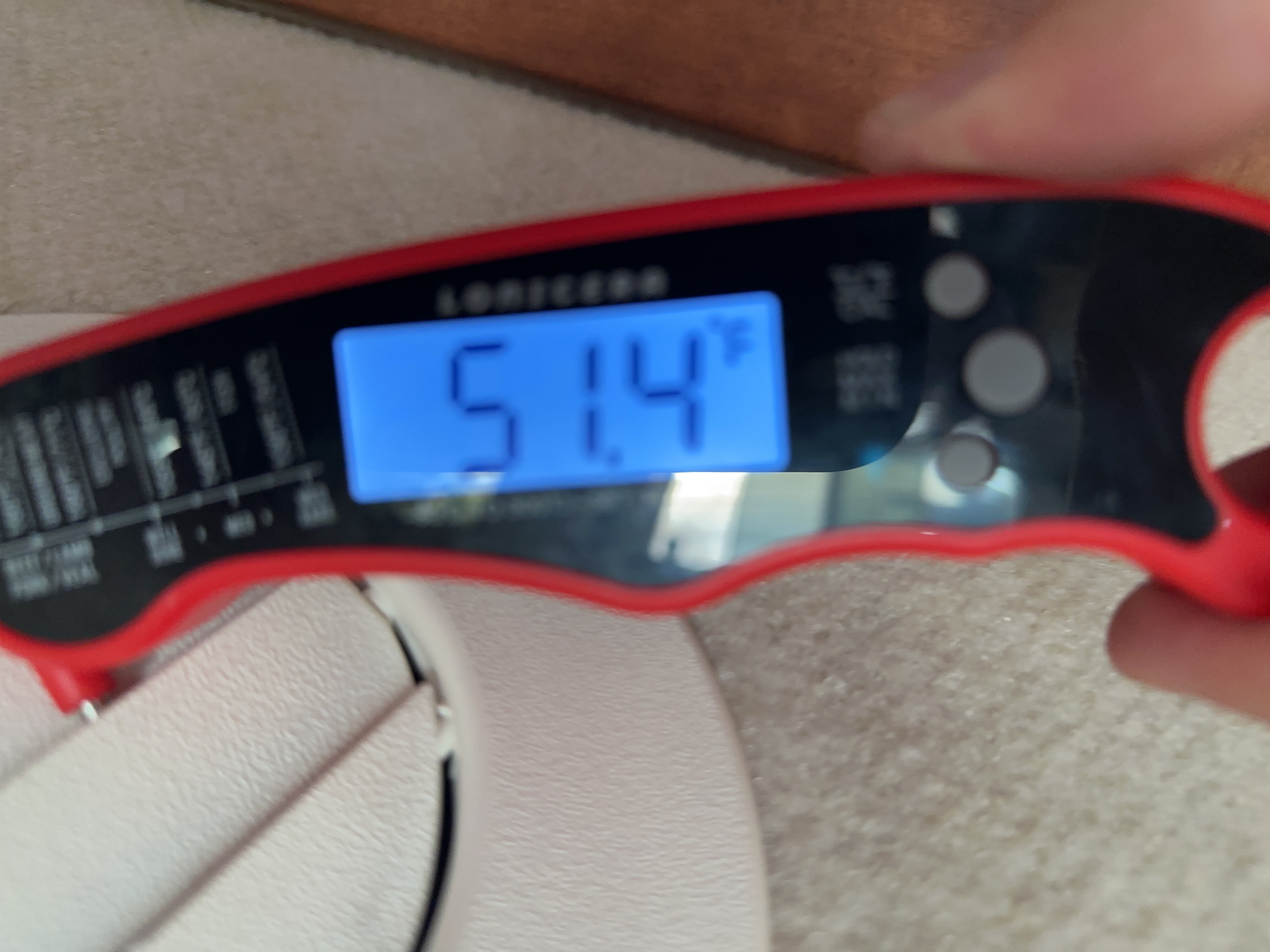

Refrigerator / Freezer Temps
Cooktop / Oven
Cooktop - Brand: Dometic
Cooktop - Model # / Serial #: Serial # Not Visible, Model # Not Visible
Cooktop - Rubber Grommets for Stovetop Grate: Yes
Cooktop - Burner Ignition Source: Auto Piezo Ignition - Push Button Creates a Repetitive Spark
Cooktop - All Burners Operate: Yes
Cooktop - Condition:
Acceptable
Cooktop - Condition of Knobs / Controls:
Acceptable
Cooktop - Burner Grate / Cover Condition:
Acceptable
Cooktop - Color of Burner Flame:
Acceptable
Oven - Combined With Cooktop: Yes
Oven - Brand: Dometic
Oven - Burner Ignition Source: Piezo Ignition - Turn Knob To Create Spark
Oven - Burner Lights: Yes
Oven - Condition:
Acceptable
Oven - Racks Condition:
Acceptable
Oven - Color of Burner Flame:
Acceptable

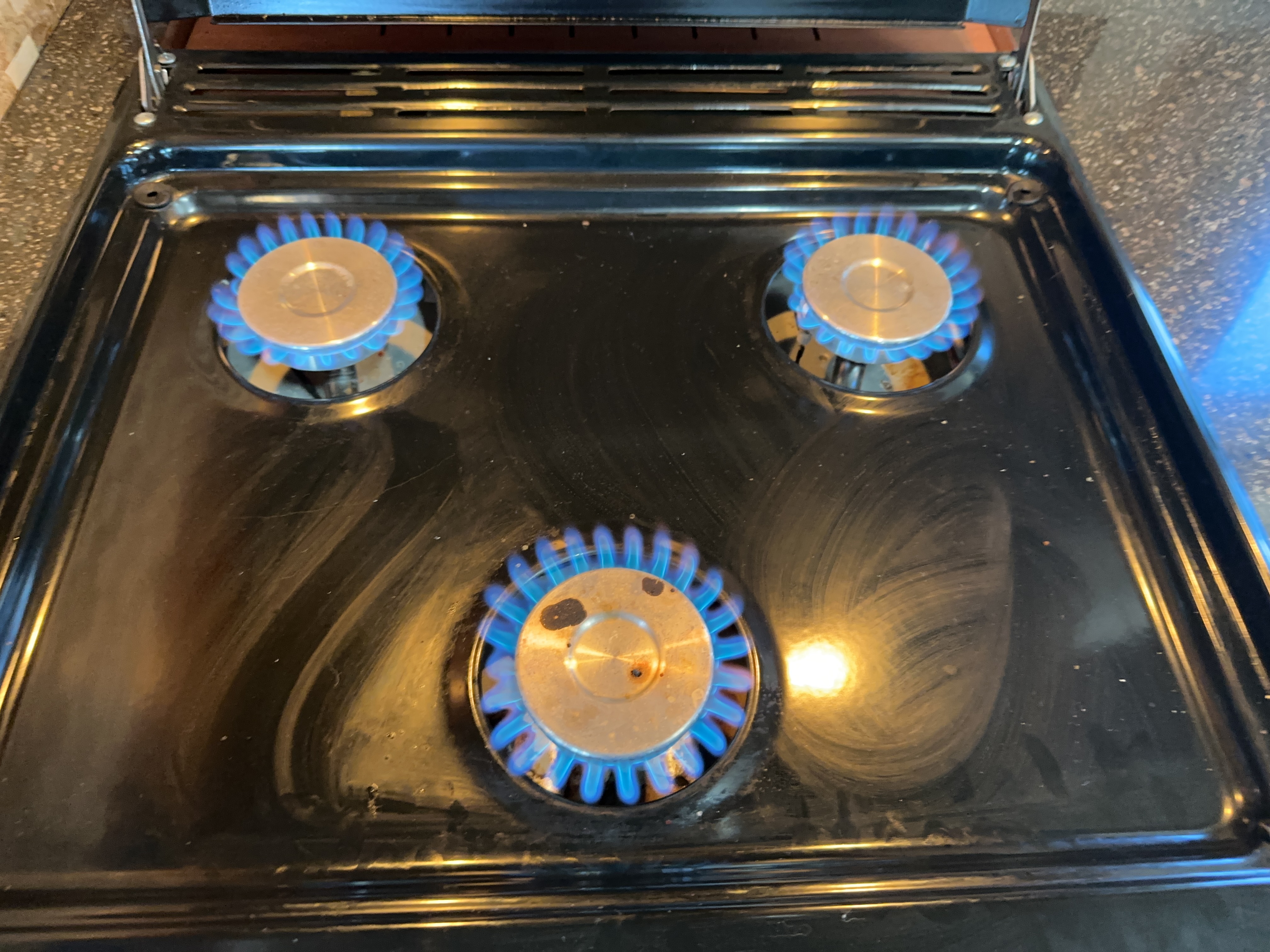

Overview - Cooktop / Oven
Microwave
Microwave - Brand: HIGH POINT
Microwave - Model # / Serial #: EC942KIW / 1801M000398
Microwave - Type: Microwave / Convection
Microwave - Output Wattage Rating: 1500 Watts
Microwave - Rack and Turntables are Installed: Yes
Microwave - Temperature of Water after 60 Seconds: 130.3 Degrees F
Microwave - Convection Mode - Fan Blower Comes On: Yes
Microwave - Convection Mode - Verified Temp of 350 Degrees: Yes
Microwave Condition:
Acceptable
Cooktop Exhaust Vent - Part of Microwave: Yes
Cooktop Exhaust Vent - Venting: Re-Circulates Air
Cooktop Exhaust Vent Condition:
Acceptable
Cooktop Exhaust Vent - Fan Speeds Condition:
Acceptable

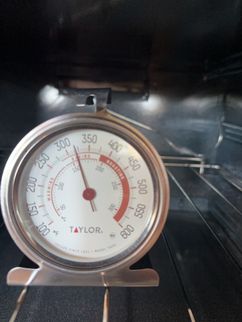

Microwave / Convection Oven Temperatures
Appliances: Other
Water Heater
Water Heater - Brand: Suburban
Water Heater - Model # / Serial #: SW10del, 182016020
Water Heater - Rubber Grommet Around Gas Line Sealed:
Acceptable
Water Heater - Type: Tank Type
Water Heater - Heat Source(s): Electric, LP
Water Heater - Operates on all Sources: Yes
Water Heater - Type of Ignition: Direct Spark (DSI)
Water Heater - Water Output Temperature: 124.7 F
Water Heater - Leaks at Pressure Relief Valve: No
Water Heater - Proper Drain Plug Installed: Yes
Water Heater - Bypass Valves in Correct Position: Yes
Water Heater - Dauber Screens Installed: Yes
Hydronic Coolant Analysis Performed: No
Water Heater - Condition of Burner Assembly Area:
Acceptable
Atwood/Suburban water heaters require an anode rod, which requires replacement. The inspector observed that this coach did not have an anode rod installed as required by the manufacturer. A qualified RV technician is recommended to install the anode rod.
Dauber screens have been installed. It is recommended that the owner's manual for the appliance be consulted to ensure the manufacturer approves the use of them. For certain manufacturer's a dauber screen can void the warranty.
Water Heater Data Plate
Furnace
Furnace - Brand: Suburban
Furnace - Model # / Serial #: Model # Not Visible, Serial # Not Visible
Furnace - Operates: Yes
Furnace - Floor Vents Blocked or Covered: No
Furnace - Warm Air Discharge Out of Vents - Proper Return Air Flow: Yes
Furnace - Dauber Screens Installed: No
Furnace Air Intake / Exhaust Area Condition:
Acceptable
Ceiling Fan
Ceiling Fan - Operation: All Features Work
Ceiling Fan - Condition Motor and Blades:
Acceptable
Appliances: Air Conditioners
NOTE:
-The Delta-T average acceptable performance range is 14 to 22 degrees (8 to 12 degrees C). In high humidity areas the range may be lower, 12 to 16 degrees F (7 to 9 degrees C) and in desert areas it may be higher 23 to 26 degrees F (13 to 15 degrees C).
Air Conditioners - rear
Air Conditioner - Brand: Airxcel / Coleman
Air Conditioner - Thermostatic Controls: Dual with Furnace
Air Conditioner - Options: AC Only
Air Conditioner - Delta-T: Degrees F, 29.2
Air Conditioner Condition:
Acceptable
Air Conditioner - Filter Condition:
Acceptable
Airconditioner - Exhaust Condition:
Acceptable

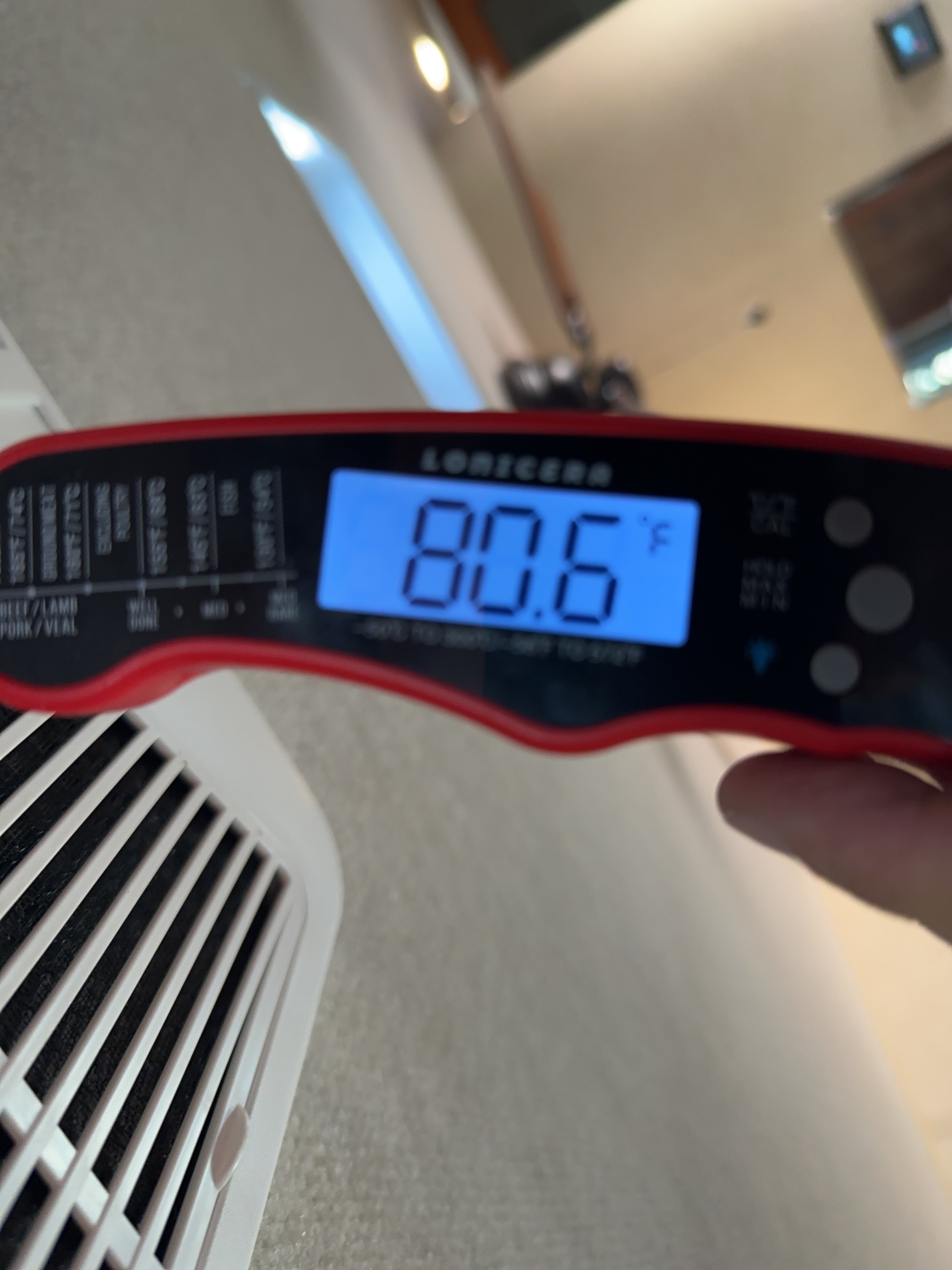

AC Delta-T:
Interior
Interior Photos

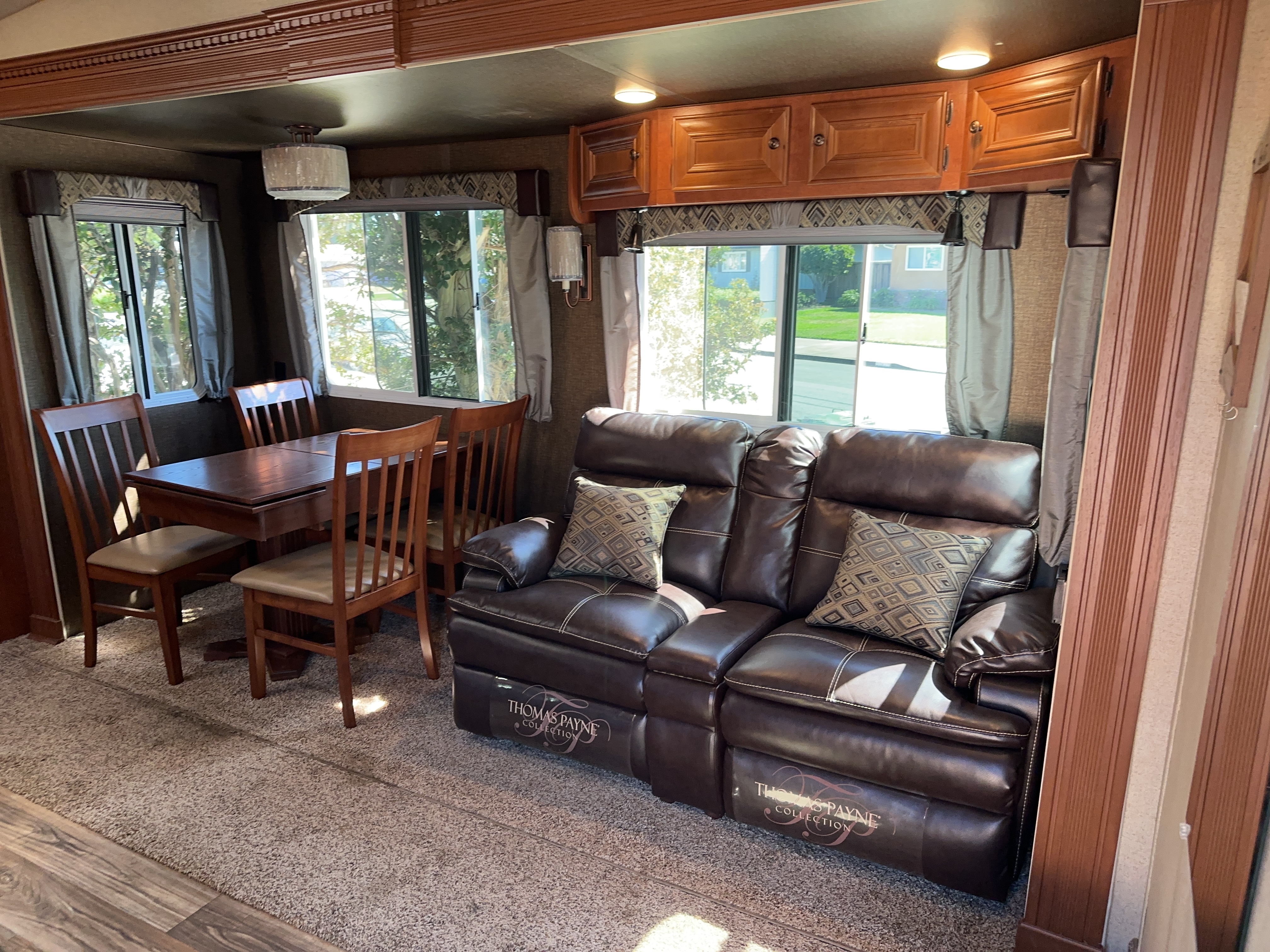

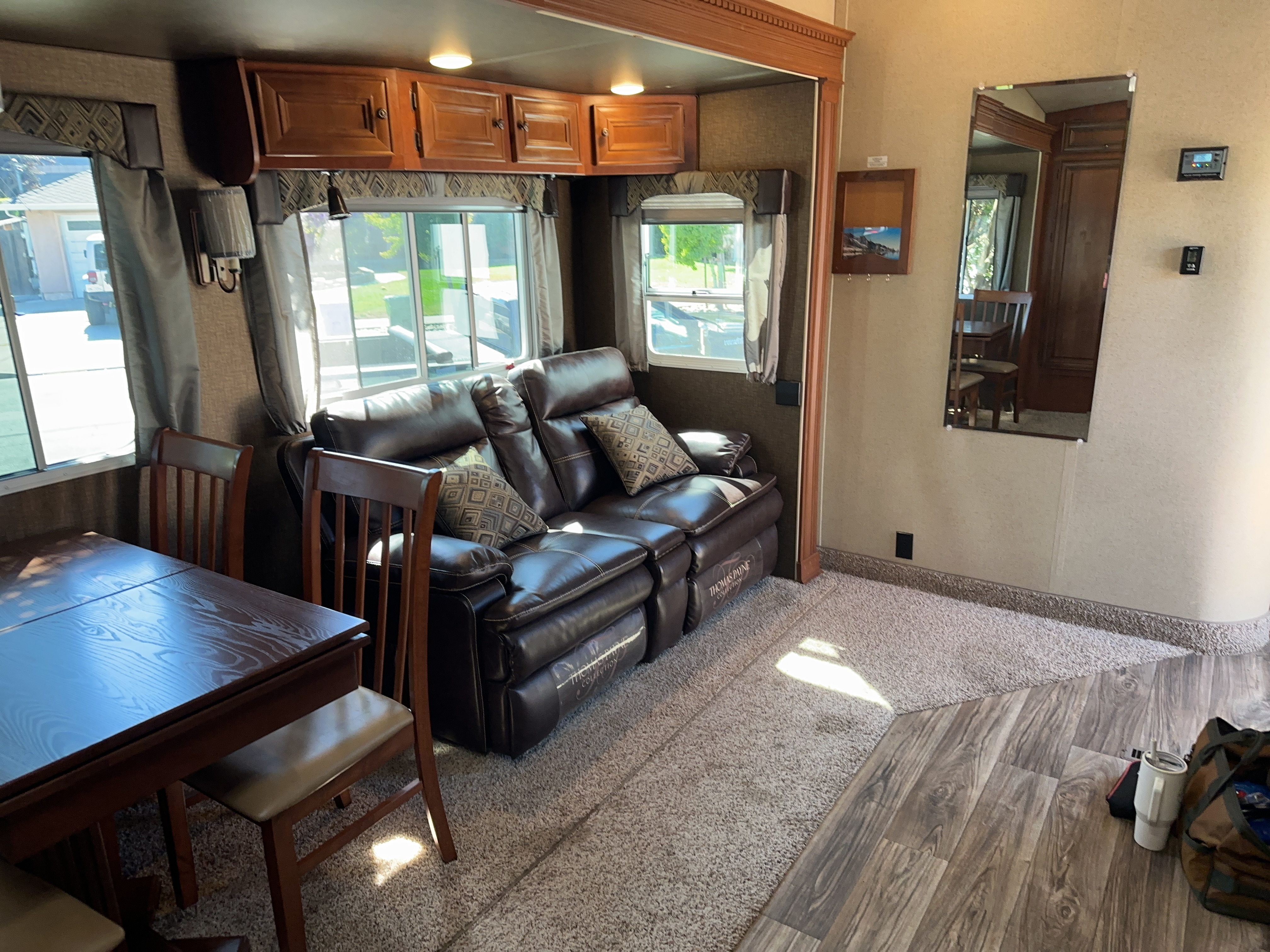

Interior Photos:
Yes
Interior Photos:
Evidence of Animals:
No
Odor Detected in RV:
No
Ceiling
Ceiling - Type: Fabric
Ceiling Inspected:
Yes
Ceiling - Panels Loose:
No
Ceiling - Discoloration or Stains:
No
Ceiling - Trim Work Missing or Damaged:
No
Ceiling - Condition:
Acceptable
Ceiling Vents and Skylights
Ceiling Vents - Type: Electric Vent with Fan - Remote Control, Electric Vent with Fan - Thermostatic Controls
Ceiling Vents and Skylights - Thermostatic Controls and Switches Work:
Yes
Ceiling Vents - All 12 Volt DC Fans Operate:
No
Ceiling Vents - All 120 Volt AC Fans Operate:
Yes
No
Ceiling Vents and Skylights - Stains Around Roof Vents and Skylights:
No
Ceiling Vents and Skylights - Condition:
Acceptable
Ceiling Vents and Skylights - Trim Ring Around Vents and Skylights:
Acceptable
The remote for the kitchen vent fan has corroded and broken contacts and does not function. It is recommended that this be replaced.
Lights
Lights - Ceiling Light Bulb Type: T10 LED
Lights and Light Fixtures - Do all Lights Function:
Yes
Lights and Light Fixtures - Wall Mounted Light Fixtures:
Yes
Lights and Light Fixtures - Rope Lights:
Not Present
Lights and Light Fixtures - Spot Lights:
Not Present
Lights and Light Fixtures - Floor Lights:
Not Present
Lights and Light Fixtures - Entry Lights inside RV:
Yes
Lights and Light Fixtures - Missing or Broken Lenses:
No
Lights and Light Fixtures - Missing Shades or Broken Covers:
No
Lights and Light Fixtures - Condition:
Acceptable
Doors / Privacy Curtains / Screens
Interior Doors - Condition:
Acceptable
Interior Doors - Operation:
Acceptable
Privacy Curtains / Screens - Condition:
Not Present
Privacy Curtains / Screens - Operation:
Not Present
Walls
Walls Inspected:
Yes
Walls - Panels Loose:
No
Walls - Water Damage Wall Panels:
No
Walls - Panels Discolored or Stained:
No
Walls - Soft Spots on Walls:
No
Walls - Trim Work - Condition:
Acceptable
Walls - Damage Repairs Performed:
No
Walls - Holes or Wall Repairs:
No
Walls - Condition:
Acceptable
Windows, Blinds and Shades
Emergency Exit Installed:
Yes
Emergency Exit Operational:
Yes
Windows - All Windows Operational:
Yes
Windows - Condition:
Acceptable
Window Coverings / Blinds - Type: Accordion - Not Attached at Bottom
Blinds and Shades - Operational:
Yes
Blinds and Shades - Condition:
Acceptable
Emergency Exit(s):
Flooring
Flooring - Type(s):
Carpet
Simulated Plank
Flooring - Floor Panels Loose:
No
Flooring - Floor Covering Discolored or Stained:
No
Flooring - Water Damage:
No
Flooring - Carpet Worn:
Not Present
Flooring - Soft Spots in Floor:
No
Flooring - Previous Repairs Performed:
No
Flooring - Condition:
Acceptable
Kitchen Sink
Kitchen Sink - Style: Double Bowl
Kitchen Sink - Type: Stainless
Kitchen Counter Top Damage:
No
Kitchen Sink - Faucet Working:
Yes
Kitchen Sink - Faucet Leaks at Stem:
No
Kitchen Sink - Water Damage Under Sink:
No
Kitchen Sink - P-Trap Holds Water:
Yes
Kitchen Sink - Hot and Cold Water Available:
Yes
Kitchen Sink - Condition:
Acceptable
Toilet
Toilet - Type: Gravity Flush
Toilet - Water Leaks:
No
Toilet - Indication of Previous Damage or Repair:
No
Toilet - Bowl Holds Water:
Yes
Toilet - Mounting Problems:
No
Toilet - Paper Holder:
Present and Mounted
Toilet - Operation and Condition:
Acceptable
Shower
Shower / Tub - Style: Shower Stall
Shower / Tub - Stains in Stall / Tub:
No
Shower / Tub - Water Damage or Leaks:
No
Shower / Tub - Soap Dish in Place:
Yes
Shower / Tub - Towel Racks in Place:
Yes
Shower / Tub - Curtain with Rod:
Not Present
Shower / Tub - Condition:
Acceptable
Shower / Tub - Door Type:
Glass Door(s)
Shower / Tub - Door Latching Function:
Yes
Shower / Tub - Door and Frame and Seals Condition:
Acceptable
Shower/Tub - Operation and Condition:
Acceptable
Bathroom Sink
Bathroom Sink - Style: Single Bowl
Bathroom Sink - Type: Stainless
Bathroom Sink - Faucet Working:
Yes
Bathroom Sink - Faucet leaks at Stem:
No
Bathroom Sink - Water Damage Under Sink:
No
Bathroom Sink - P-Trap Holds Water:
Yes
Bathroom Sink - Holds Water:
Yes
Bathroom Sink - Hot and Cold Water Available:
Yes
Bathroom Sink - Operation and Condition:
Acceptable
Furniture
Chairs
Chairs Inspected: Yes
Chairs - Signs of Excess Wear: No
Chairs - Damages/ Repairs/ Replaced: No
Chairs - Fabric Tears/ Separation: No
Chairs - Fabric Match Decor: Yes
Chairs - Condition:
Acceptable
Sofa
Sofa(s) Inspected: Not Present
Dinette / Table / Chairs
Dinette / Table / Chairs - Inspected: Yes
Dinette / Table / Chairs - Sign of Excess Wear: No
Dinette / Table / Chairs - Damages/ Repairs/ Replaced: No
Dinette / Table / Chairs - Fabric Tears/ Separation: No
Dinette / Table / Chairs - Fabric Matches Decor: Yes
Dinette / Table Area Converts to Bed: No
Dinette / Table / Chairs - Condition:
Acceptable

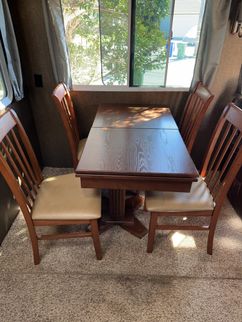

Dinette / Table / Chairs Photo:
Beds
Beds Inspected: Yes
Beds - Signs of Excess Wear: No
Beds - Fabric Damages/ Repairs/ Replaced: Not Present
Beds - Fabric Tears/ Separation: Not Present
Beds - Mattress Type: Pillow Top
Beds - Covers Match Decor: Not Present
Beds - Condition:
Acceptable

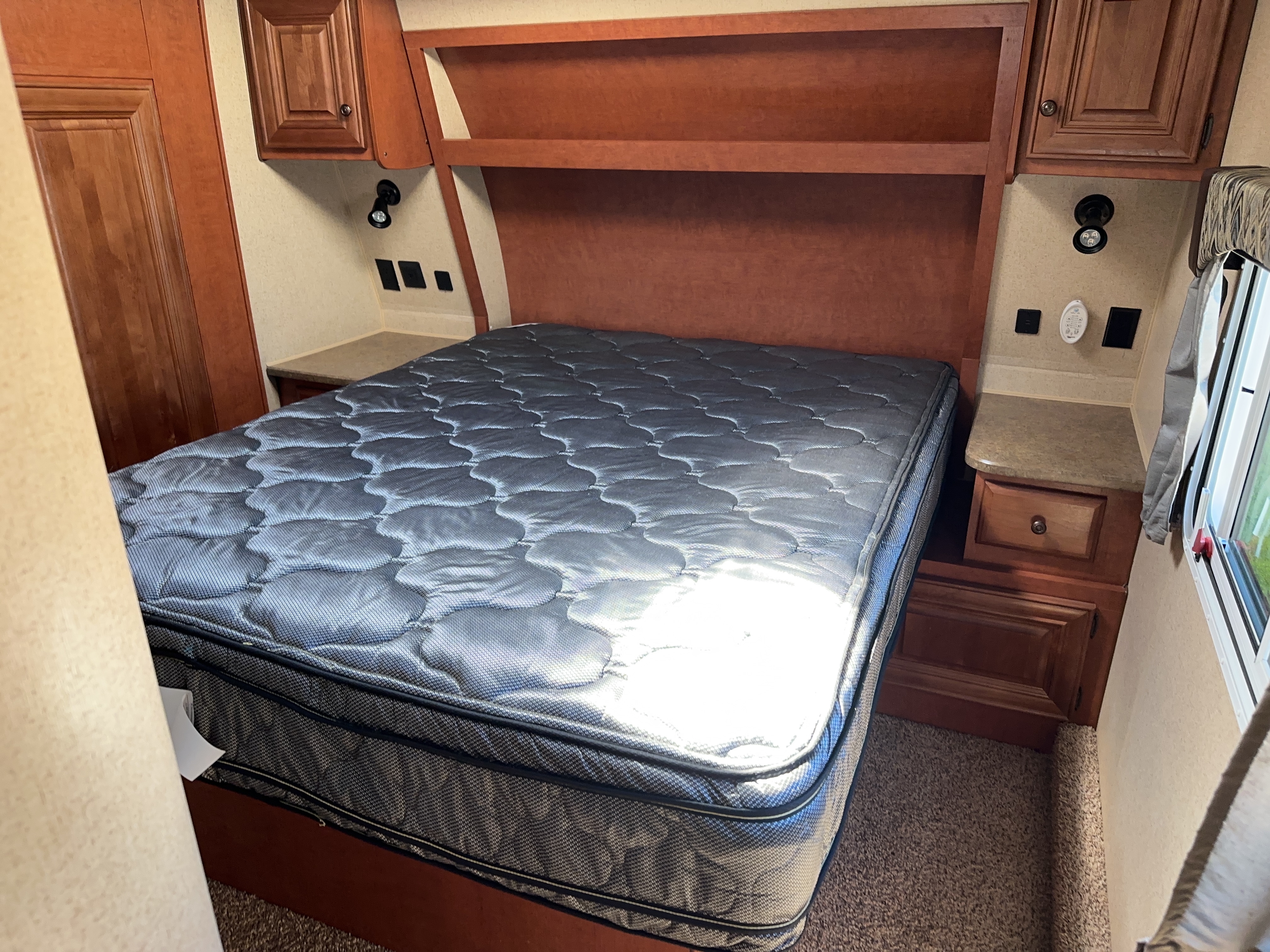

Master Bed:
Cabinets
Cabinets / Dressers / Closets / Pantries Inspected: Yes
Cabinets / Dressers - Types of Hinges: Exposed
Cabinet - Type of Latch: Grabber Catch
Cabinets / Dressers - Counter Top Damage or Scratches: No
Cabinets / Dressers / Closets / Pantries - Door Damage or Scratches: No
Cabinets / Dresser / Closets / Pantries - Previous Repairs: No
Cabinets / Dressers / Closets / Pantries - Damage or Scratches: No
Cabinets / Dressers / Closets / Pantries - Wood Rot or Broken: No
Cabinets / Dressers / Closets / Pantries - Condition:
Acceptable
Electronics
TV - Front
Unit - Brand: Vizio
Unit - Model # / Serial #: Serial # Not Visible, Model # Not Visible
Antenna Power Booster Operates: Yes
TV Picks Up Local Channels: No
Remotes Operational: Not Inspected
Unit Works Properly: Yes
Unit Cleaned and Maintained: Yes
Unit Properly Mounted and Secured: Yes
TV - Living Room
Unit - Brand: Vizio
Unit - Model # / Serial #: Model # Not Visible, Serial # Not Visible
Antenna Power Booster Operates: Not Inspected
TV Picks Up Local Channels: No
Remotes Operational: Yes
Unit Works Properly: Yes
Unit Cleaned and Maintained: Yes
Unit Properly Mounted and Secured: Yes
Blue-Ray DVD Player
Unit - Brand: Jensen
Unit - Model # / Serial #: Model # Not Visible, Serial # Not Visible
Remotes Operational: No
Unit Works Properly: Yes
Unit Cleaned and Maintained: Yes
Unit Properly Mounted and Secured: Yes
Report Attachments
PDFs
ATTENTION: This inspection report is incomplete without reading the information in these links/attachments. Note: If you received a printed version of this page and did not receive a copy of the report online, please get in touch with your inspector for a printed copy of the attachments.
